Issue description

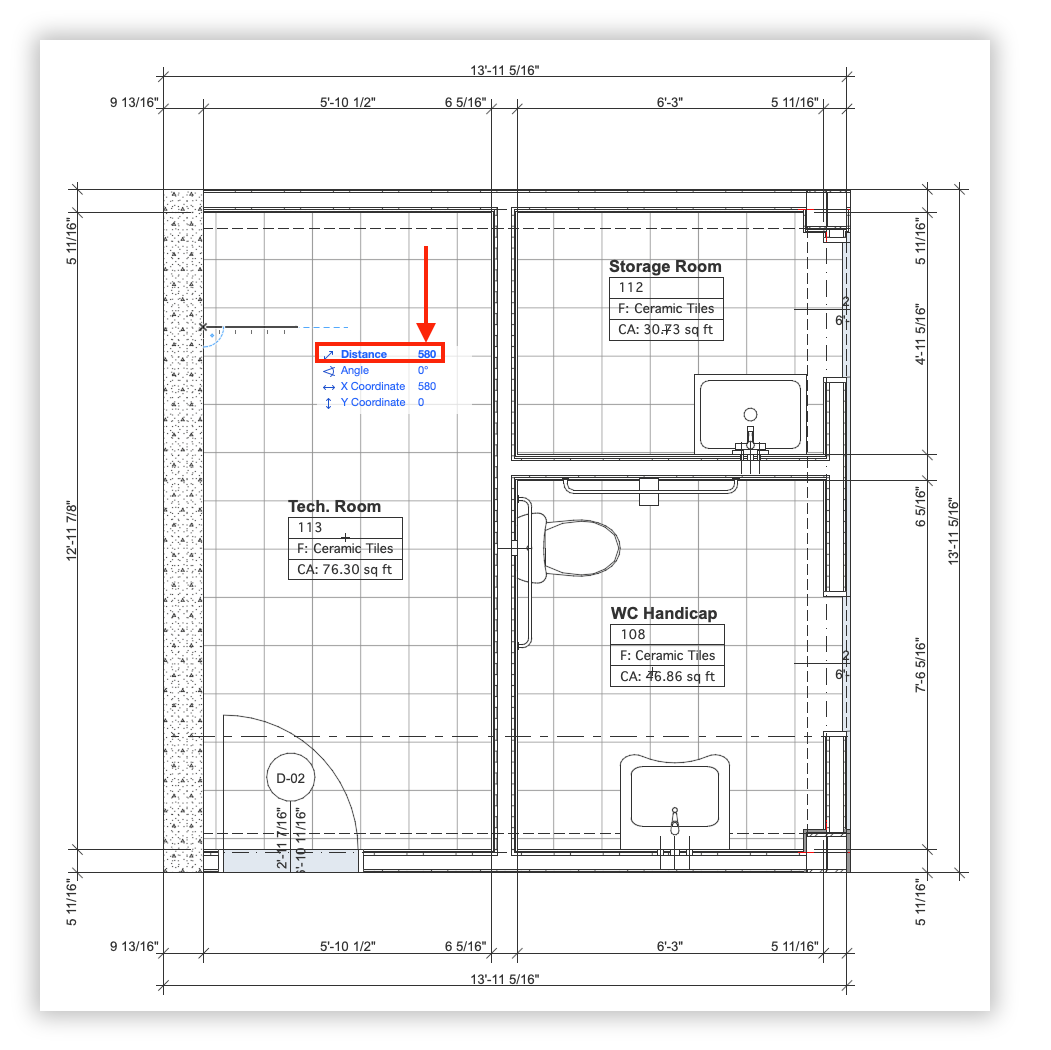

The project I am working on requires me to use the Imperial system. While I have already switched the dimensions from metric to imperial, the working units remain in metric. How can I change the working units to Imperial for consistency throughout the project?
Solution
There is a separate setting for changing the Working Units.

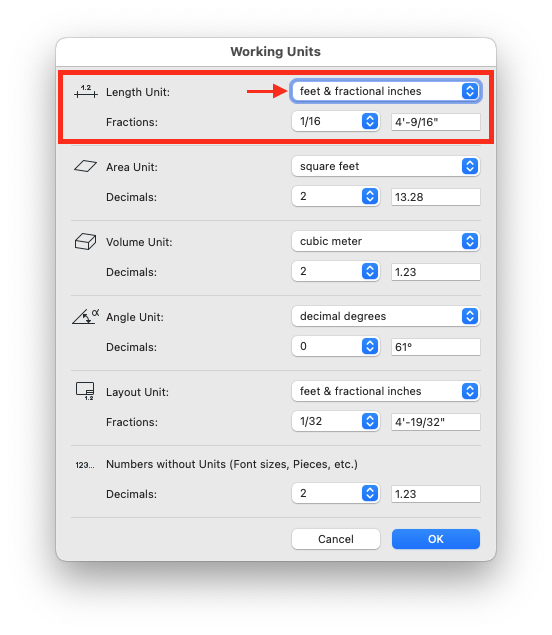

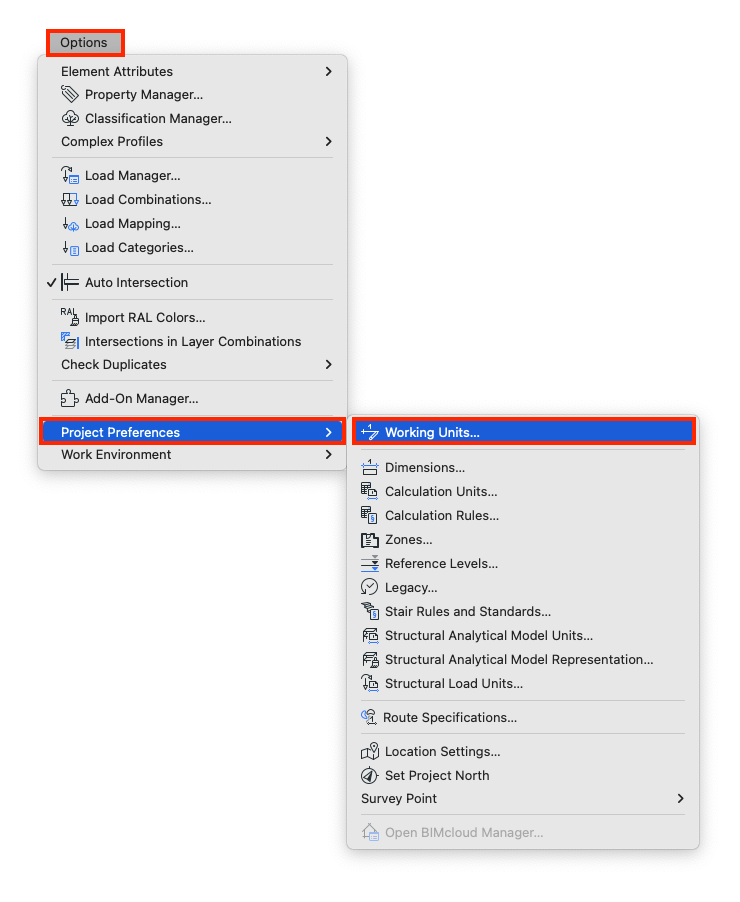

To change this, go to Options > Project Preferences > Working Units.In the Working Units dialog, change the Length Unit to “Feet & Fractional Inches” then set the Fraction value. Click OK to confirm.
Tip: For a more consistent working environment, it's recommended to adjust all units (e.g., Area, Volume, etc.) to Imperial to avoid discrepancies in measurement.
