Issue Description
How can I add custom text to a Schedule?
Solution
There are two ways to add a Custom text field in Archicad Schedules.

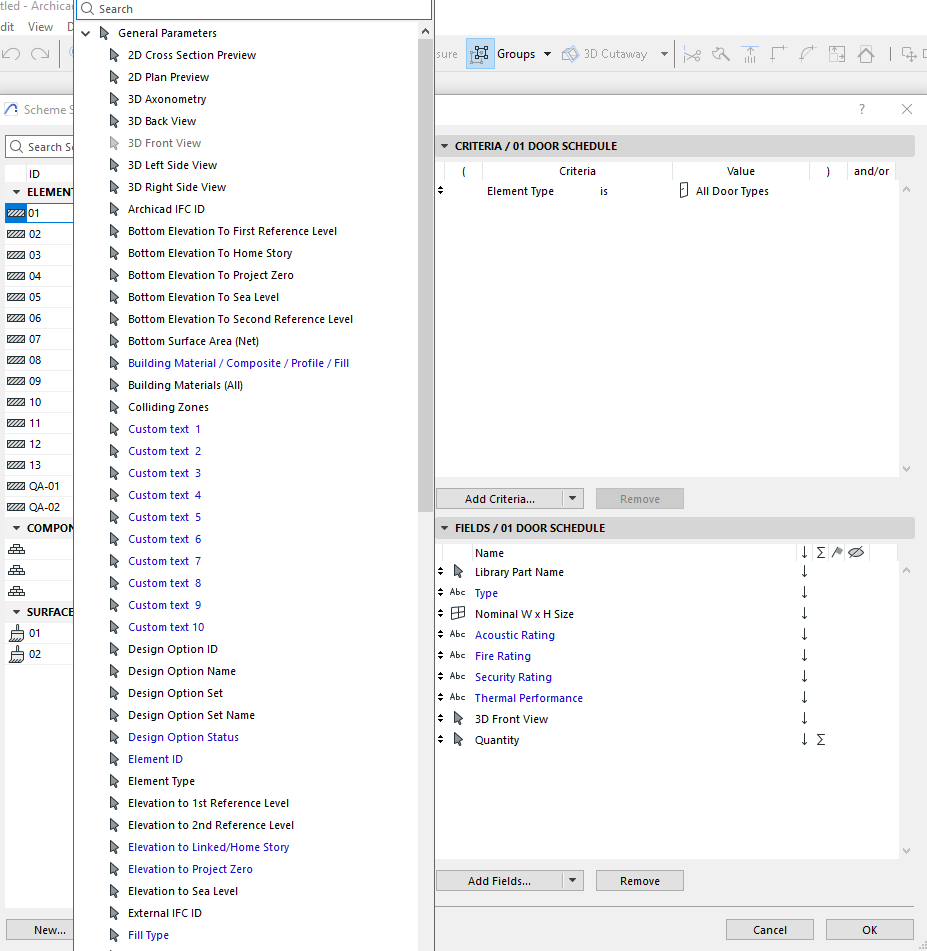

1: In the “Add fields” button in the Scheme settings, search for “Custom text”. There are 10 available Custom Text fields that can be maximized in a schedule.
2: By the use of Custom Property. A more proper way of adding custom fields in a schedule is by creating a custom property that can be assigned to specific Archicad Classifications. To do this:
-

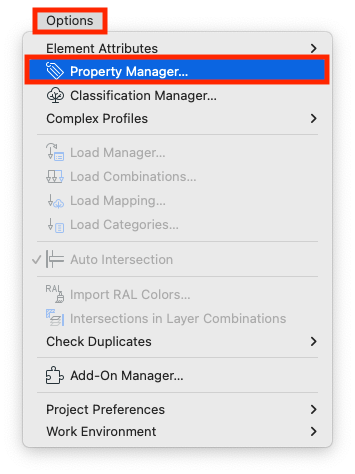

- Go to Options > Property Manager.
-

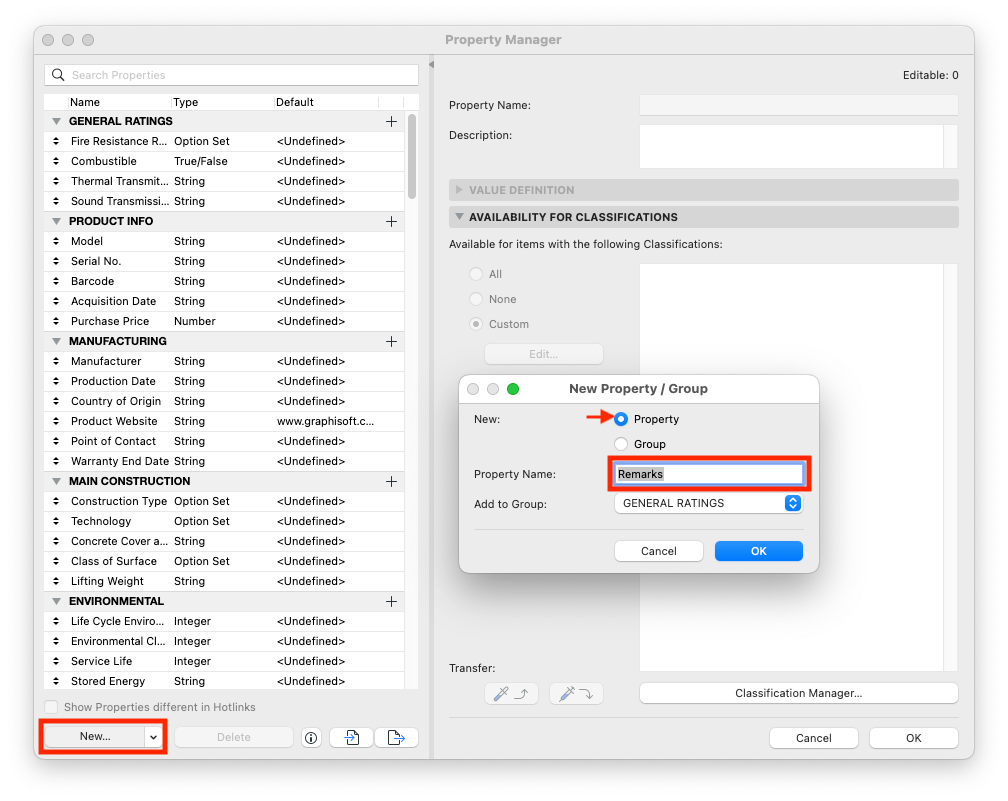

- In the Proper Manager, select New… Put the correct Property Name then click OK.
-

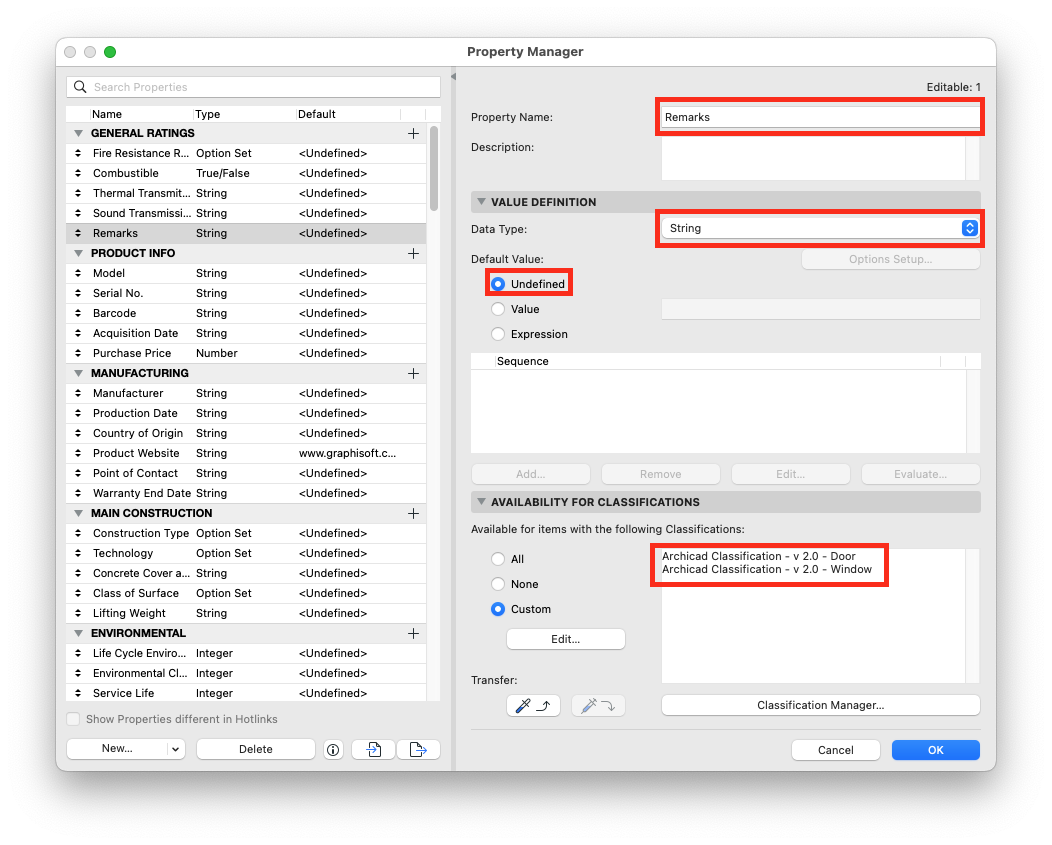

- Set the Data type to “String” with the Default Value to “Undefined”
- Set it’s availability for classifications to Doors and Windows. Click OK to save.
-
- Back to Schedule Scheme Settings, in the Add fields section, search for the new property to add in the Schedule.
