Issue Description
The material cross-hatching patterns on the floor plan do not appear in the section views.
Solution
Check the view settings and section settings
-

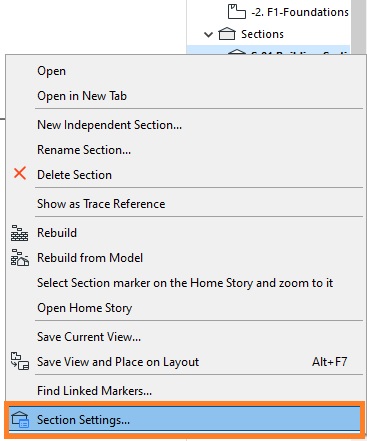

Check the View/Section Settings:
- Right-click on the view or section.
- Open the "View Settings..." or "Section Settings..." menu.
-

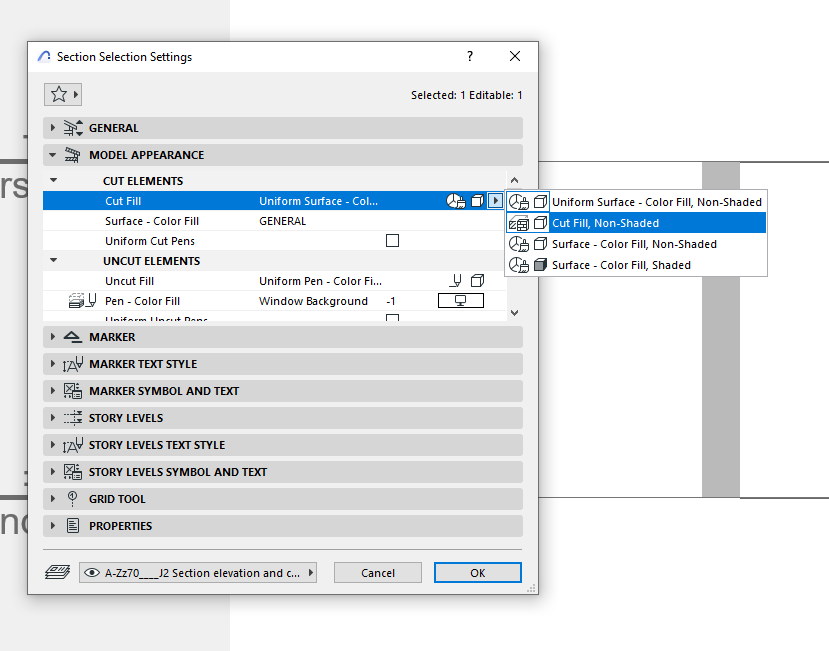

Adjust Model Appearance for Cut Elements:
- Go to the "Model Appearance" tab.
- Ensure that for Cut Fill hatch pattern is set to Cut Fill, none shaded.
- Disable the option for Uniform Cut Pens.
