Issue Description
I often use the Marquee tool to cut sections of my model for a clearer view in the 3D window. However, I find myself repeatedly redrawing to showcase different parts of the model. Would using the 3D Cutaway be a more efficient solution for this?
Solution
The 3D Cutaway is a virtual plane that you can position within your 3D model to "cut" through the geometry, providing a clear view of the internal structure or specific sections. When activated, it temporarily hides the portions of the model on one side of the plane, allowing you to see and work on the remaining part as if it were sliced open.
To use the 3D Cutaway in Archicad, follow these steps:
- Open the 3D View: Start by opening your project in the 3D window.
-

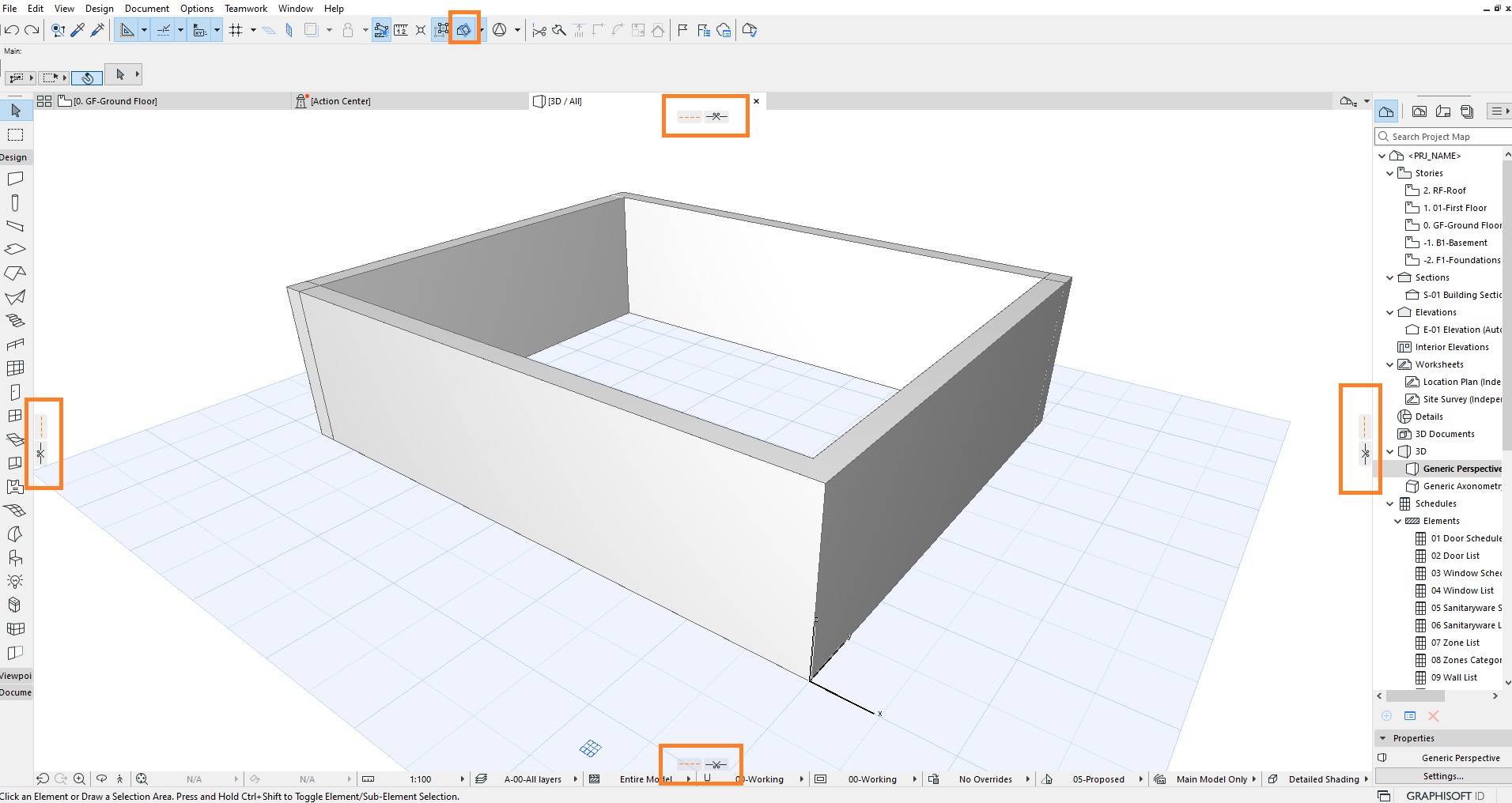

Set up the plane by defining its position and orientation:
- Choose the Cutting Plane Direction: You can choose to cut horizontally or vertically. Archicad allows you to align the cutting plane parallel to any standard view (Top, Front, Side) or custom orientation.
- Position the Cutting Plane: Drag the cutting plane into position within the 3D view or specify the exact location using coordinates. You can adjust its placement to focus on the area of interest.
- Adjust the Plane Depth: Define the depth of the cut to control how much of the model is displayed beyond the cutting plane. This can be useful for focusing on specific layers or sections.

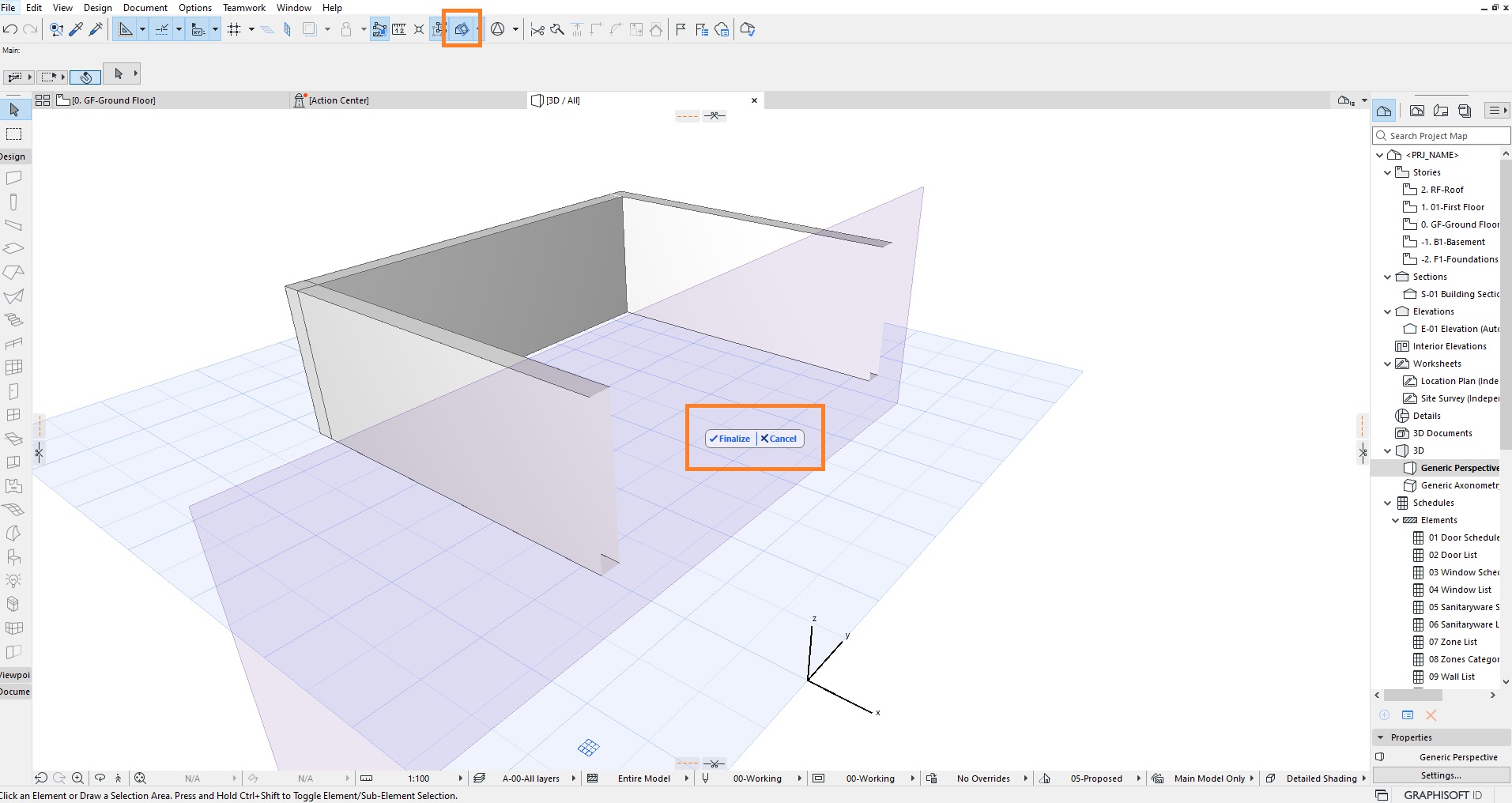

3. When the plane is in the correct position you can select Finalize to keep it in position
4. After positioning the 3D Cutting Plane, you can interact with it in various ways. Right-hand click the cutting plane to get the menu to appear.
- Move the Cutting Plane: Click and drag the cutting plane to reposition it dynamically within the model. This allows for real-time adjustments to explore different sections.
- Rotate the Cutting Plane: Rotate the cutting plane to slice through the model at different angles, providing various perspectives and views.
- Multiple cutting Planes: You can use multiple cutting planes to create more complex sections, such as intersecting planes to isolate specific volumes within the model.
