Issue description

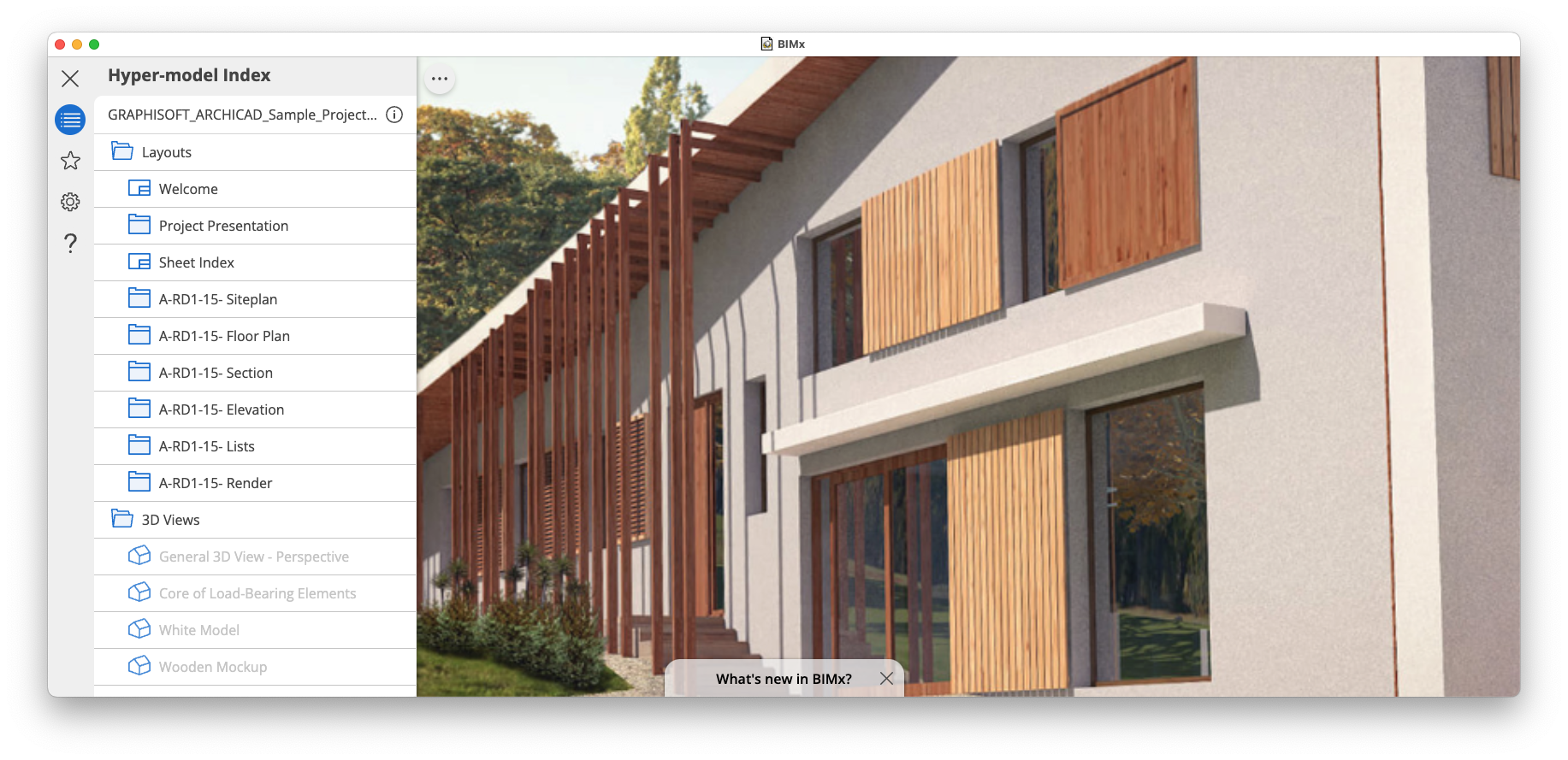

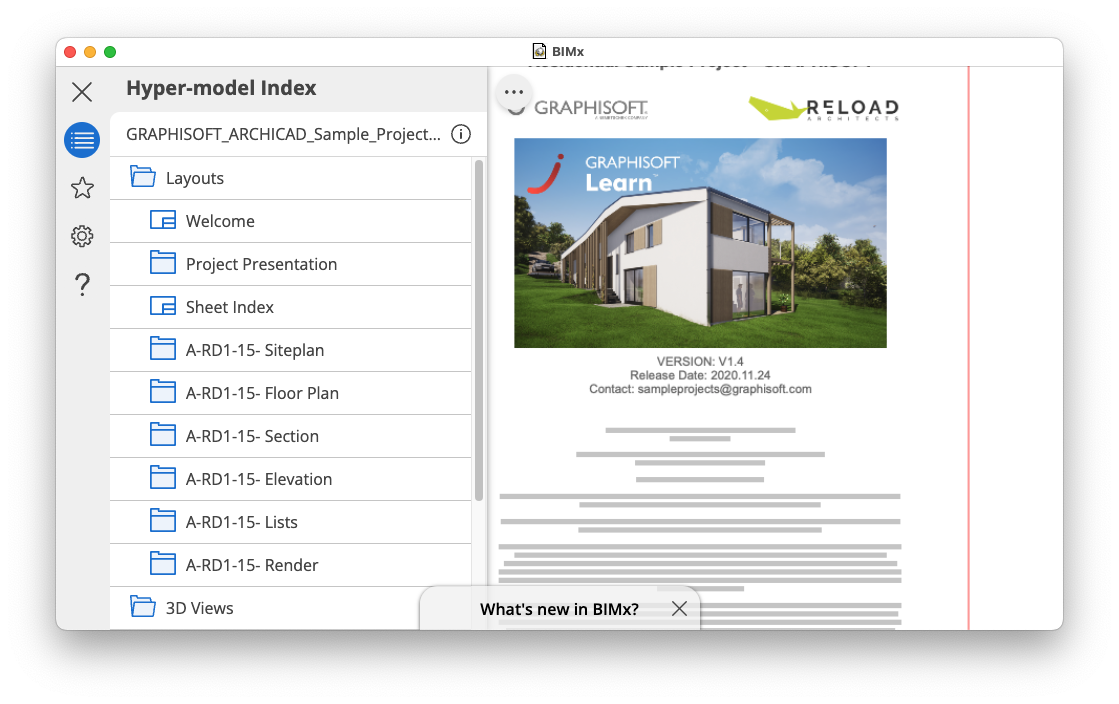

You open a BIMx model and can only see a blurry photo of your Layout sheet instead of a good looking perspective.
Solution
The preview image for BIMx projects is controlled through the Project Preview settings in the original Archicad file. The preview image is set from within the project and becomes embedded in the BIMx Hyper-model when published
TIP: BIMx Hyper-model Project Preview Image Is Cropped.
Set a new Project Preview
- Open your project file using Archicad.
- Navigate to File > Info > Project Preview & Architect Credits in BIMx
- In the Project Preview tab, choose any of the following:
- Paste from Clipboard - Copy & Paste any image like rendering that represents your project.
- Select a View Map - In the drop down menu, you can select a view map, either 3D View or Plan View that you want to show as Project Preview.
-
Browse - Manually browse for image in your file that you want to use.
- Click OK.
- Export the BIMx model via File > Publish BIMx Hyper-model.
