Issue description

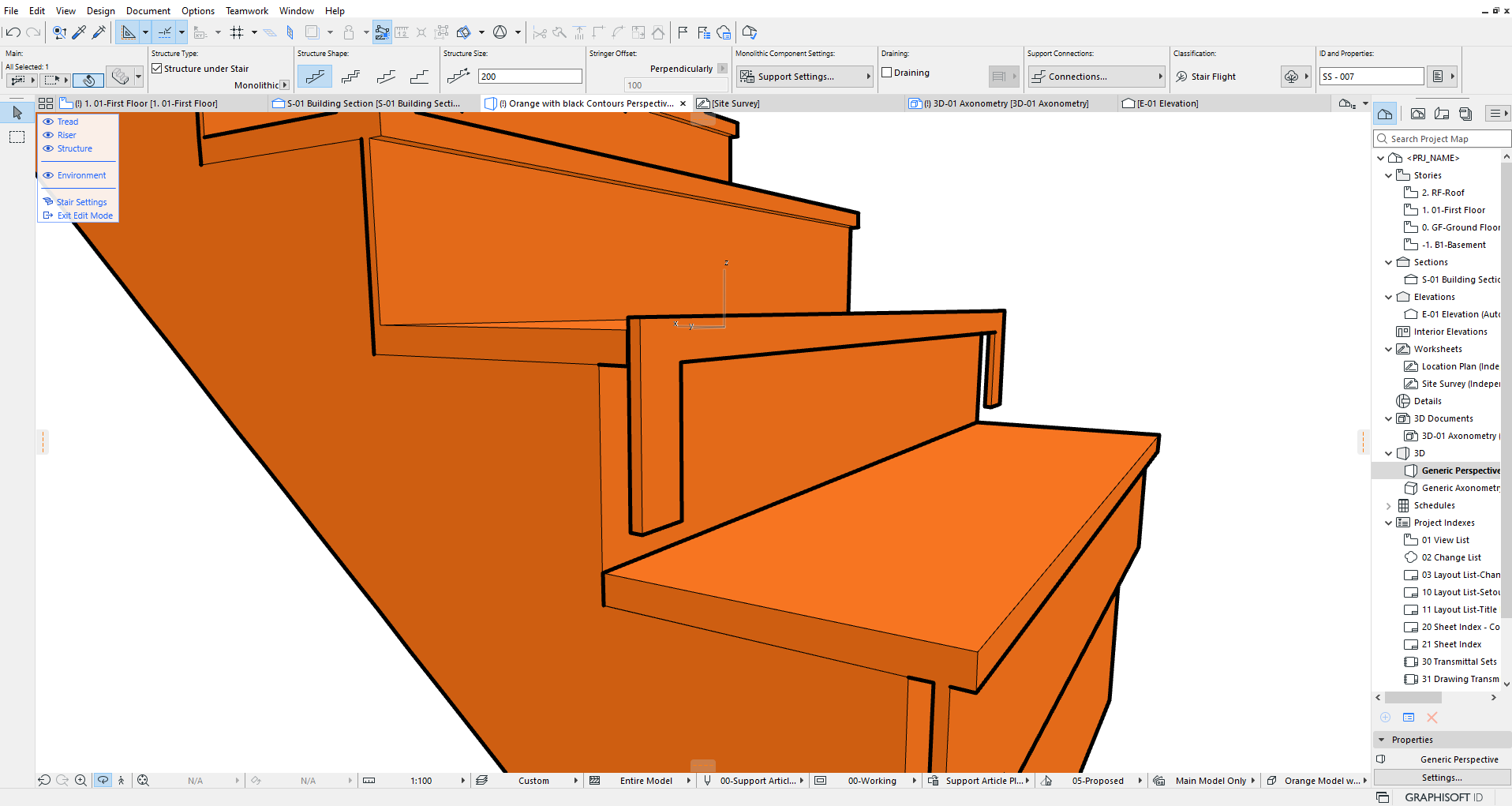

A custom riser has been successfully created, but difficulties are occurring when attempting to position it correctly within the design. Despite adjustments, the riser does not align as expected in the intended location.
Solution
Using basic Geometric Description Language commands, you can create an Offset parameter that allows you to precisely adjust and maneuver the tread into the correct position. This parameter will provide more control over the placement, helping you achieve accurate alignment of the custom riser.

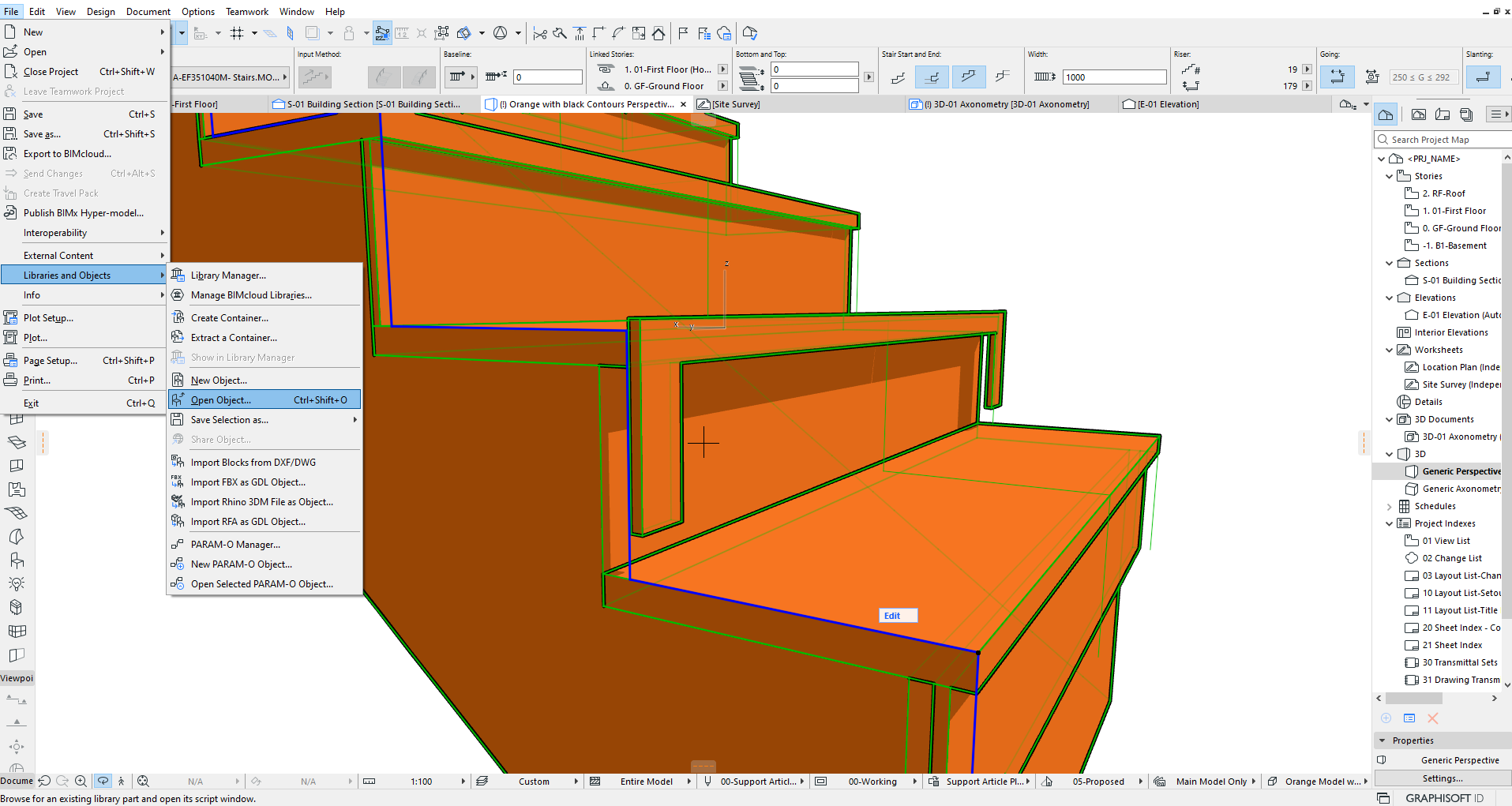

- Select the stair and go to File > Libraries and Object > Open Object

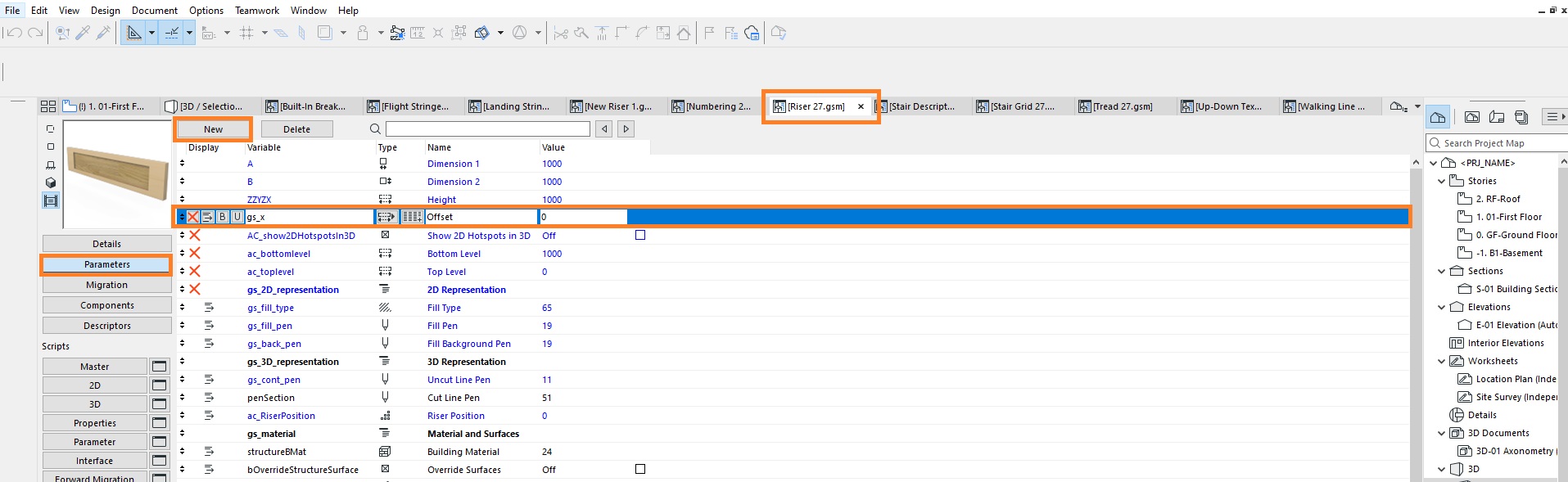

- Within the Parameters section for the riser, please add a new variable named "gs_x".

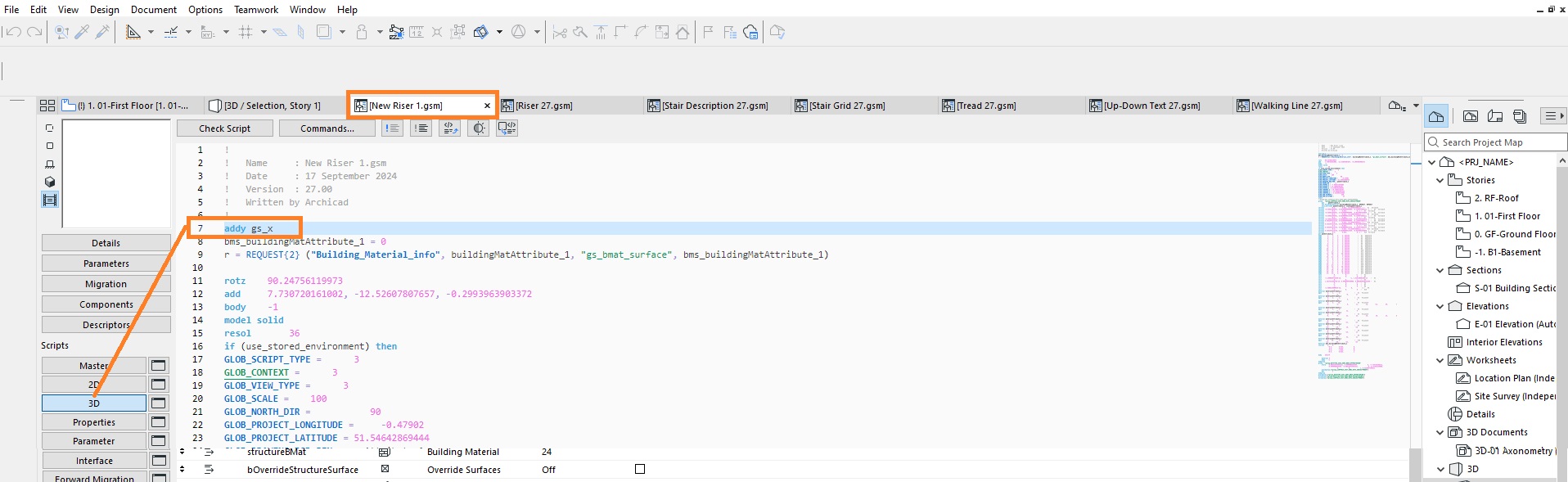

- Now open the 3D tab for your riser and insert the line "addy gs_x".

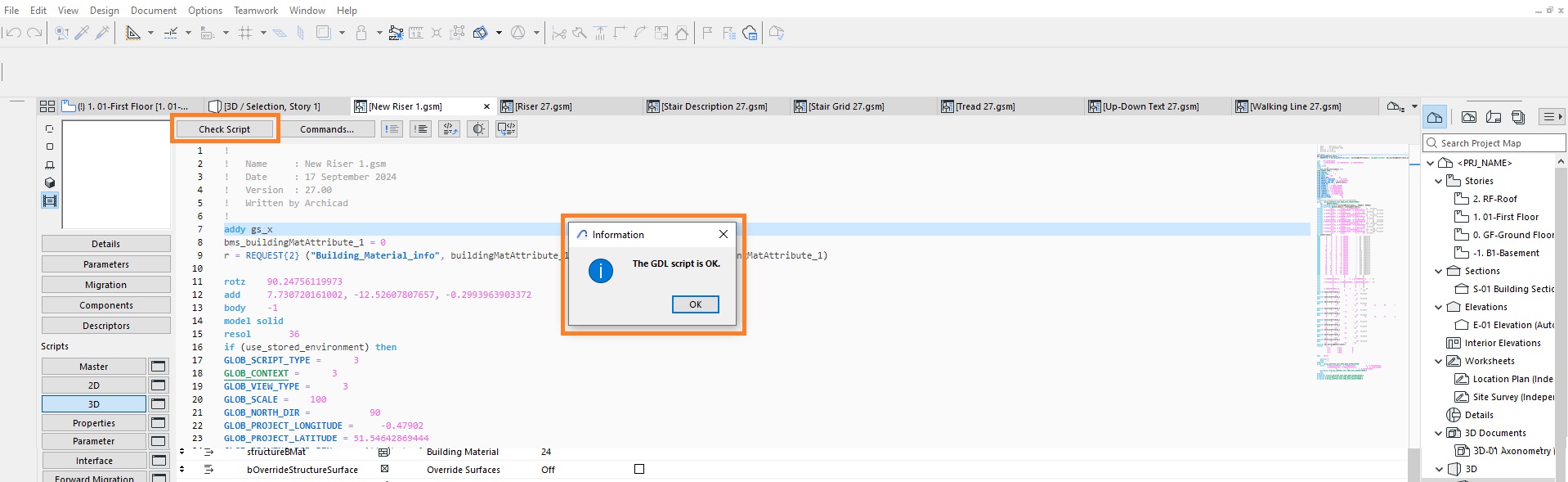

- Verify the script to ensure it returns an OK status.

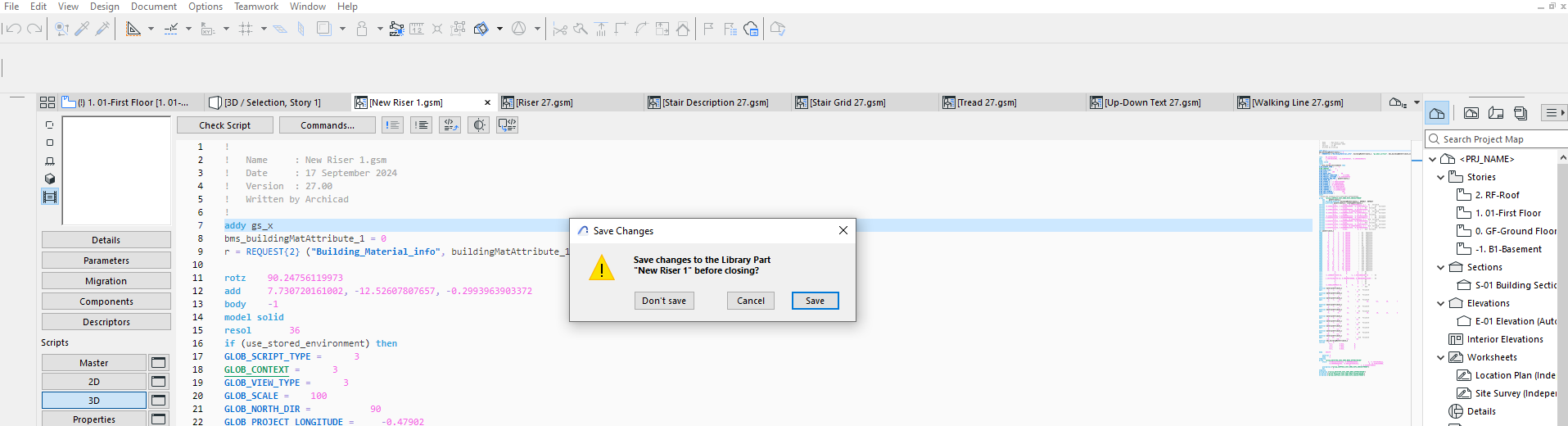

- Close the object to force a save.

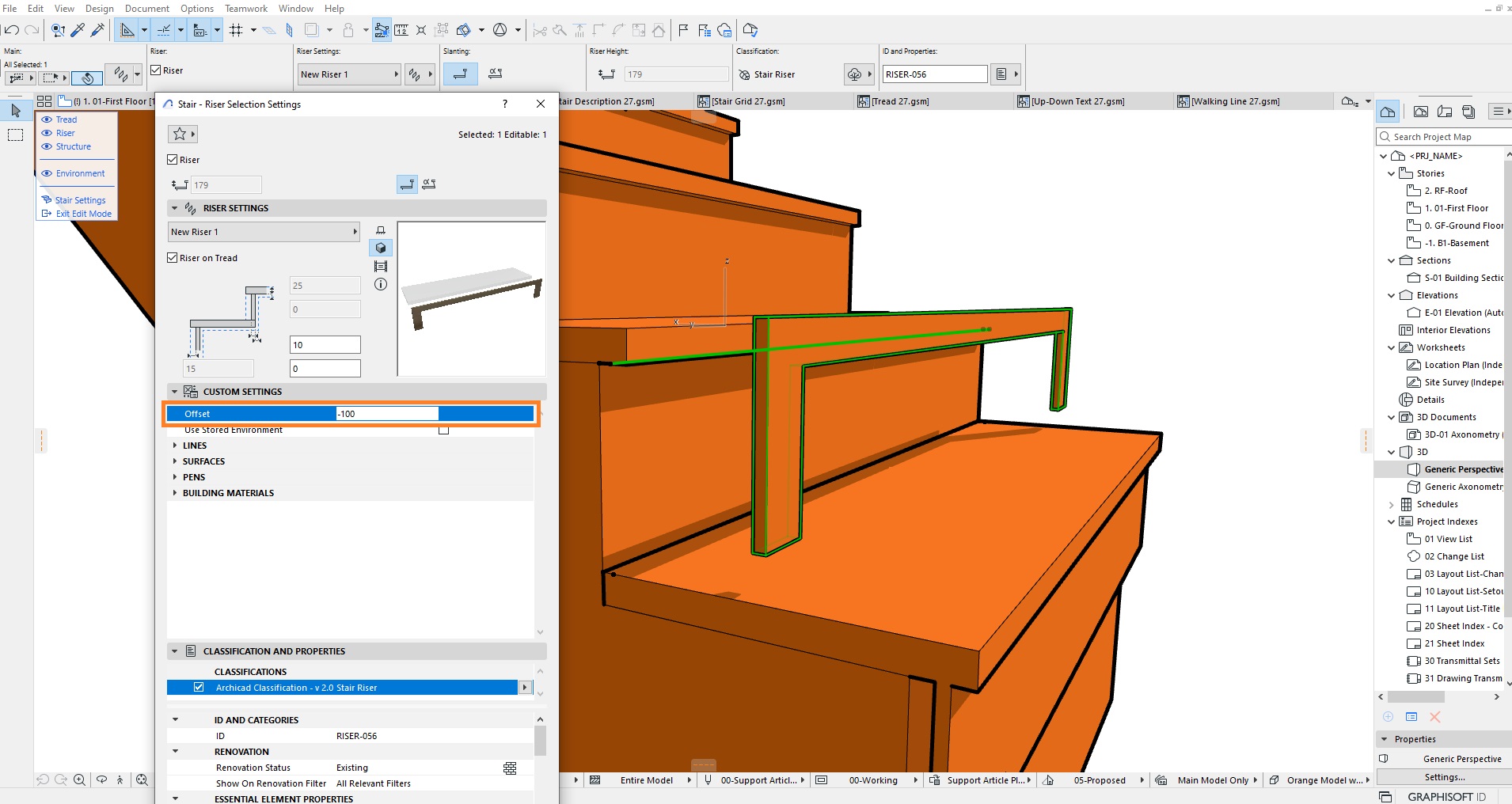

- Select the riser and Edit: now in the riser settings you will see your newly created variable that will allow you to move the riser into place.
