Issue description
If you cannot start Archicad or your license is not recognized, the installed version of Archicad may not match your license type, or your license may not be available on your computer.
This can happen if:
- The wrong version is installed (Archicad Solo instead of Archicad (Full), or vice versa)
- Your license is not available on the computer:
- A software protection key has not been downloaded
- A cloud license has not been assigned or activated
Solution
1. Check which edition of Archicad is installed
- Open the installation folder:
-
Windows:
C:\Program Files\GRAPHISOFT\ -
macOS:
Applications/GRAPHISOFT/
-
Windows:
- Check the application folder name:
- Archicad ## Solo = Archicad Solo is installed
- Archicad ## = Archicad (Full) is installed
Tip: You can also open Archicad and go to Help > About Archicad. The installed edition is shown there.
See, How do I know what version of BIMcloud I'm running
2. Install the correct version
Step 1: Uninstall the incorrect version
- If the installed version does not match the product you purchased, uninstall it first.
See: Uninstall Archicad
Step 2: Install the correct product

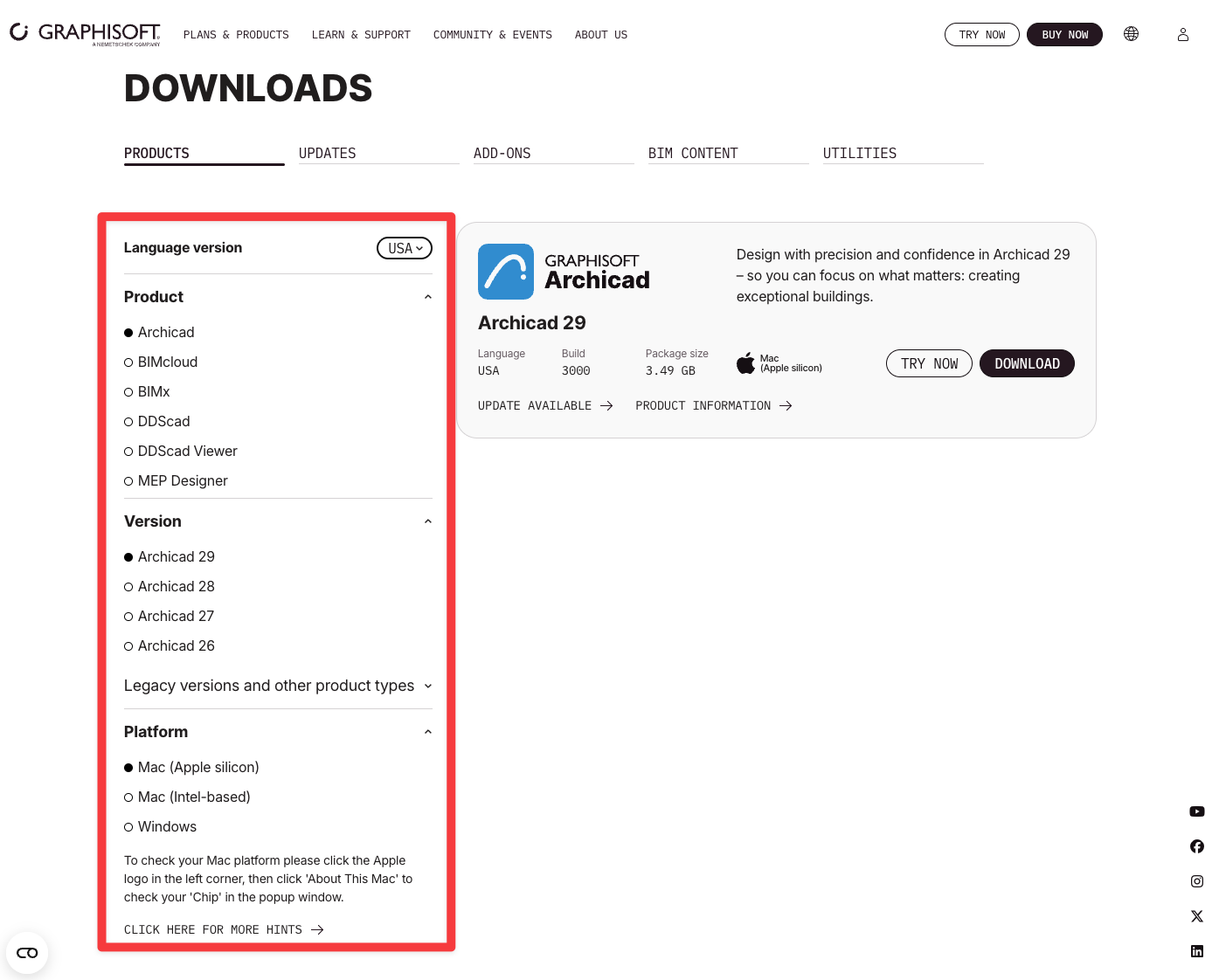

- Download and install the correct version from the Graphisoft Downloads page.
- In the Products tab, make sure you select the correct:
- Product
- Language version
- Version
- Platform / operating system
- If the version you need does not appear, open the Legacy versions and other product types list under Version.
- If you need Archicad Solo, see: Where can you find Archicad Solo installers?
- For detailed installation steps, see: Install Archicad
Step 3: Update Archicad
- After installation, open Archicad and go to Help > Check for Updates.
- You can also download updates from the Graphisoft Downloads page directly.
3. Choose your situation
Archicad Solo and standard Archicad licenses are not interchangeable. After downloading and installing the correct version of Archicad, if Archicad still does not launch correctly, ensure that you are using the correct license for your product by following the instructions below based on your license type:
| License type | Guide |
| Perpetual license (software protection key) | How can I download a software key to my computer |
| Cloud license | How to assign a cloud license |
For more details on software protection keys, see Archicad software protection keys management and usage
