Issue description

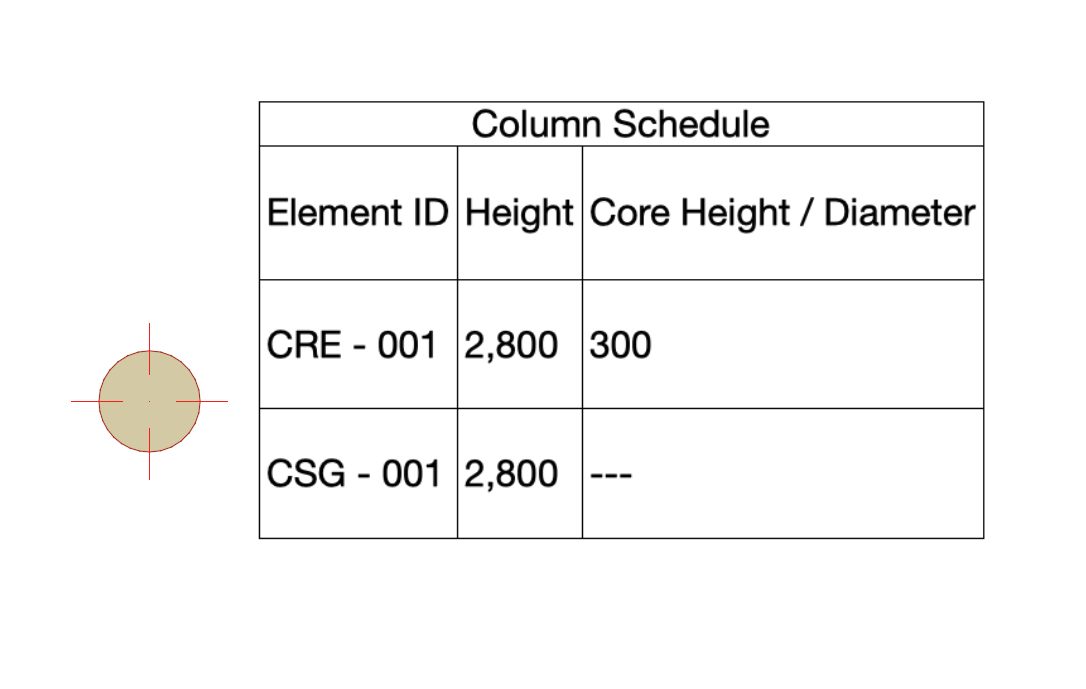

When you open an Interactive Schedule that lists column elements, each column appears more than once in the schedule. You see duplicate rows for the same column, even though only one column element exists in the model.
Solution
This behaviour occurs because the Scheme Settings criteria are filtered only by Layer, without specifying the Element Type. When no element type is defined, the schedule detects both Column elements and their associated Column Segment sub-elements, listing each separately and producing duplicate rows.
Adding Element Type = Column as a criterion (excluding Column Segment) restricts the schedule to list only the column elements themselves.
Follow the steps below to correct the schedule scheme:
-
Open Scheme Settings using one of the following methods:
Go to Document > Schedules > Scheme Settings.
Click Scheme Settings from the open schedule window.
In the Navigator, right-click the schedule and choose Scheme Settings.
In the left panel, select the column schedule scheme you want to correct.
Click the Criteria tab on the right side of the dialog.
Click Add Criteria and select Element Type from the parameter list.

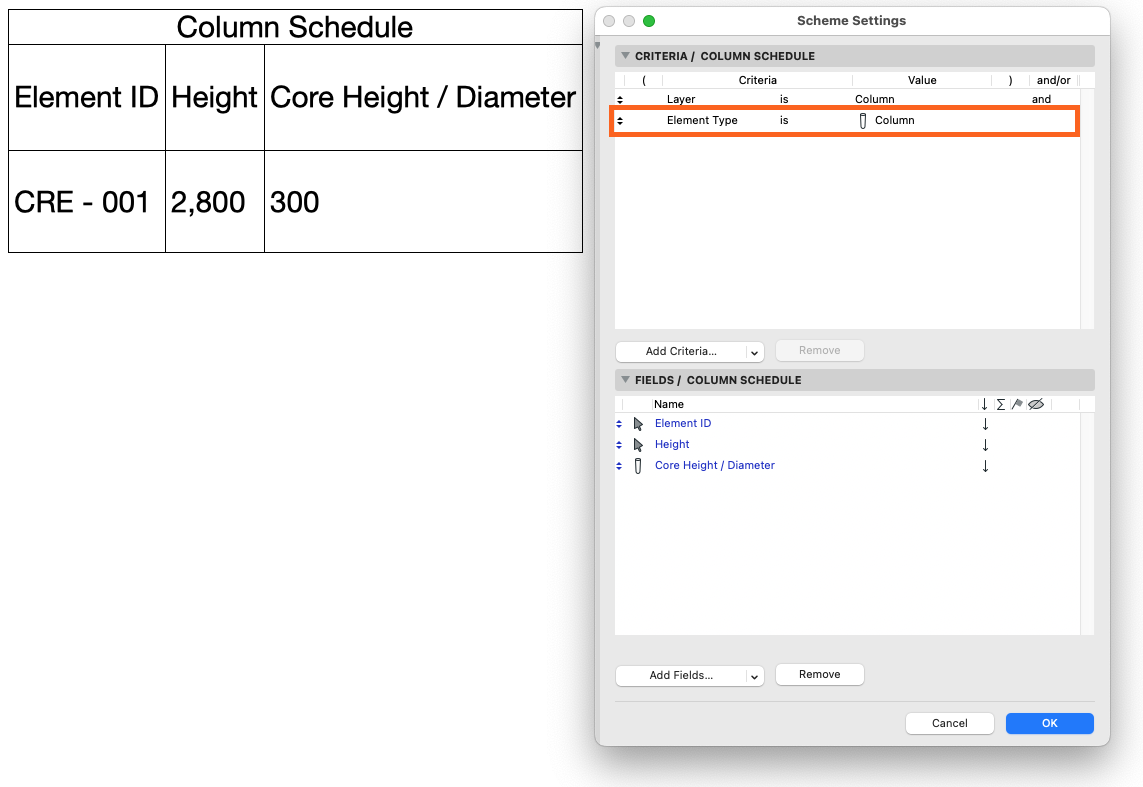

Set the Element Type criterion value to Column.
Make sure Column Segment is not listed as a separate criterion row. If it is present, select it and click Remove (or the minus icon) to delete it.
Click OK to close Scheme Settings and apply the changes.
Return to the schedule window. If the schedule does not update automatically, go to View > Refresh > Rebuild and Regenerate.
