Issue Description

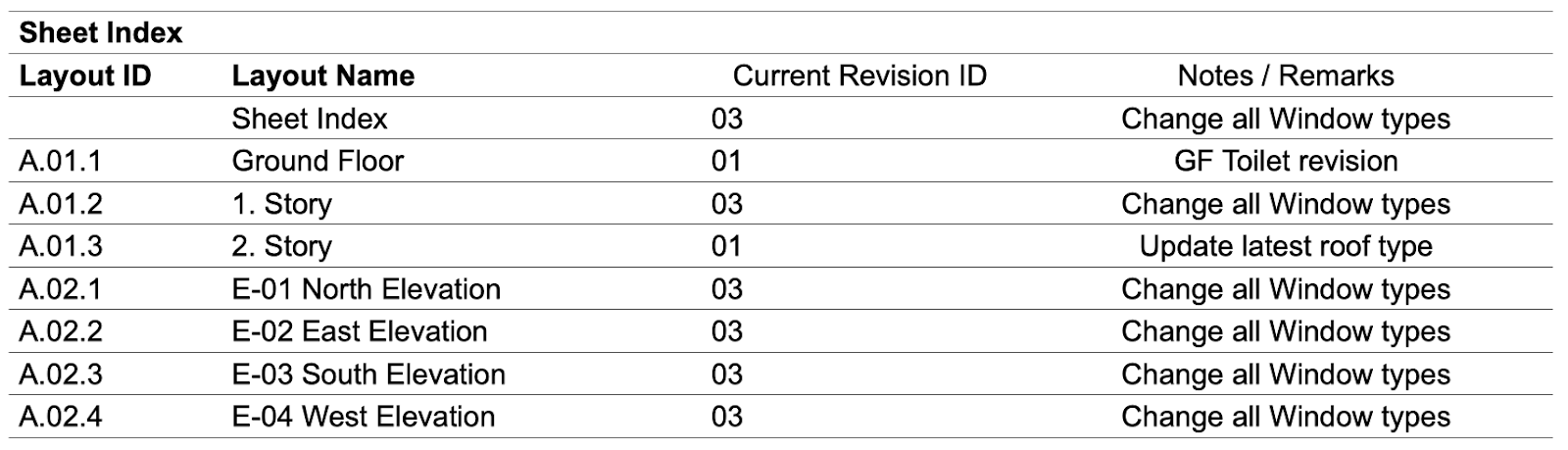

In a drawing sheet index, there may be a need to include specific fields such as Notes or Remarks for each drawing layout. Can a custom field be added to the Layout Info to include this detail in the sheet index for project submittals?
Solution
Additional fields can be added to the Layout Info in the Book Settings. Follow these steps:

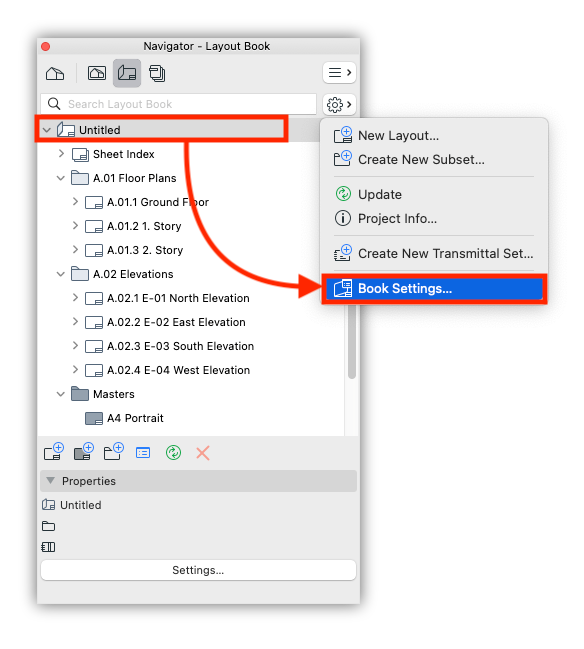

1: Access Book Settings:
- In the Navigator - Layout Book, right-click on the topmost layout.
- Select Book Settings... from the context menu.

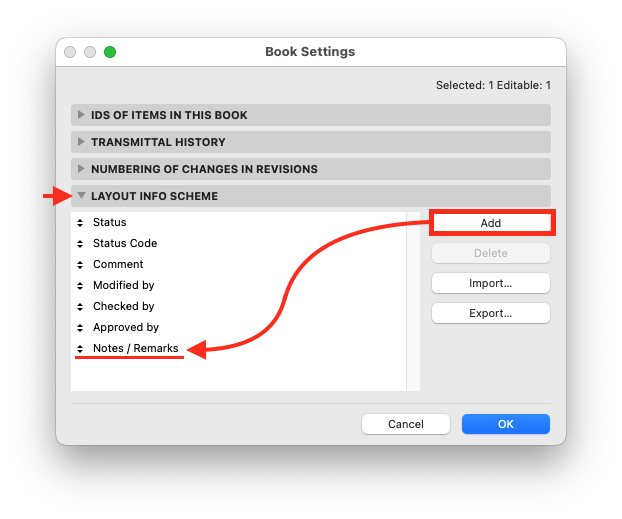

2: Add a Custom Field:
- In the Book Settings dialog, go to the Layout Info Scheme tab.
- Click the Add button to create a new custom field.
- Assign a name to the field, such as Notes or Remarks.

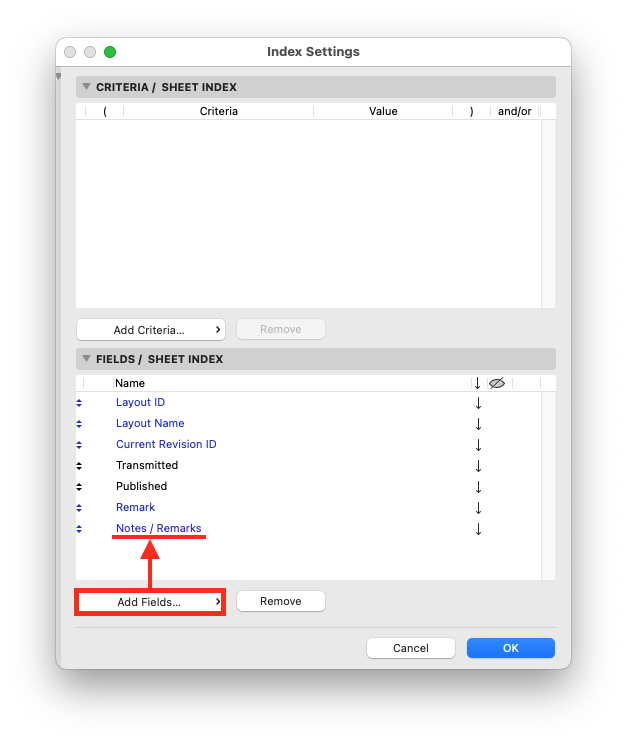

3: Include the Custom Field in the Sheet Index:
- Open the Sheet Index Settings.
- Add the newly created field (e.g., Notes / Remarks) to the Fields / Sheet Index list.
- Click OK to save the changes.
The custom field will now be included in the sheet index and can be filled out for each layout in the project.
