Issue description

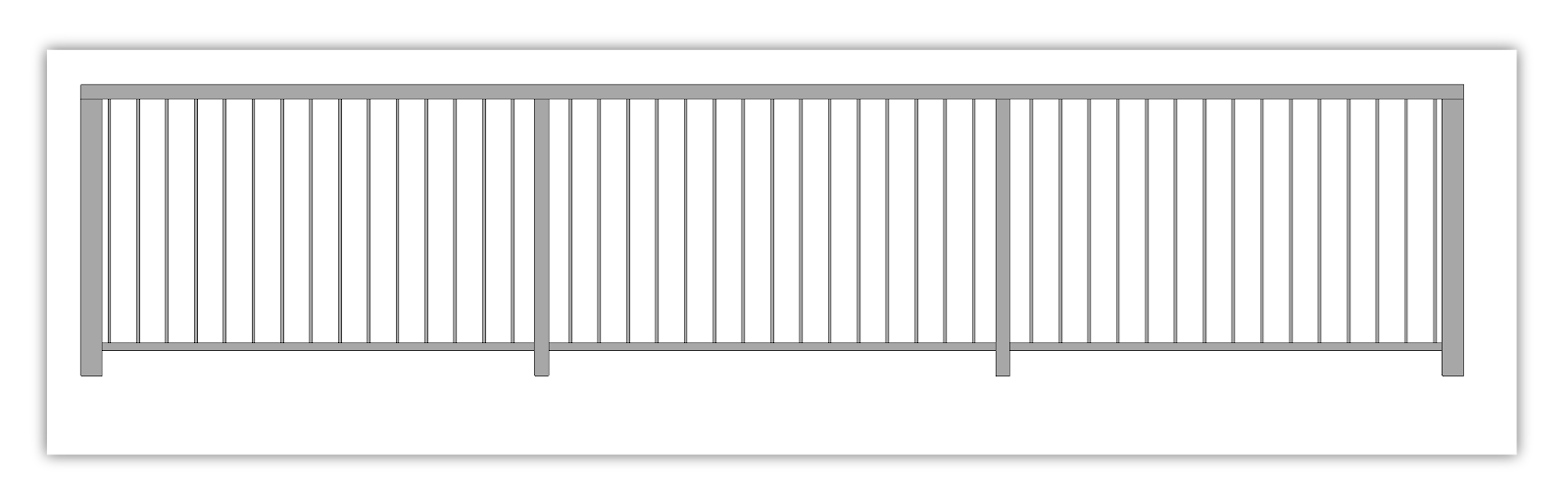

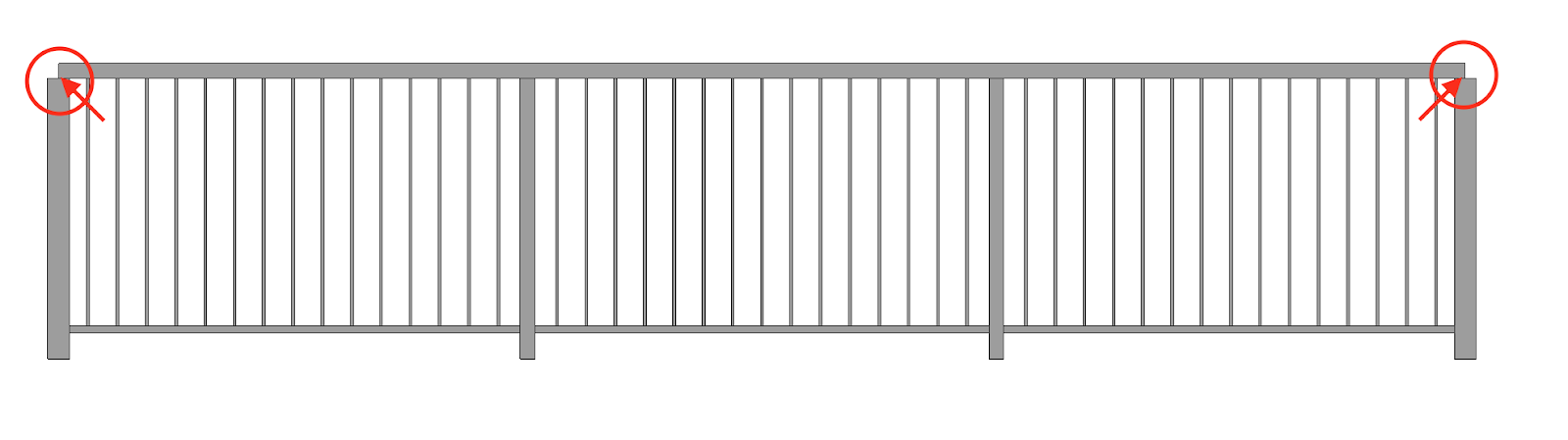

When a railing is modeled in Archicad, the end node of the railing reference line uses the centerpoint of the rail posts as its end point. How can I correct this behavior to achieve a seamless end point for my railing?
Solution
Posts are automatically placed at either end points or nodes with the Railing tool. You can modify the offset of these posts from each node in the Railing Selection Settings.
1: Select the railing then go to Railing Selection Settings.

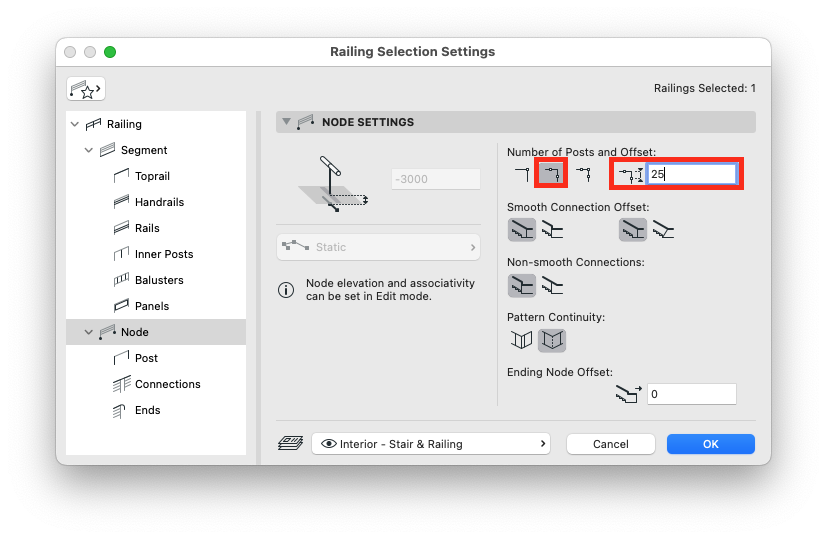

2: In the “Node Settings” under the “Node” tab, change the Number of Posts and Offset to “Two” then set the offset value to the diameter of the Post. Click OK when to save.
