Issue Description
The Window Reveal is configured for the windows but does not appear in the Floor Plan view automatically? Or by default?. How can this option be made visible in the Floor Plan?
Solution
The visibility of Window Reveal in the Floor Plan is controlled by the Model View Options. To enable this feature:

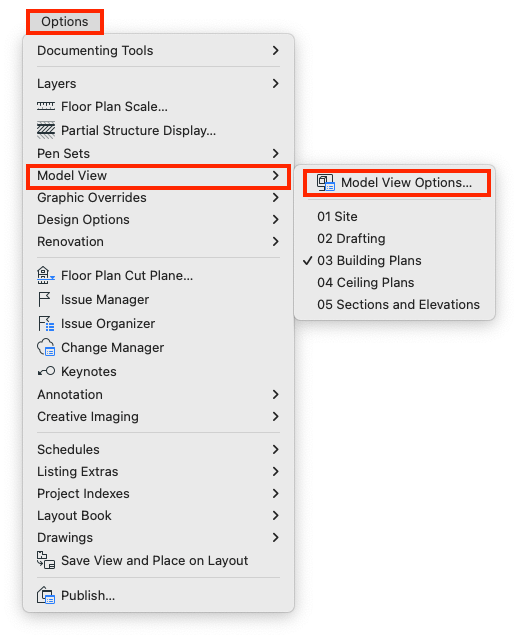

1: Go to Options > Model View > Model View Options

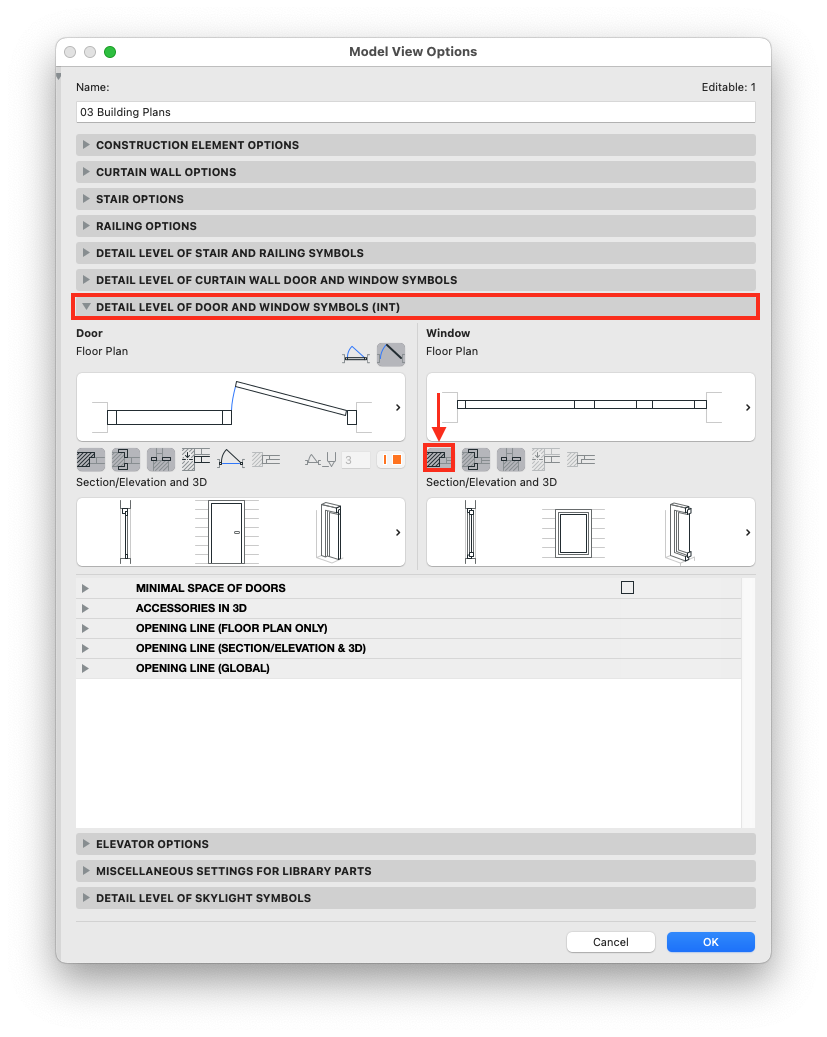

2: Select the appropriate Model View Combination or create a new one then under the “Detail Level of Door and Window Symbols” tab, turn on “Reveal”. Click OK to confirm.
