Why does the last step of the Stair look shorter than the rest

Issue Description

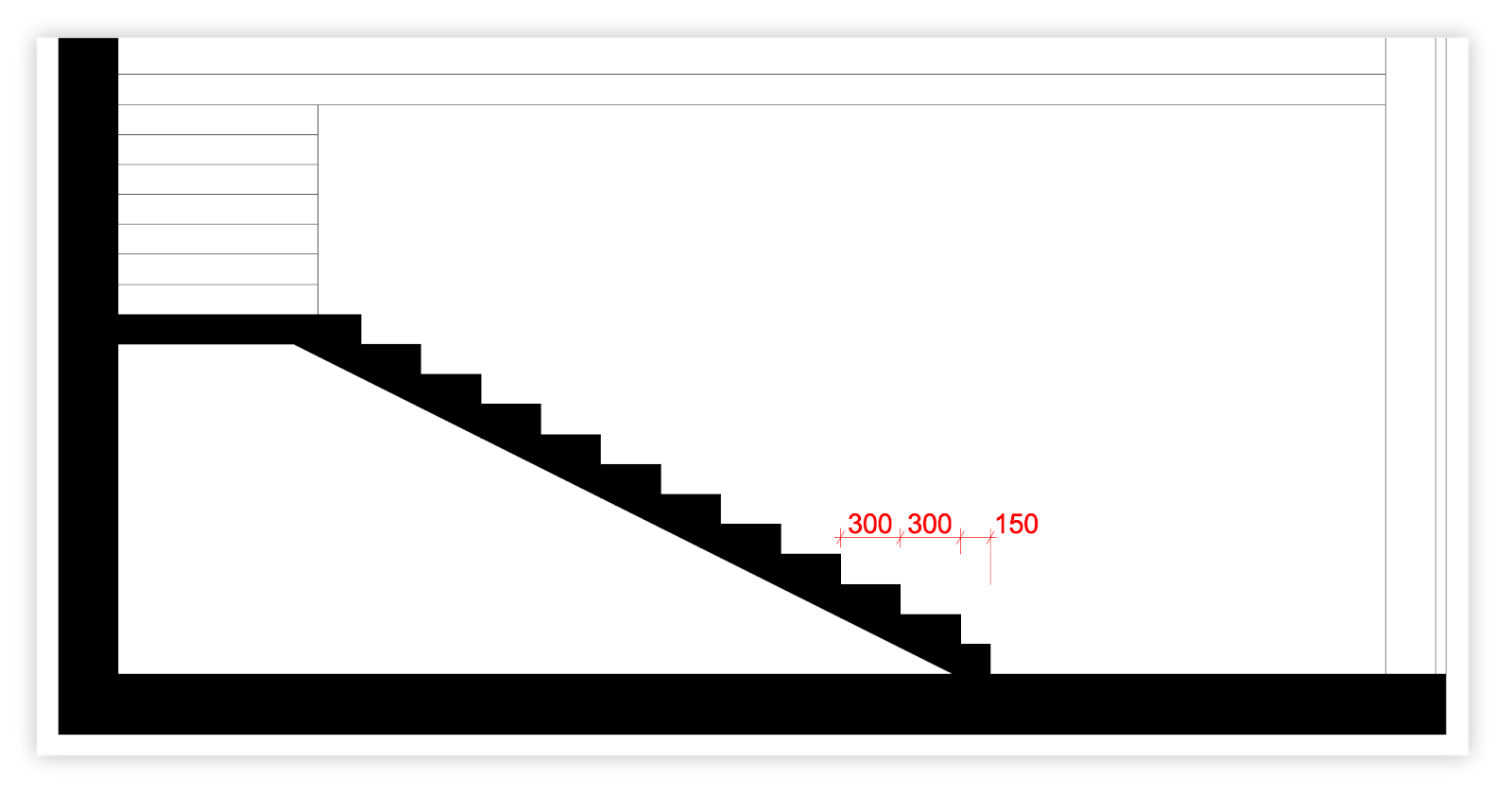

In section the bottom step appears shorter than the rest?

Solution

In Archicad, the last step of a stair may appear shorter than the others due to the vertical cut.

This behavior occurs because there is a value input in the “dx” parameter of the Flight Start in the Stair Settings. To adjust this, follow these steps:

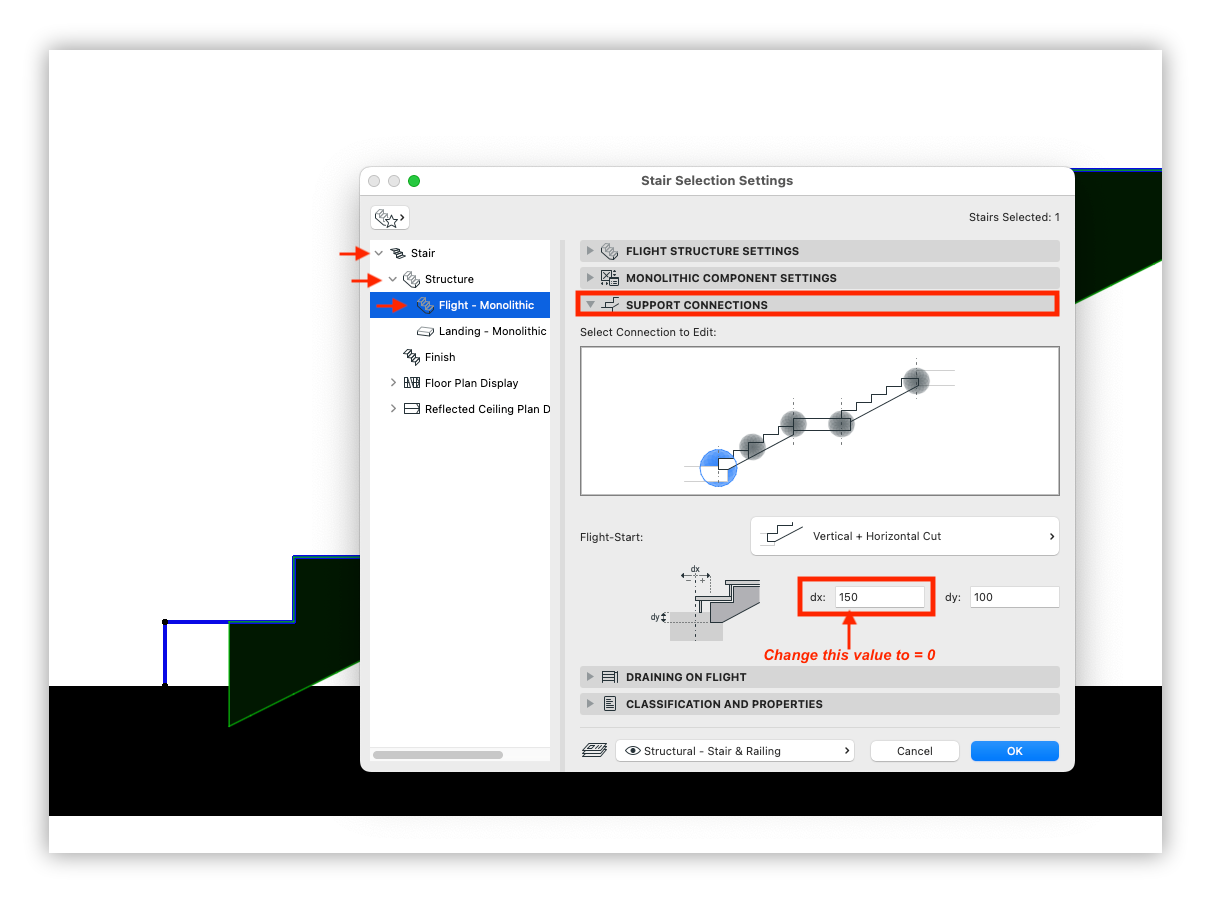

1. Select the Stairs then go to Stair Selection Settings.
2. Proceed to the left tab. Stair > Structure > Flight - Monolithic.
3. In the Flight - Monolithic, go to Support Connections. Locate the Flight-Start in the connection to Edit.
4. Change the Value of “dx” to “0”. Click OK to save.


TIP:  For more information on stair endings and connections.
