Dimensions automatically include core skins of walls

Issue description

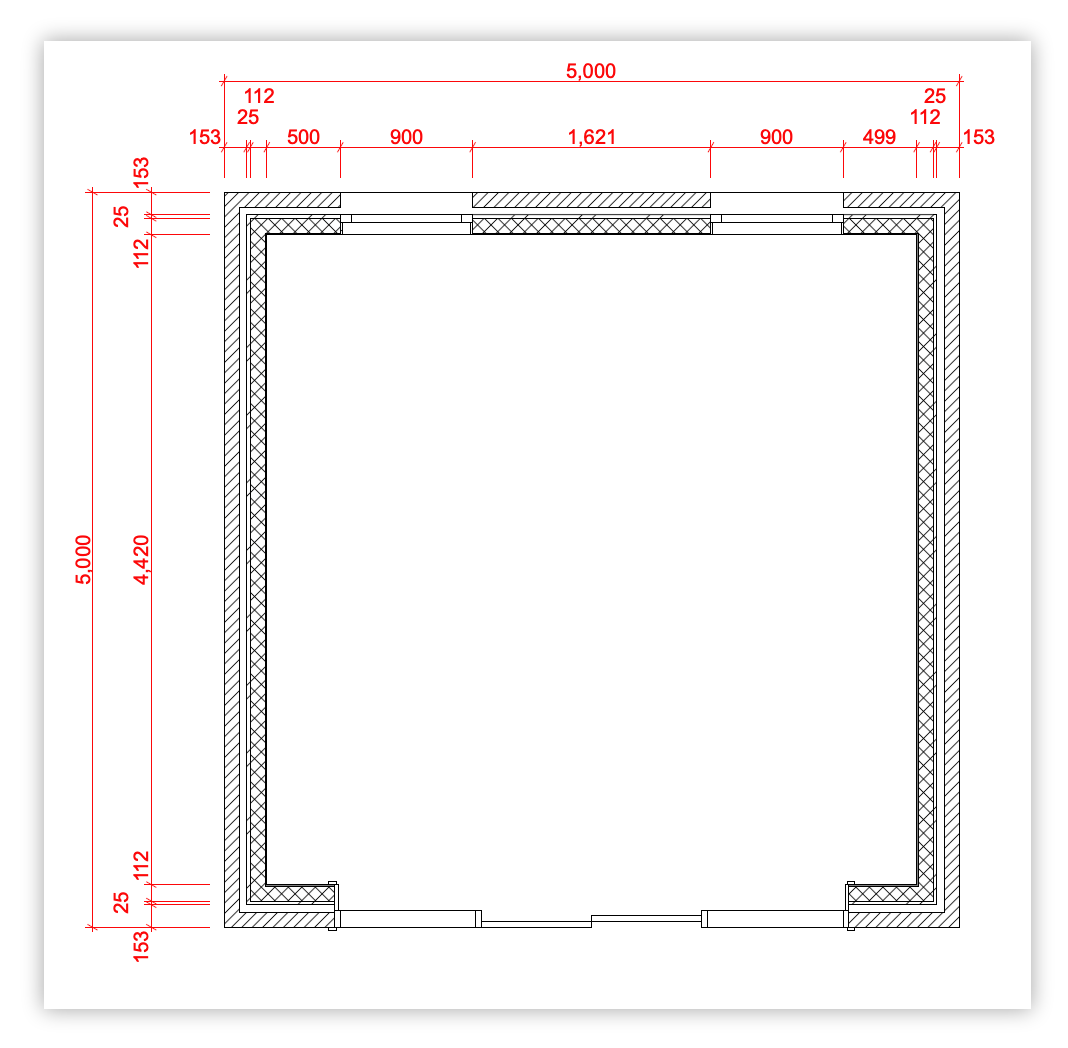

When placing dimensions on walls, the Dimension Tool includes the core skins of composite walls, resulting in a crowded dimension string. Is there a way to disable this feature and focus on the wall's outer faces?

Solution

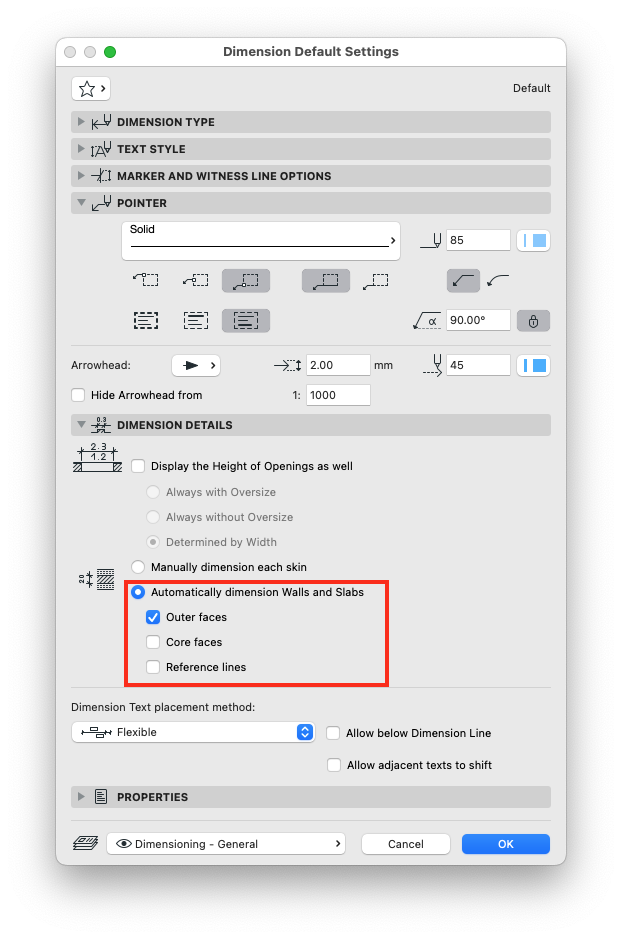

The dimension tool's behavior for composite walls can be customized in the Dimension selection settings. To disable dimensioning of core skins and simplify your dimension strings:

1. Open the Dimension selection settings.
2. Expand the Dimension details tab.
3. Under Automatically dimension Walls and Slab:
   • Uncheck Core Faces.
   • Uncheck Reference lines.
   • Check Outer Faces - This will make the dimension attach to the outer face of walls only.

By applying these changes, the dimensions will focus on the external boundaries of the walls, eliminating unnecessary details and creating a cleaner, more organized dimension string.
