Issue Description

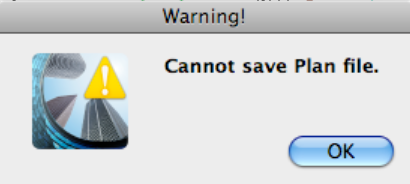

Archicad Warning Cannot save Plan file:
Solution
The Cannot save Plan file warning in Archicad typically indicates an issue preventing the project file from being saved. Here are some common causes and solutions:
1. Insufficient Disk Space (click to expand):
Cause: The drive where you're trying to save the file may be full.Solution:
- Check available disk space on your drive.
- Free up space by deleting unnecessary files or moving files to another location.
- Save the file to a different drive or folder to test.
2. File Permission Issues (click to expand):
Cause: You may not have sufficient permissions to save to the specified location.Solution:
- Ensure you have write permissions for the folder.
- Save the file to a different folder (e.g., your desktop) and verify if it works.
- If you're using a network location, ensure proper access rights.
3. Read-Only File or Location (click to expand):
Cause: The file or folder might be set to read-only.
Solution:
- Right-click the file or folder, go to Properties, and uncheck Read-only.
- Try saving the file again.
4. Corrupted File or Temporary File Issue (click to expand):
Cause: The current working file may be corrupted, or Archicad may be stuck on a temporary state.
Solution:
- Use File > Save As to save the file with a new name.
5. Network or Cloud Sync Issues (click to expand):
Cause: If you are saving to a network location or a cloud-synced folder (e.g., Dropbox, OneDrive), there could be connectivity or sync conflicts.
Solution:
- Save the file locally on your computer.
- If successful, move the file to the network or cloud location after saving.
6. Archicad Licensing or Configuration Issue (click to expand):
Cause: Licensing issues or an unstable Archicad configuration might prevent saving.
Solution:
- Ensure your Archicad license is active and properly configured.
- Close and restart Archicad or your computer.
- Repair the Archicad installation using the installer if issues persist.
7. File Path Length or Special Characters (click to expand):
Cause: Excessively long file paths or unsupported characters in the file name can cause issues.
Solution:
- Rename the file or save it in a folder with a shorter path.
- Avoid using special characters like
*,?, or/in the file name.
If the Problem Persists
Contact Technical Support: If the issue persists, reach out to Graphisoft Support with detailed information about the problem, your Archicad version, and your system setup.
