Issue Description

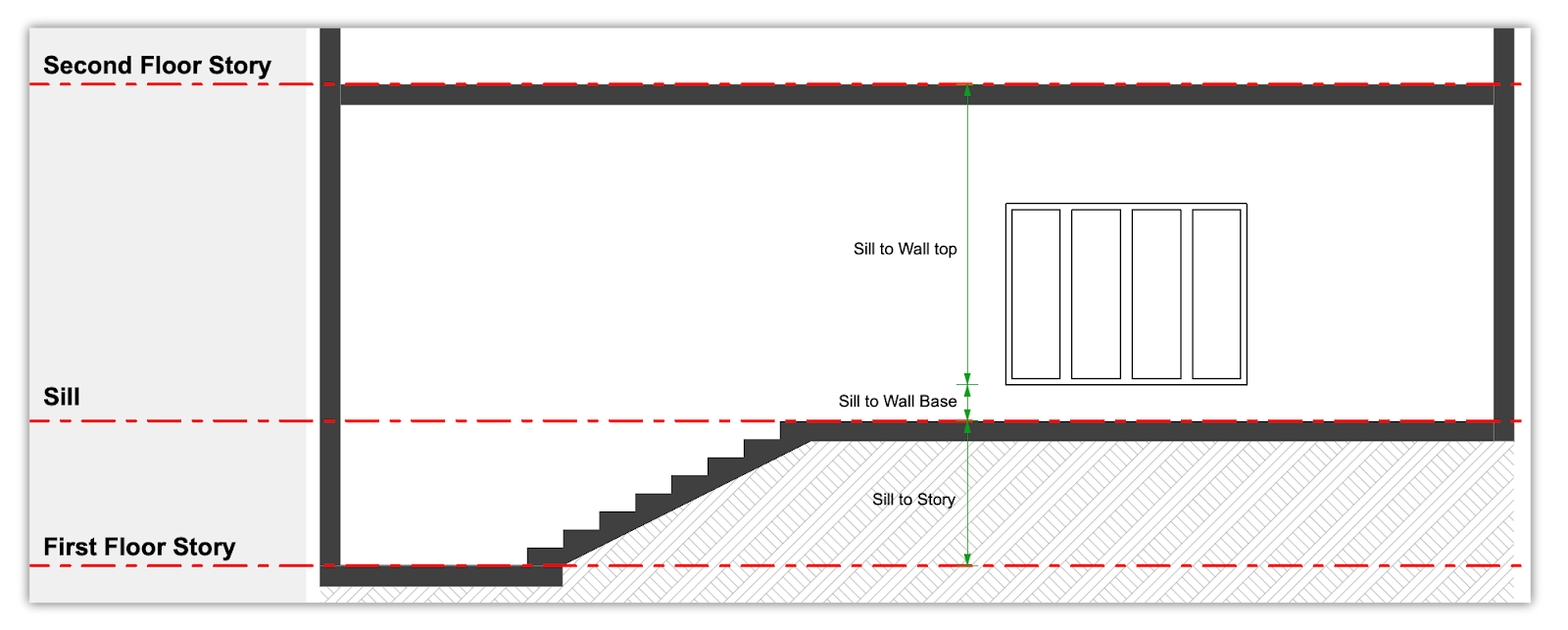

The project involves a split-level design, where one of the spaces in a room is positioned between the first and second floors. The requirement is to display the window's height relative to the floor, but the current settings only show values based on the Story base point. Is there a way to link the Window Sill to the Wall Base instead of the Story?
Solution
Archicad provides three options for linking Window Sills:
- Sill to Story
- Sill to Wall Top
- Sill to Wall Base
To adjust this setting:

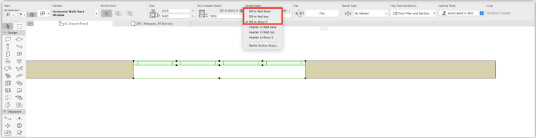

Use the Info Box to toggle between these three linking options quickly.

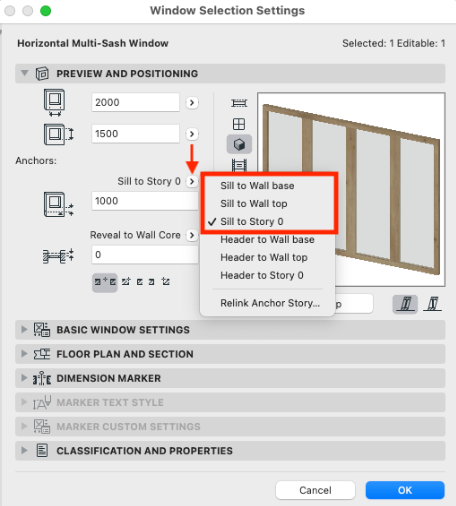

Alternatively, you can open the Window Selection Settings, where the linking preferences can also be modified.
By linking the Window Sill to the Wall Base, the height will align with the desired reference point, ensuring accurate representation for split-level designs.
