How to set composites skins in slanted walls?

Issue Description

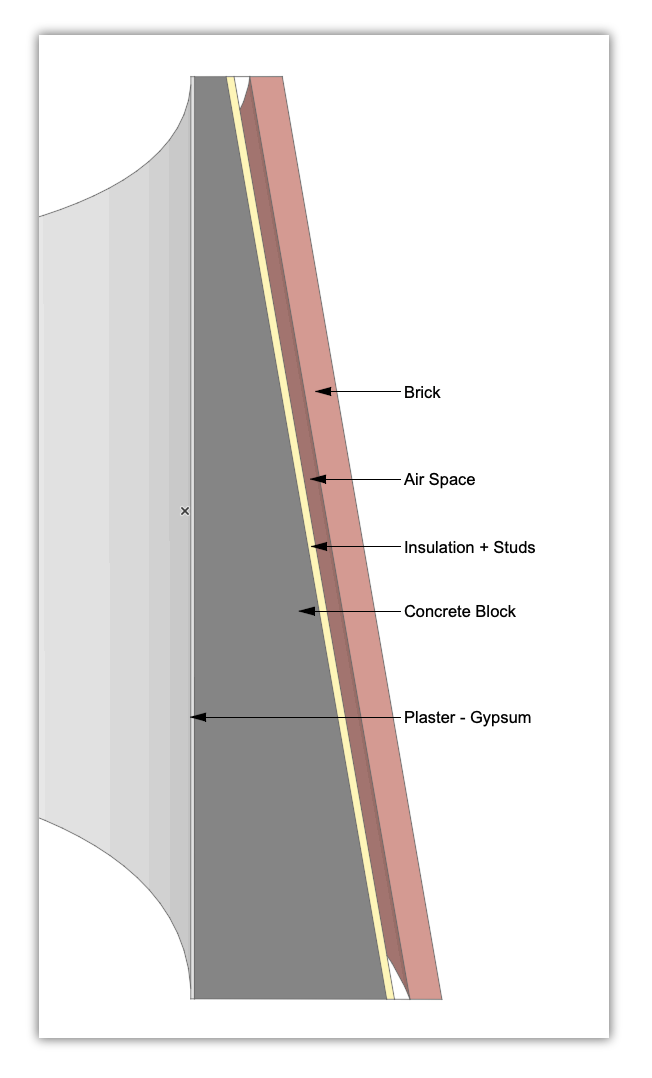

I have created a section of a slanted composite wall in my project. However, I am unsure how to control which skin of the composite wall adjusts or gains size as the wall slants.

Solution

To control which skin of a slanted composite wall adjusts or gains size as the wall slants in Archicad, follow these steps:

1. Edit the Composite Structure

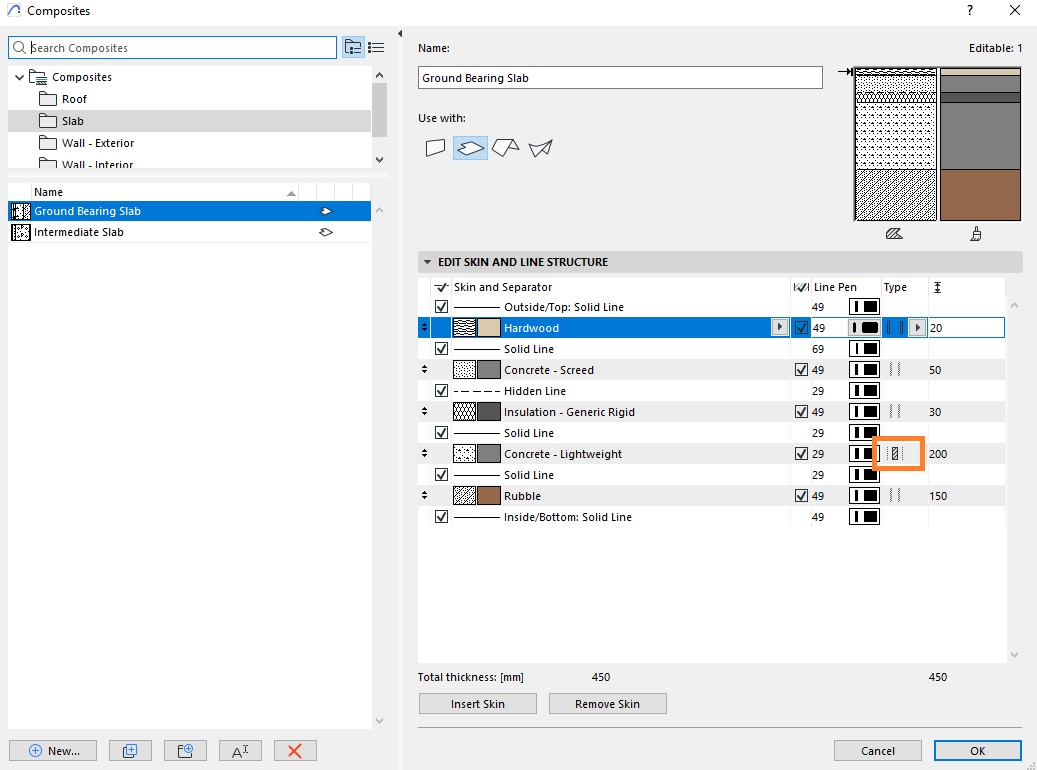

   • Open the Composite Structures settings by going to Options > Element Attributes > Composites.
   • Select the composite wall you are using.

2. Define the Core

   • Identify the core within the composite structure. The core will be the skin that adjusts.
