Issue Description
The project includes slanted walls as part of its design. Is it possible to create slanted walls in Archicad.
Solution
Archicad provides a straightforward method for creating slanted walls through its Wall Settings. By adjusting specific parameters, users can define the slope or angle of the wall to meet the project requirements.

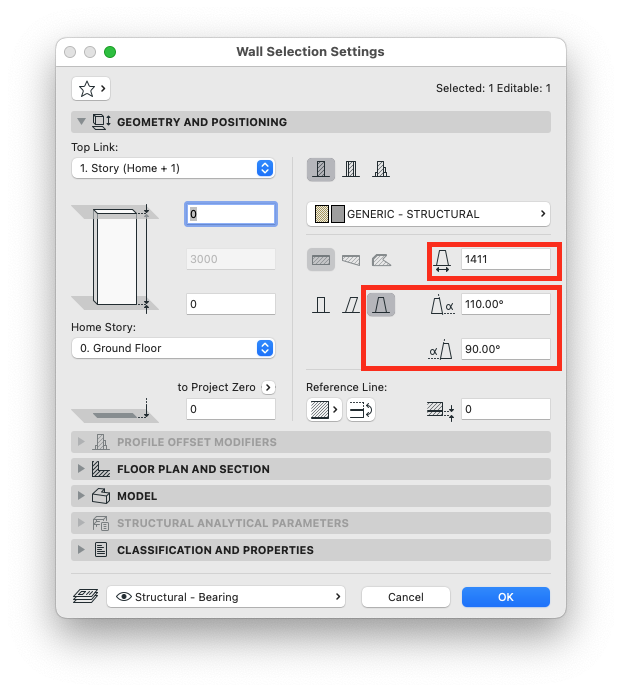

In the Wall Settings....
- Under Wall Top Options, select the "Slanted" wall type.
- Specify the desired angle of inclination for the wall. Positive angles tilt the wall outward, while negative angles tilt it inward.
-
Place the Wall: Draw the wall as you normally would on the plan view. The slant will automatically apply based on the angle you set.
