Issue Description

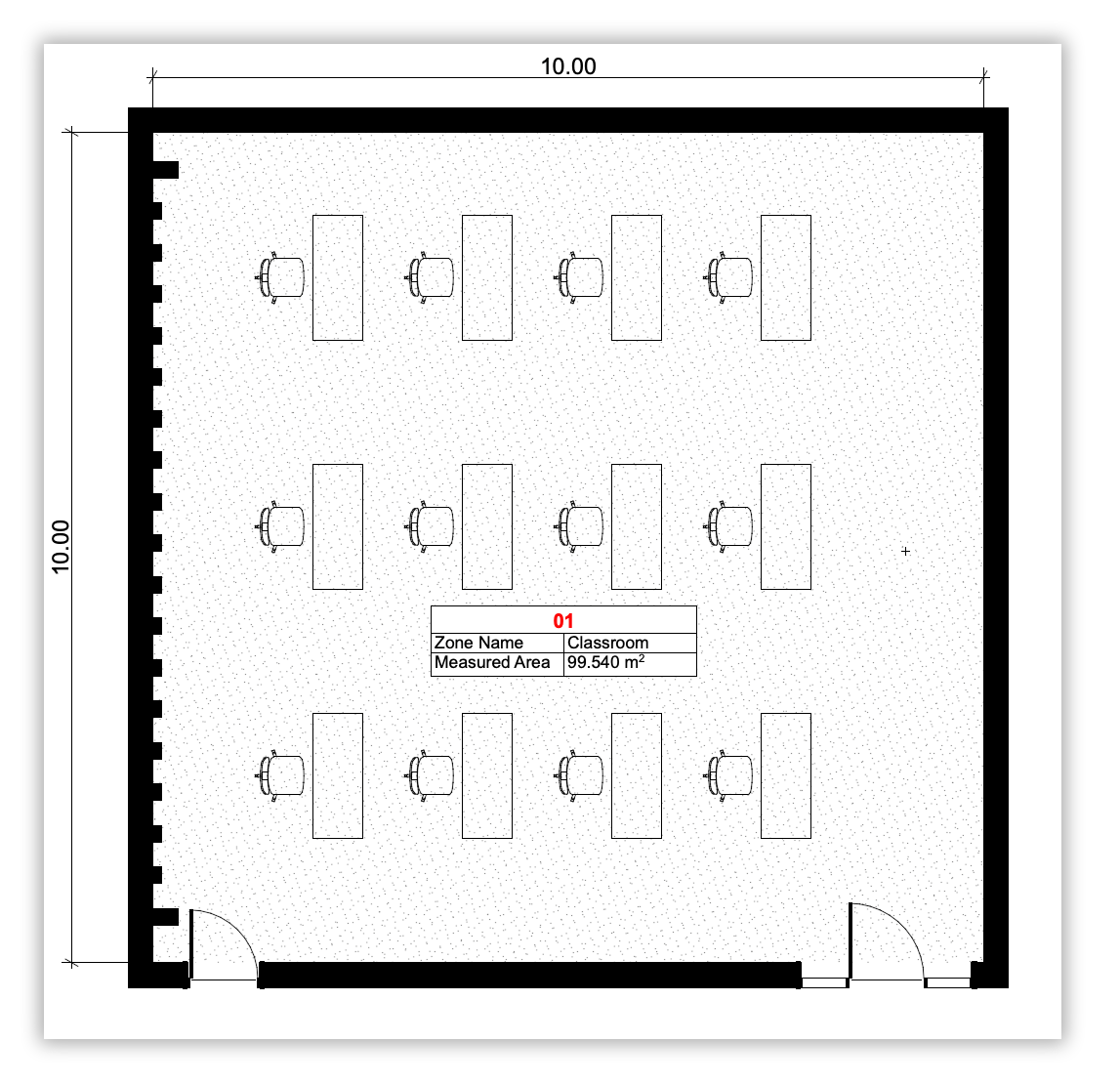

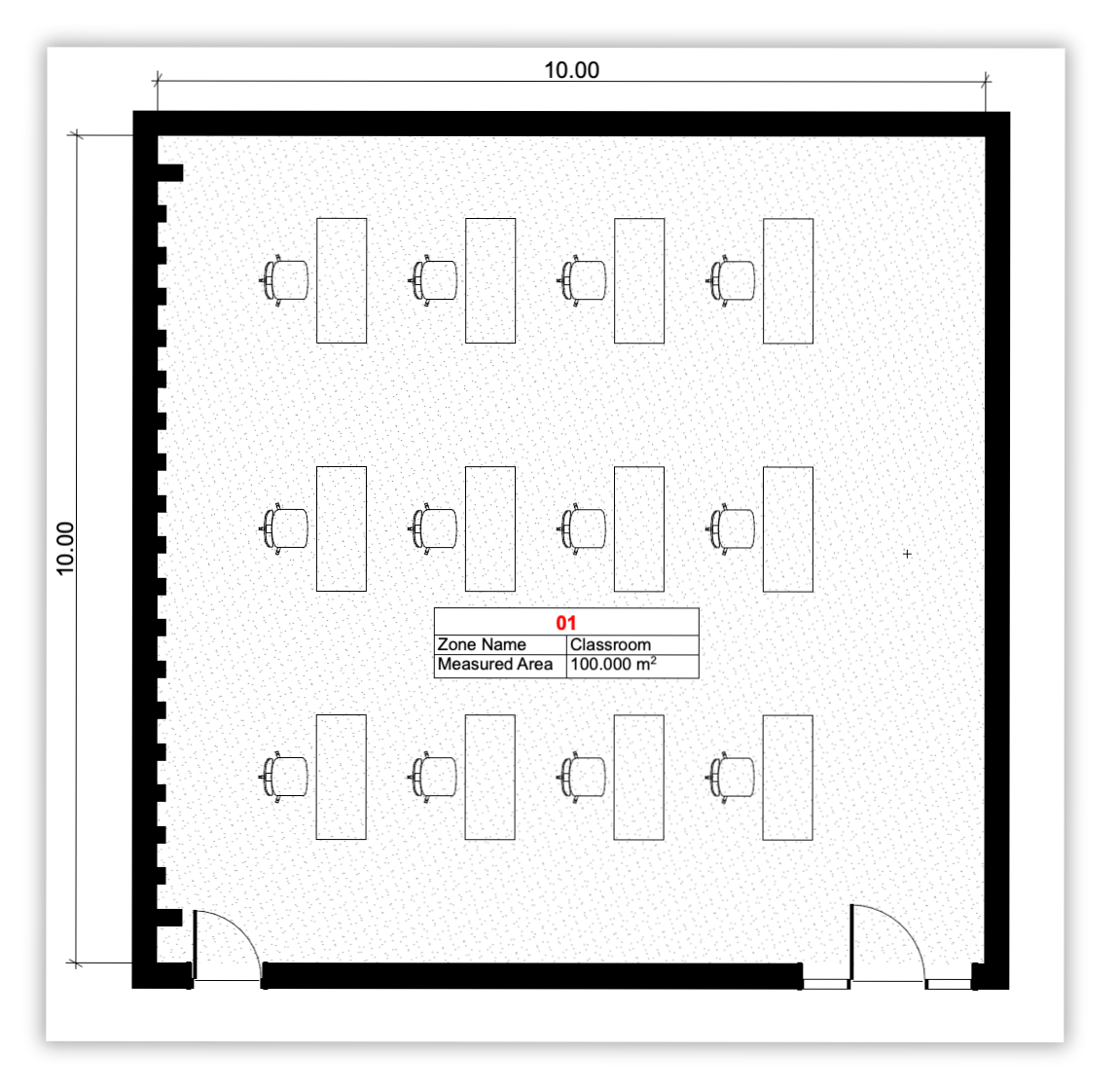

I have used Column elements as decorative features on my walls; however, they are being excluded from the Zone Area calculation, even though they are non-load-bearing and purely aesthetic. Is there a way to prevent them from being deducted from the Zone Area?
Solution

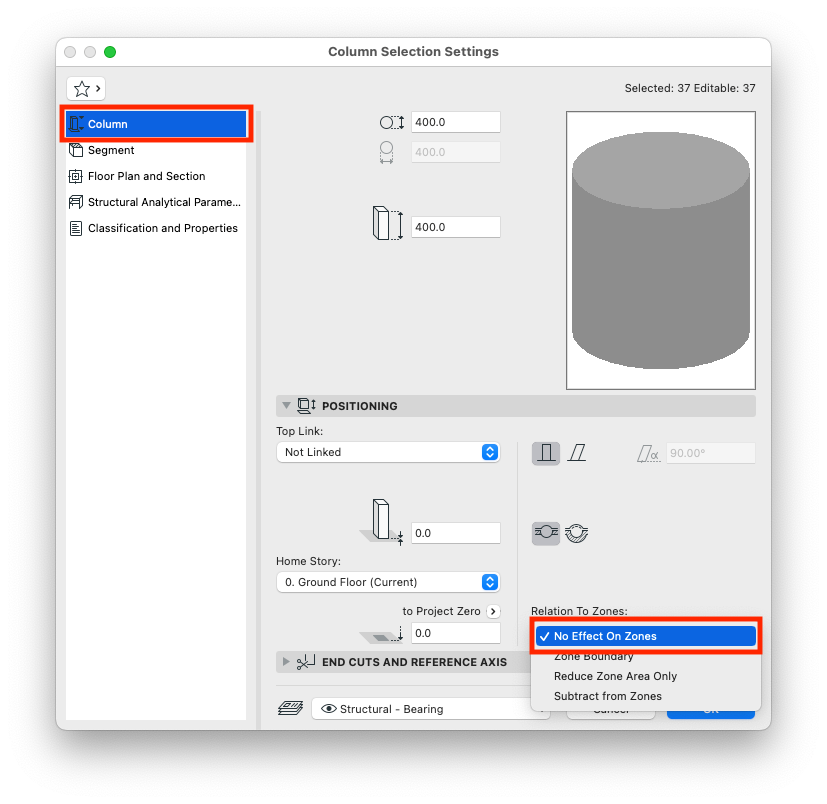

- Select all the Columns then go to Column Selection Settings.
-
Under Positioning section in the Column tab, select it’s relation to Zones to “No Effect on Zones”. Click OK to save.

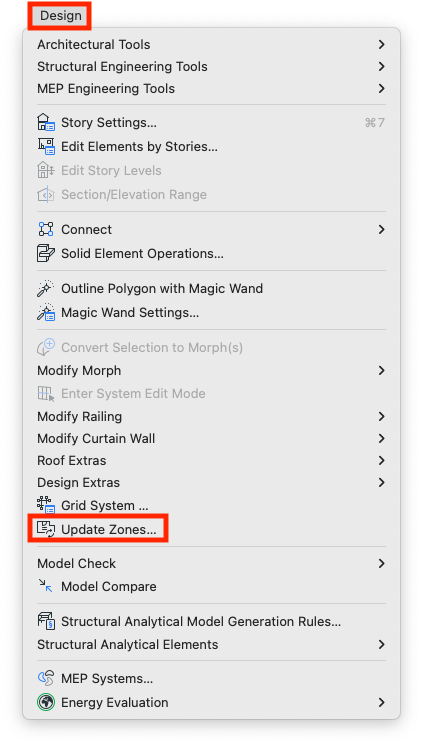

- Once the Column settings have been changed, update the Zone. To update Zone, go to Design > Update Zones…
TIP: Further reading on Zones and there creation
