Issue description
Survey Point Tool is missing from the Tool Bar in Archicad 28.
Solution
In Archicad 28, if the Survey Point tool is missing from the toolbar, it’s likely due to the workspace configuration or a customized toolbar setup. Here’s how you can find and add it back:
1. Go to Options > Work Environment > Toolbars.

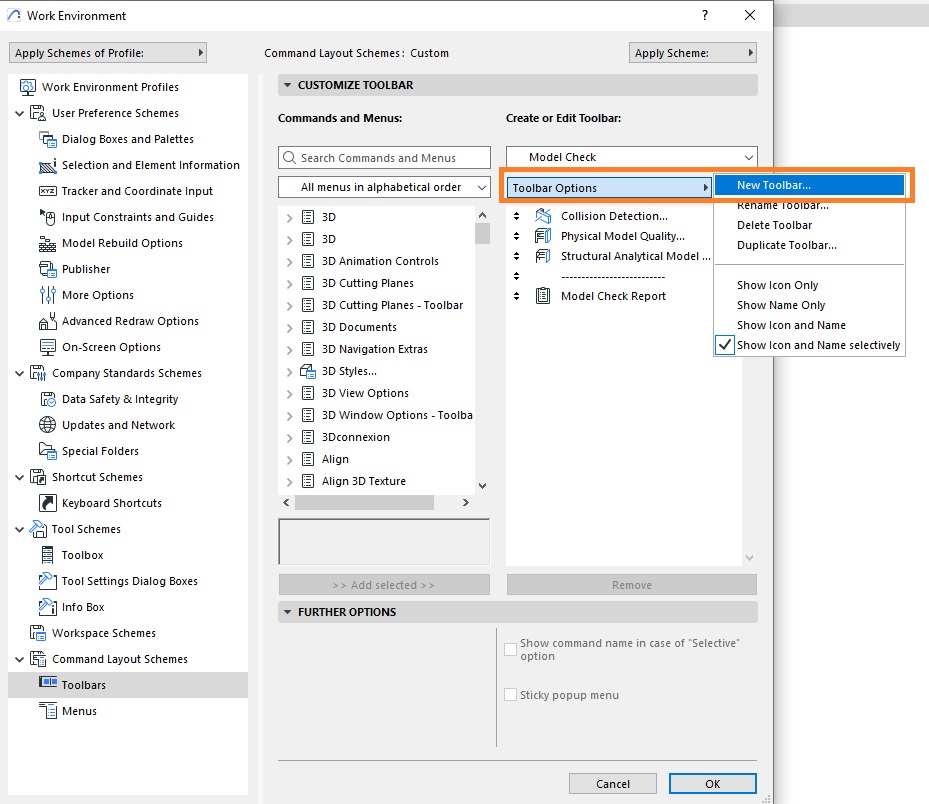

2. In the Customize Toolbar section, create a NEW Toolbar.

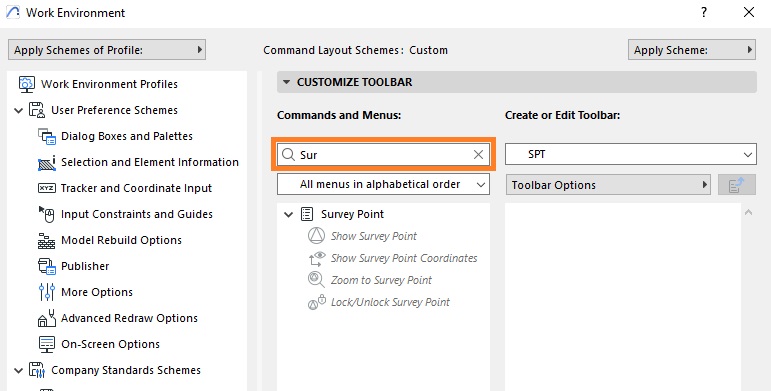

3. Under the Commands and Menus Type Survey Point into the search bar.

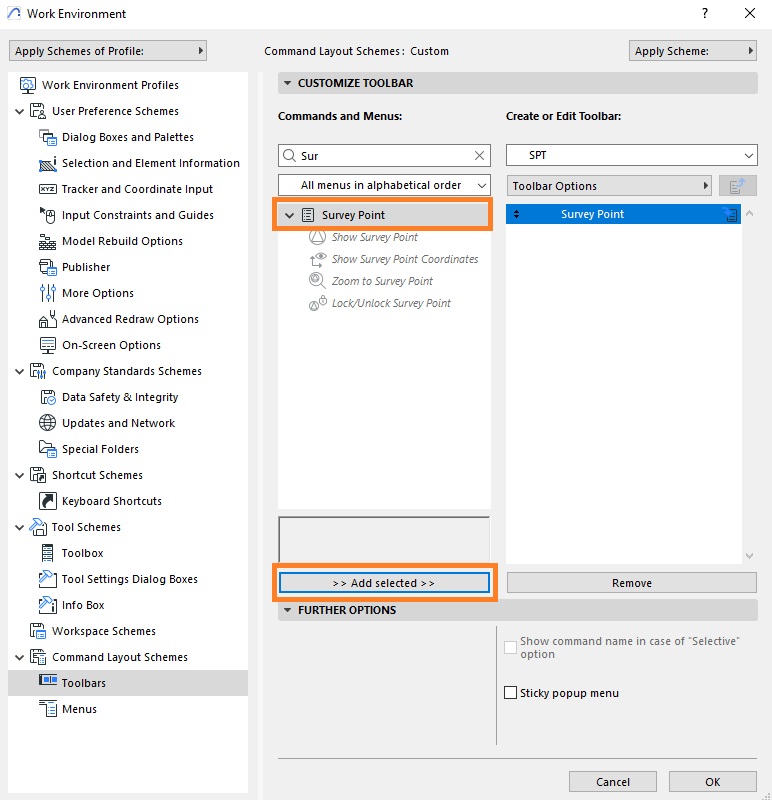

4. Add the Survey Point Tool to the Toolbar and select OK

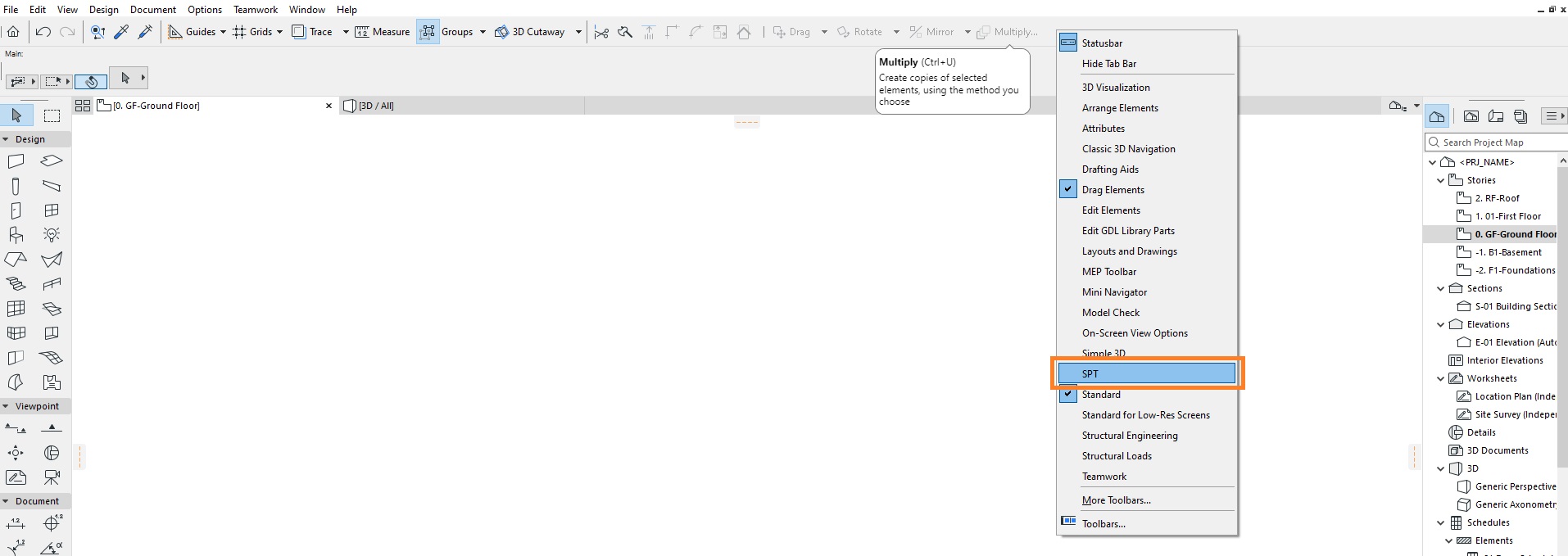

5. Right click in the grey space of the Toolbar find your new Toolbar in the list.

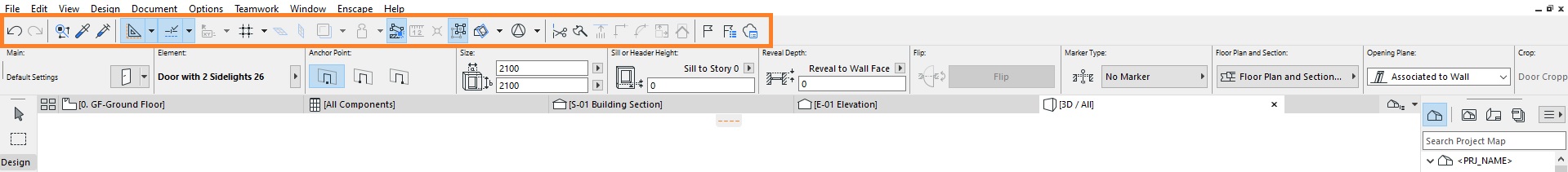

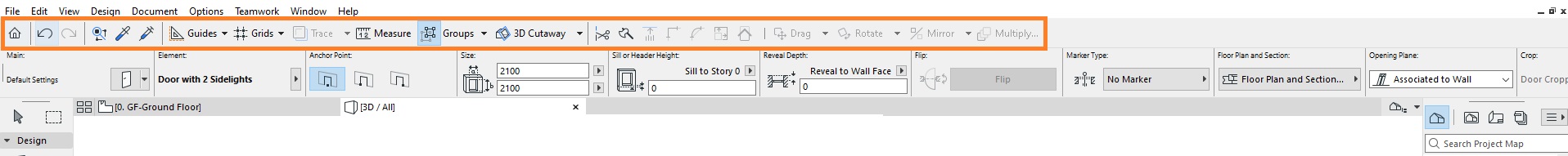

6. Drag the tool into the desired toolbar section.
