Issue Description
The opening lines of Doors and Windows are pointed at the handle instead of the hinge. Is there a way to automatically mirror the opening lines to point to the hinge instead.
Solution
Doors and Windows opening lines can be controlled in the Model View Options.

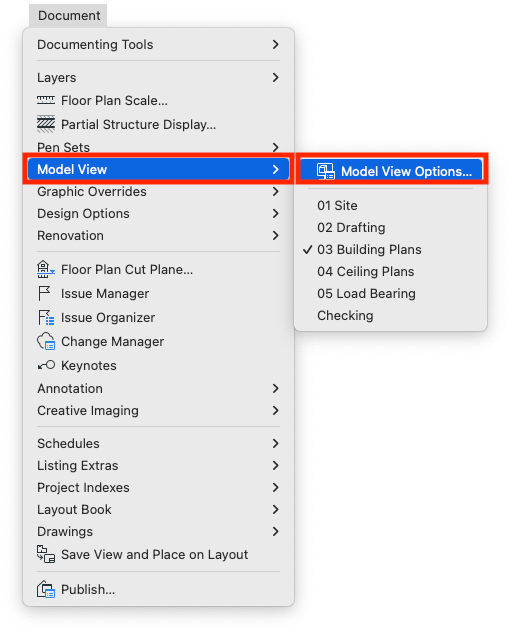

Navigate to Model View Options. Go to Document > Model View > Model View Options.
TIP: When modifying any settings in the Model View Options. Its safer to create a new Model View Combination first before proceeding to avoid conflicts with other plans.

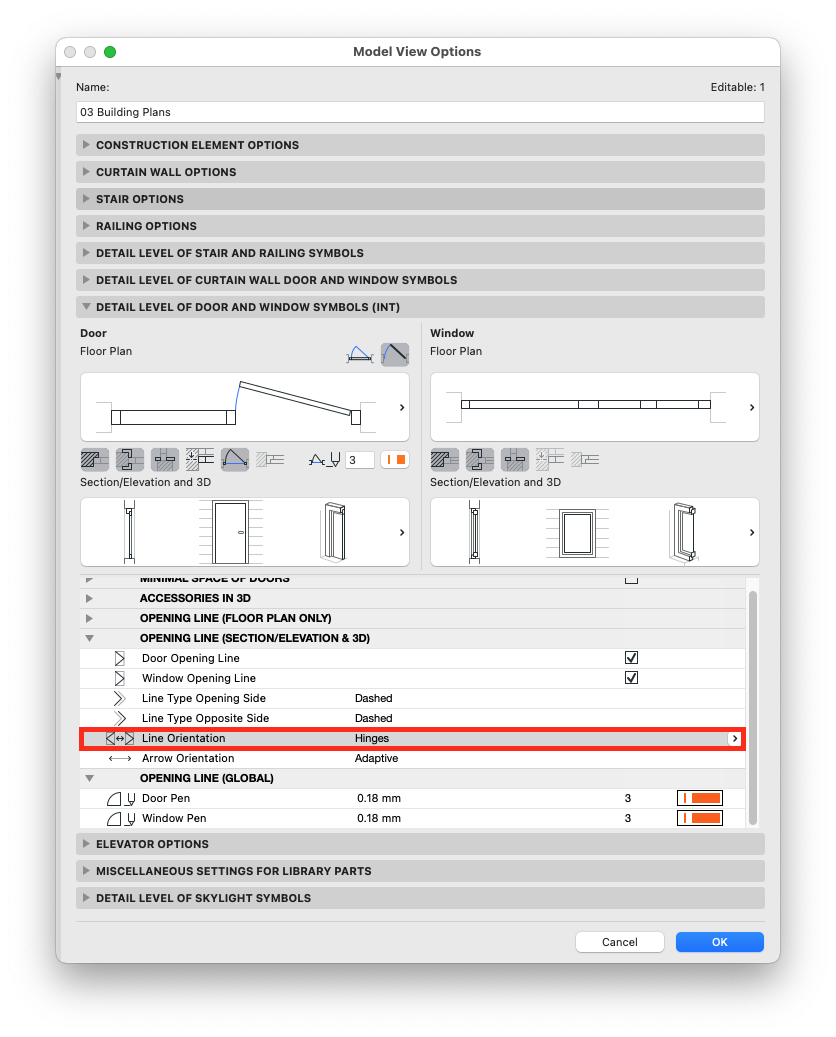

In Model View Options, go to Detail Level of Door and WIndow Symbols. Under Opening Line (Section/Elevation & 3D), look for the Line Orientation tab. Set value to “Hinge”. Click OK to confirm.
