How to summarize schedules?

Issue description

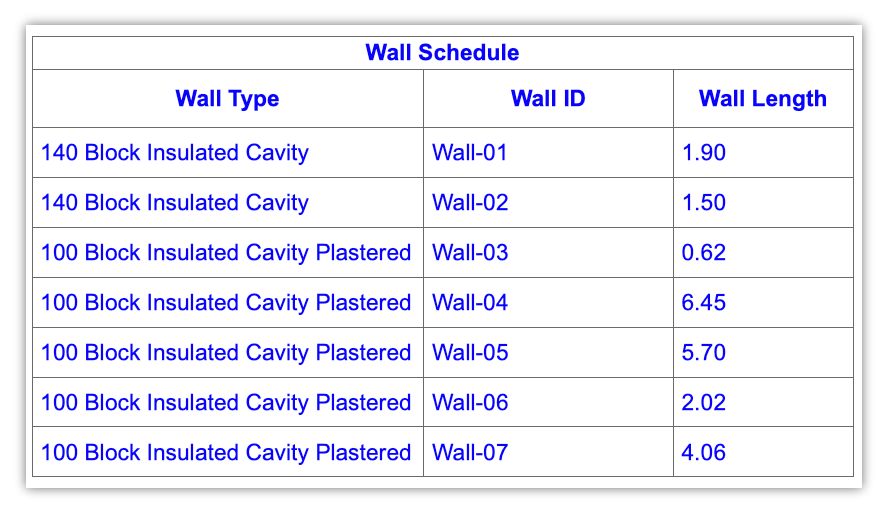

How can walls of the same type be grouped into a single schedule entry, while also displaying each wall ID with its corresponding wall length? Additionally, the schedule should calculate and display the total wall length for each wall type.

Solution

It is possible to create a detailed and organized interactive schedule in Archicad. Here's a step-by-step guide to achieving this:

1. Prepare the schedule scheme settings

•

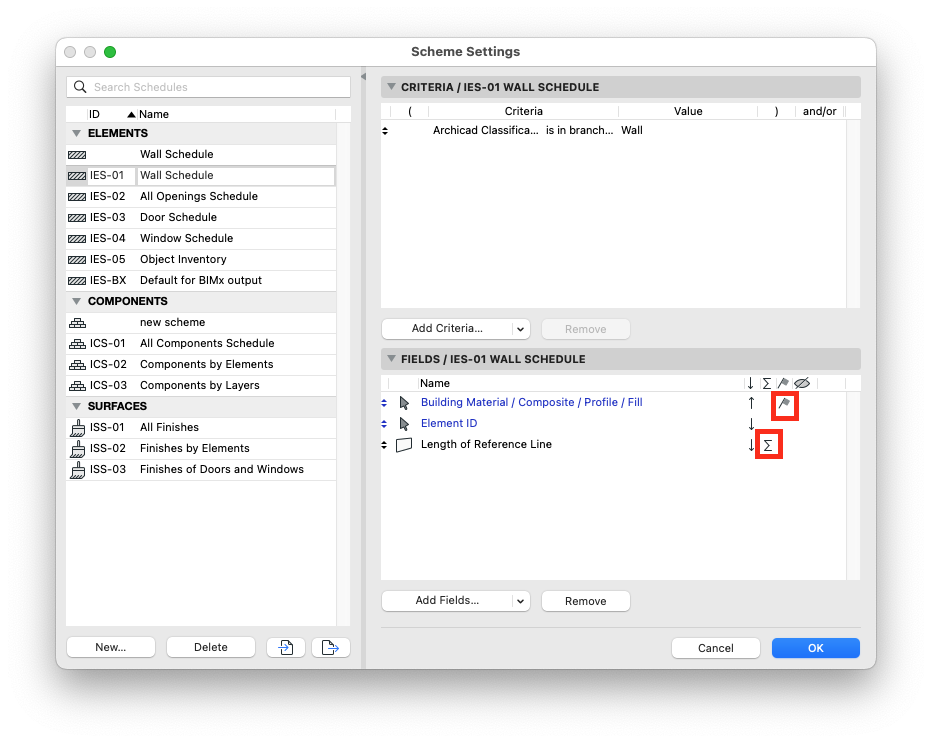

  • Open the Schedule Scheme settings in Archicad.
  • Add the Sum option to the Length of Reference Line field. This setting ensures the total length is calculated for all walls in the schedule.

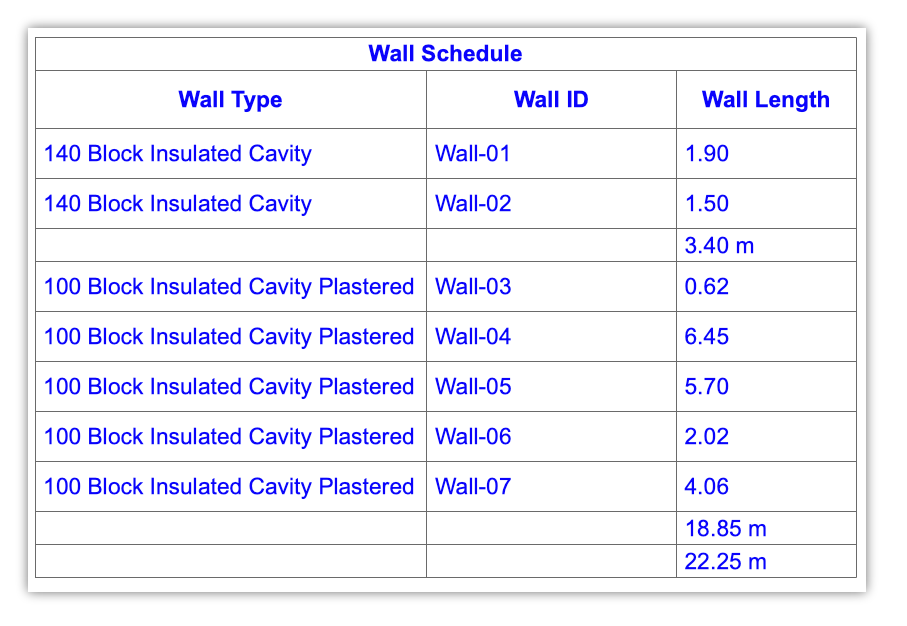

2. Enable subtotals for wall lengths

•
  • Locate the Wall Types field within the Schedule Scheme settings.
  • Activate the Flag Icon for this field, which designates the subtotal display. This action will create a subtotal for wall lengths grouped by type.

3. Merge similar wall types

•

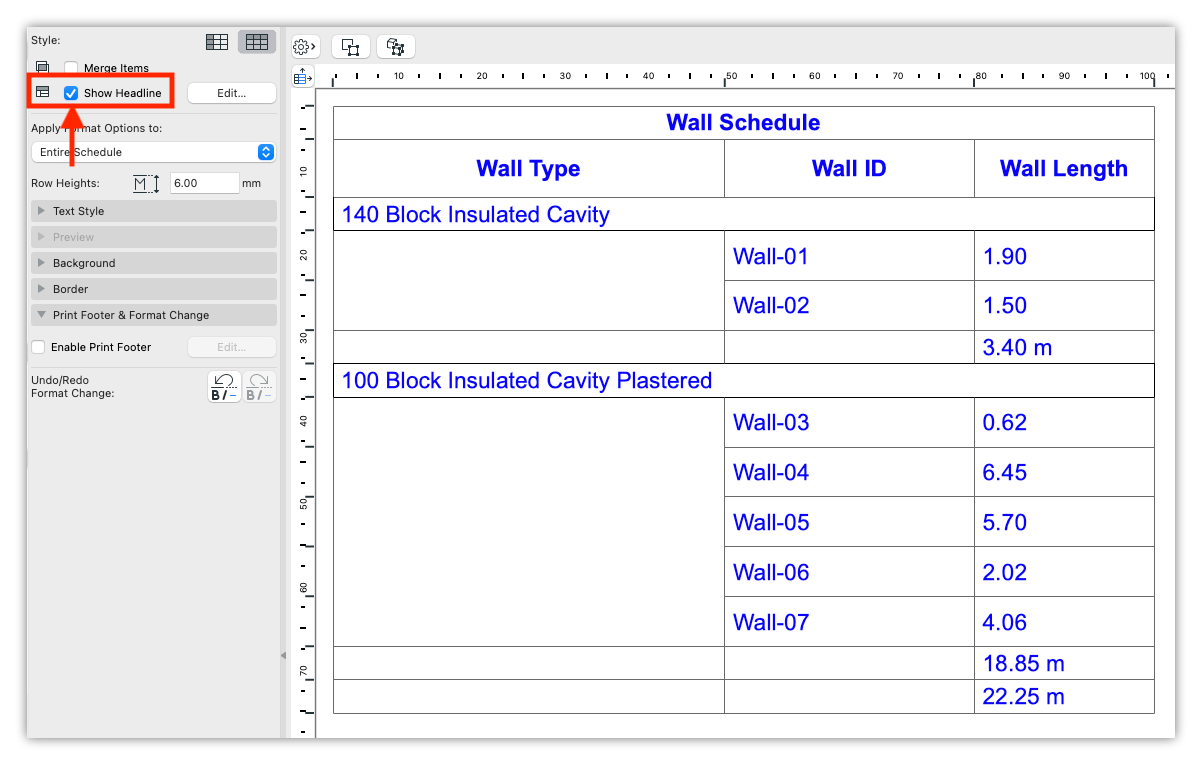

  • In the Schedule settings, enable the Show Headline option.
    This setting combines walls of the same type into a single entry while retaining individual wall IDs and their corresponding lengths.

4. Optional enhancements
   To further refine the schedule, consider leveraging formatting features:

•
  • Add background colors to improve visual clarity and emphasize groupings.
  • Adjust text styles, such as bold or italic fonts, to highlight key data.
