Issue Description

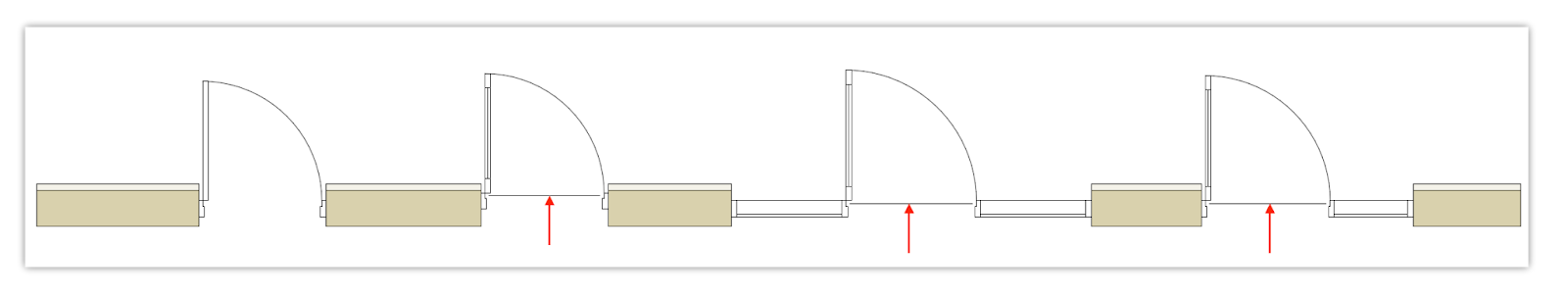

How can I hide the glazing line that appears on plan?
Solution

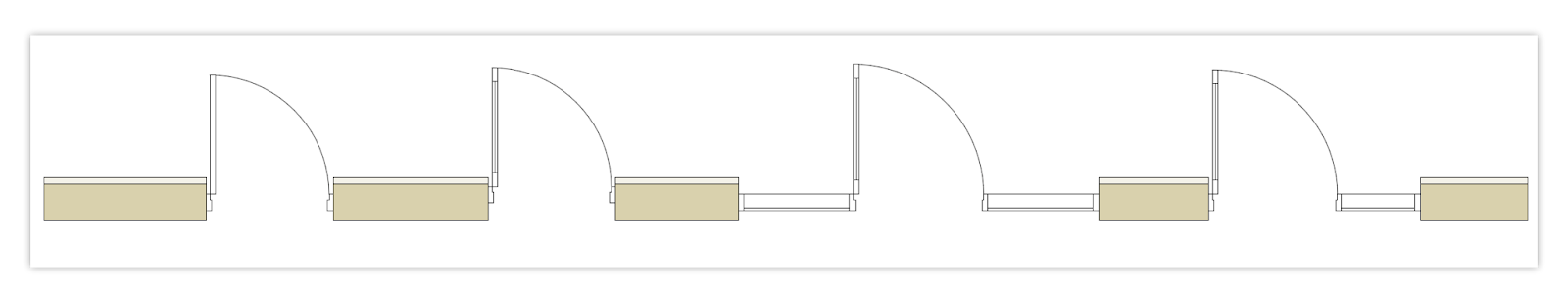

Glazing lines for Doors can be hidden in the Model View Options.

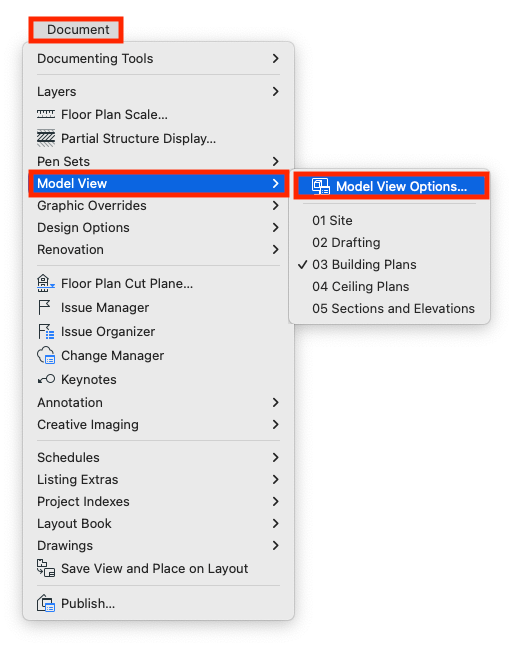

1: Go to Document > Model View > Model View Options.
2: Select the Model View Combination you are using in the current drawing.

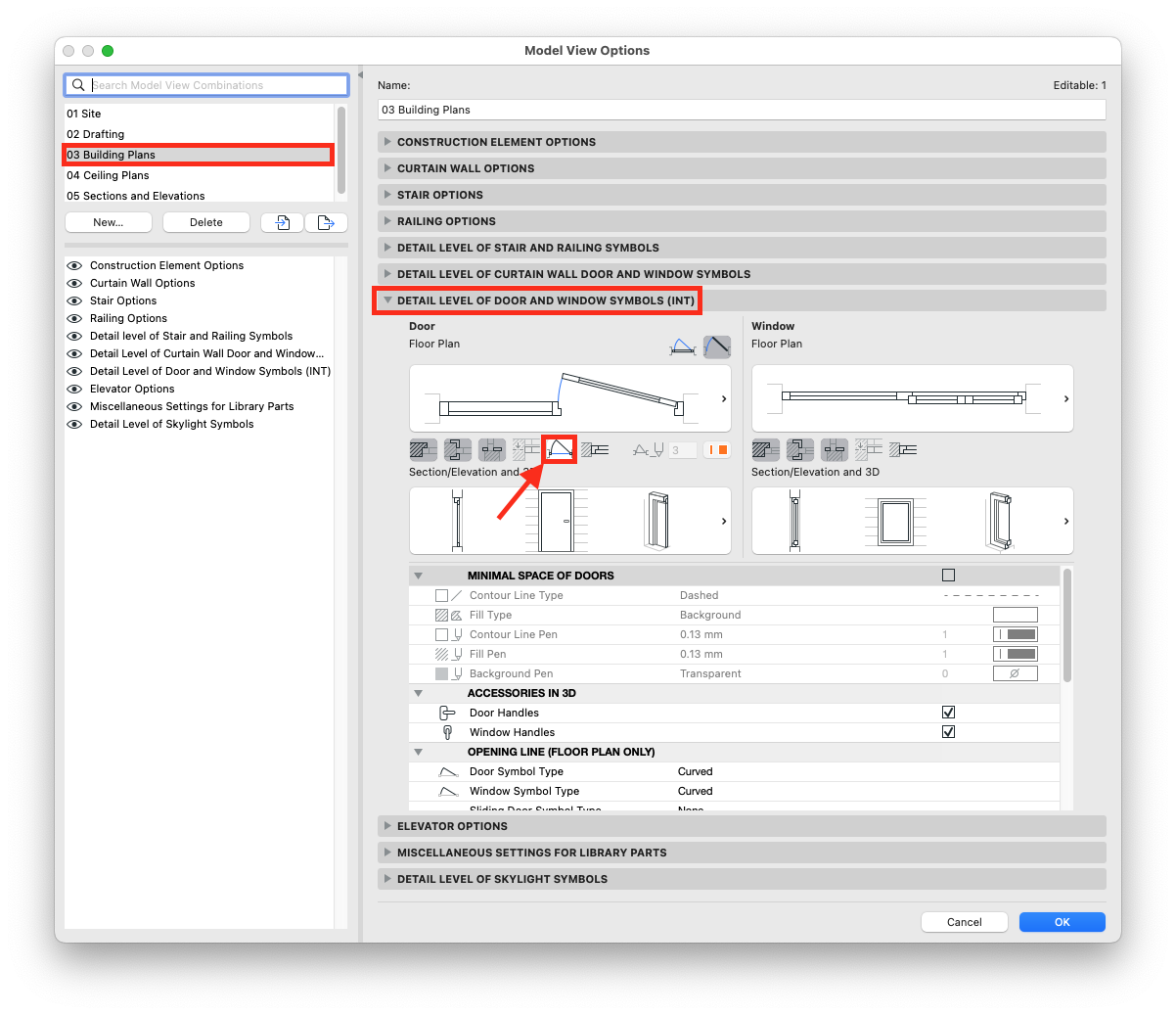

3: Under the Detail Level of Door and Window Symbol tab, disable “Glazing Line”. Click OK to confirm.
