Issue Description

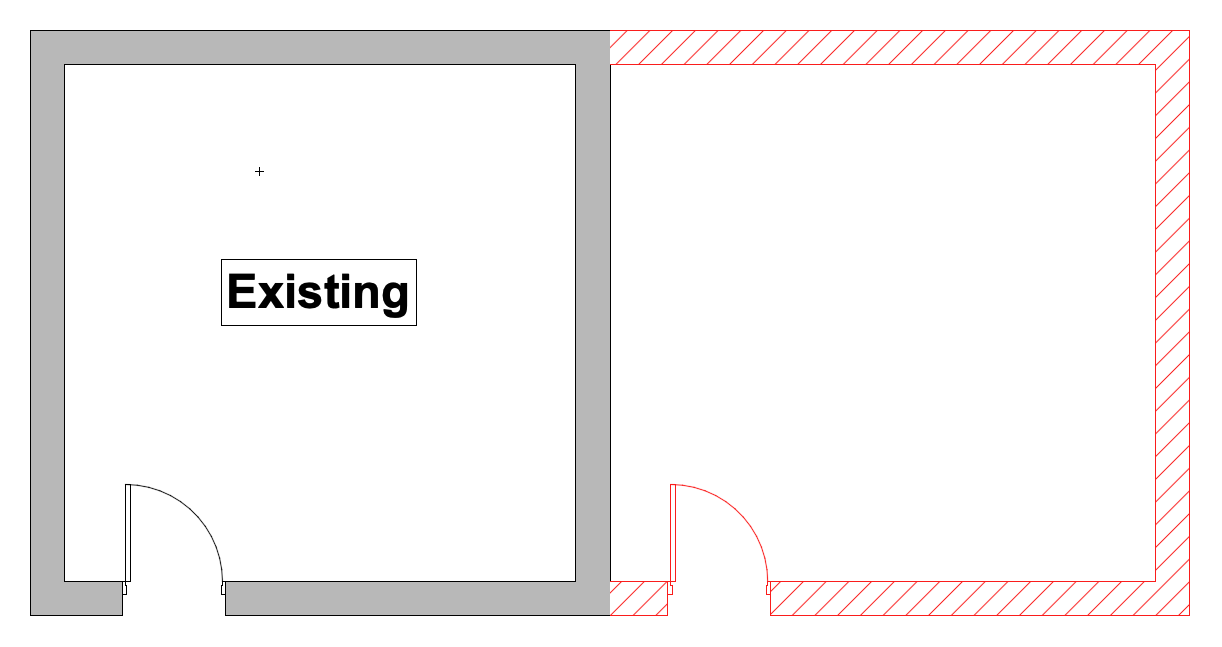

In the process of creating the Existing plans for a Renovation project, a common issue may arise where Zones that need to be demolished appear hidden. This can affect clarity when reviewing the Existing Plan. How can this be adjusted to ensure Zones for demolition are visible?
Solution
Zones designated To Be Demolished can be managed through the Renovation Filter Options. To make these Zones visible in the Existing Plan:
- Go to Document > Renovation > Renovation Filter Options.
- Select the Renovation Filter active in the Existing Plan drawing.
- Under the Elements to Be Demolished tab, uncheck Hide Zone.
If the Zones still do not show, there are few things you can check:
- Layer Combination - Check if the Zone layer is active on the currently used Layer Combination.
- Graphic Override - Zones might be affected by the Graphic Override, it might be set to Transparent so it should be checked.
- Design Options - Check whether the Zone belong to another Design Option that is hidden on the current View point.
