Issue Description
After all Design Options have been deleted or transferred to the main model via the Manager, elements such as walls, columns, beams, slabs, roofs, shells, or morphs no longer connect to each other.
Solution
Check the Design Option Status
In a Teamwork project, if Design Options are Accepted and Loaded or deleted in the Manager while the corresponding elements were not reserved in the Teamwork file, those elements lose their Design Option status. As a result, they no longer intersect with other elements.

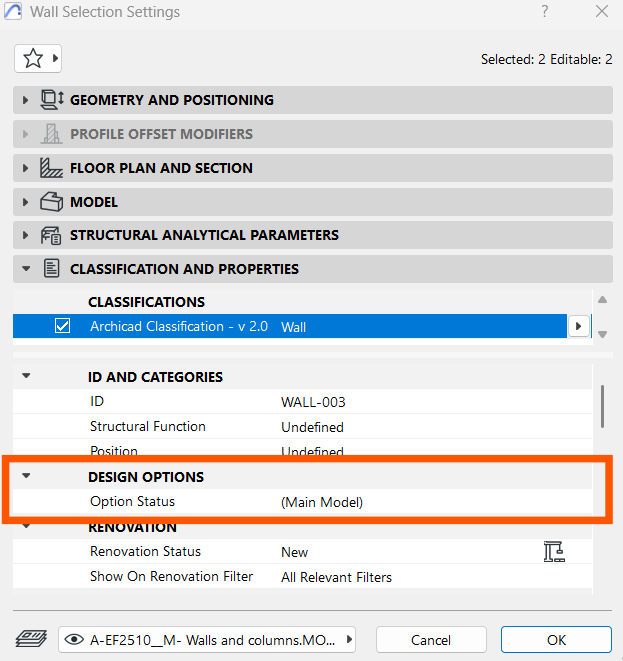

Elements with the status MISSING must be assigned an existing Design Option status, such as Main Model.

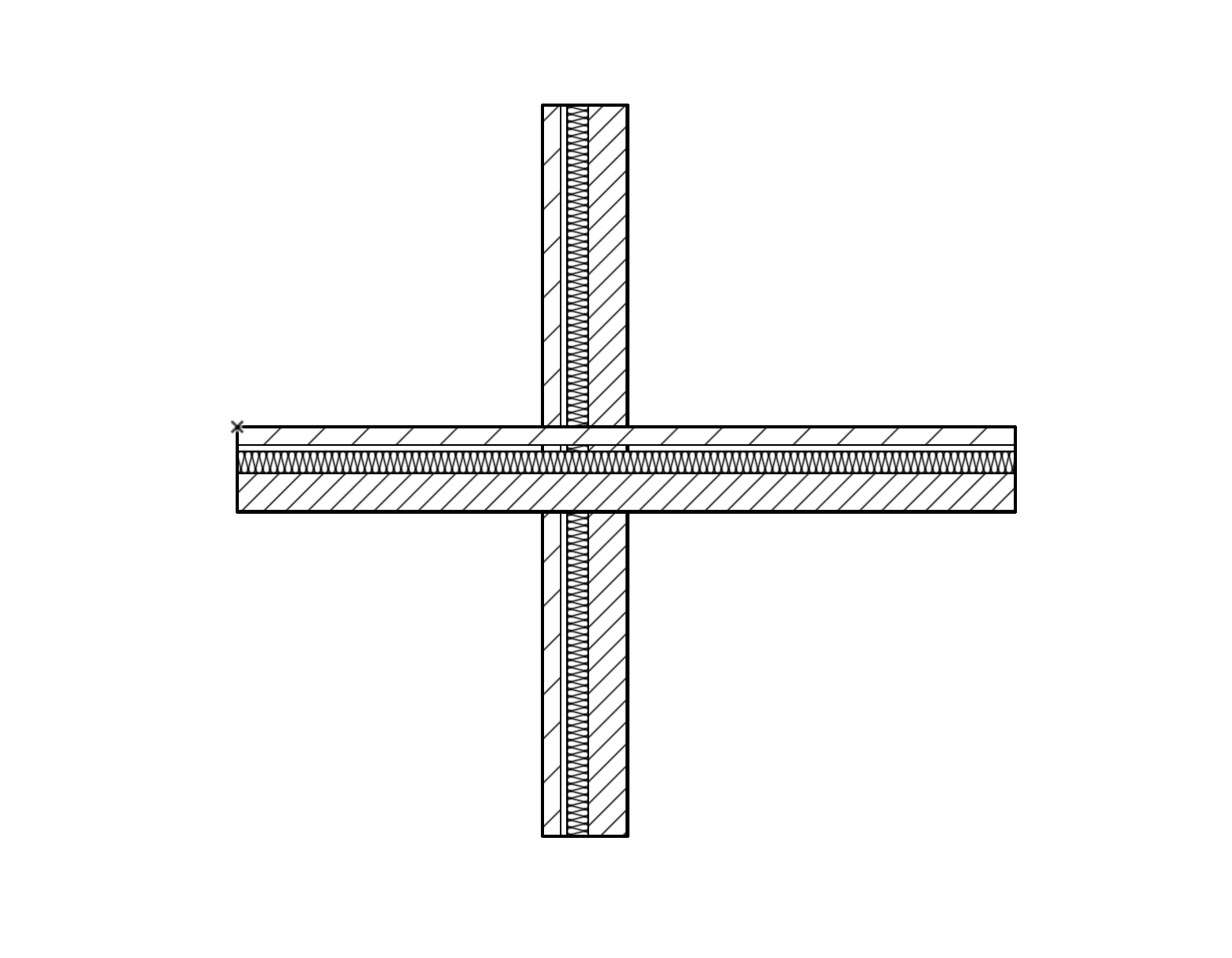

Once the Design Option status is corrected, the elements will intersect as expected.

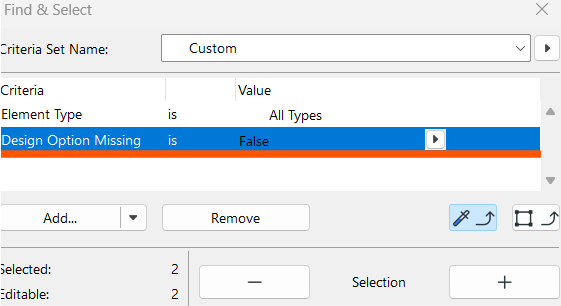

TIP: Missing variants can be identified using the Find & Select function or by creating a schedule with the Variant Missing parameter.
