Issue description
A multi-segment column is created with the Column Tool. However, the segments are always centered on each other and cannot be constructed off-center. For example, the upper column segment should align flush on one side with the segment below it.
Solution
To solve this, you can create new profiles and work with an offset from the Profile Origin.
- Go to: Options > Element Attributes > Profile Manager.

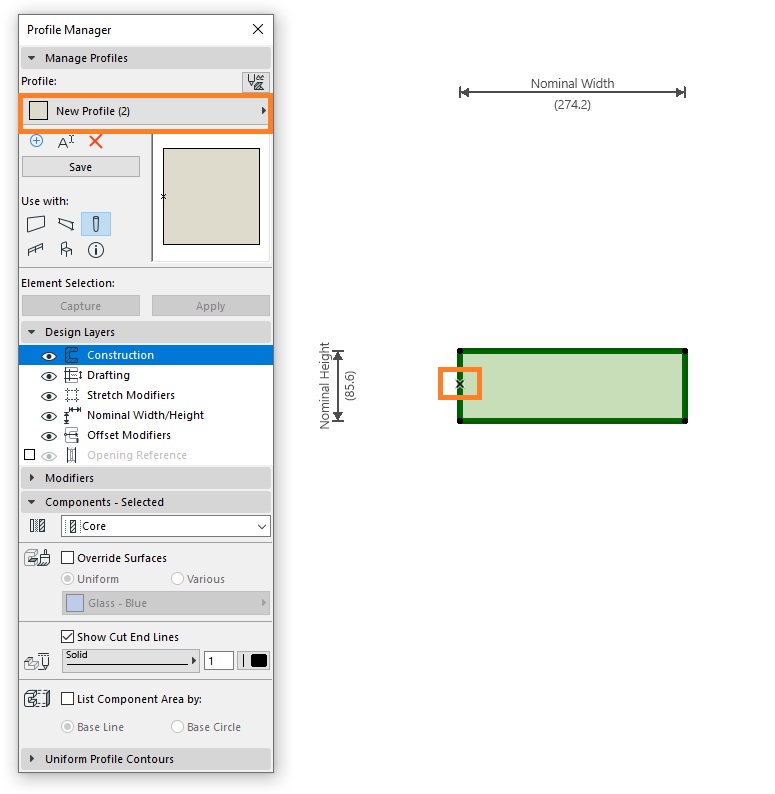

- Create the desired profile in the Profile Manager and align the hatch pattern at the appropriate, desired distance from the profile origin.

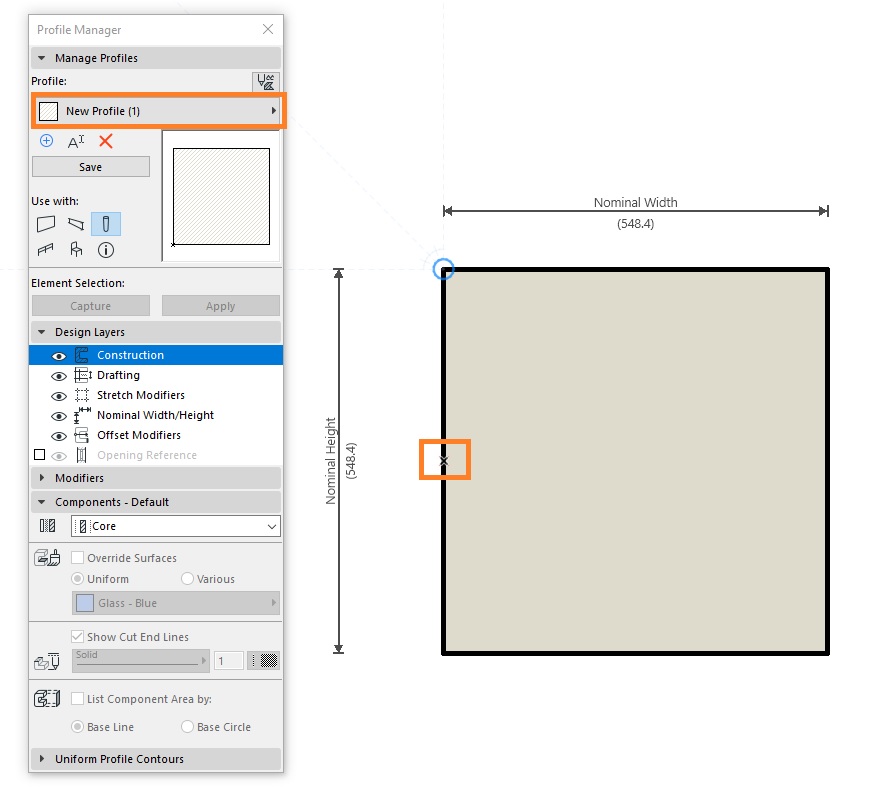

- Create a second profile, based on the same profile origin.

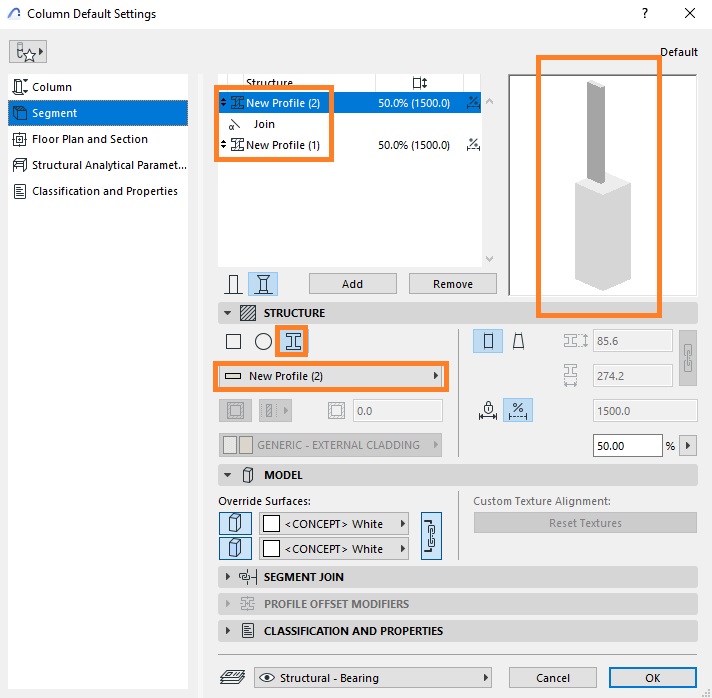

- To set the profile as a Segment for the Column, select the desired column and go to: Column Selection Settings > Segment > Structure
- You will now be able to use the created profiles as segments.
TIP: How to adjust the heights of a column
