No structures are showing in Archicad’s Energy Evaluation

Issue description

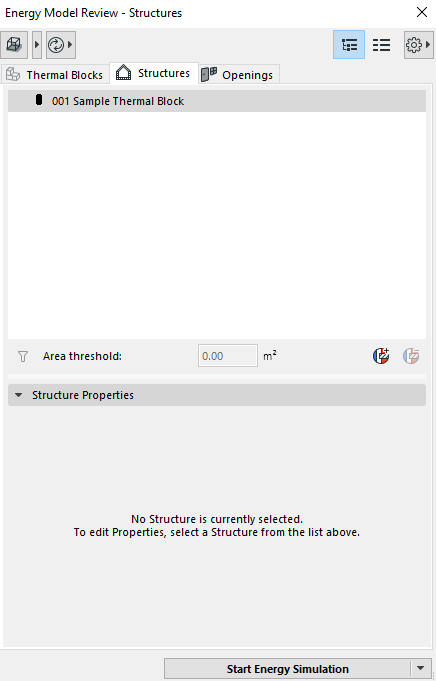

My model has all zones placed but on opening the Energy Model Review tab no structures are present.

Solution

In order for the structures to show you first have to add all zones to Thermal Blocks.

1. Open Energy Model Review:

• Go to Design > Energy Evaluation > Energy Model Review.

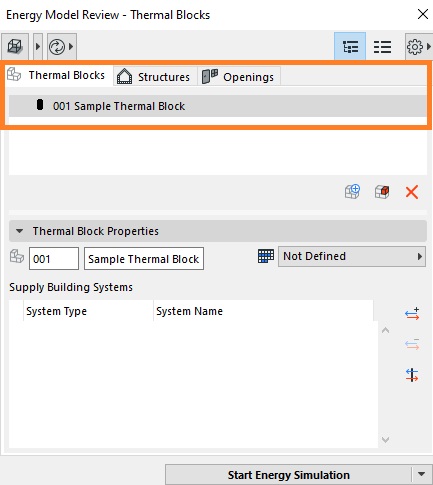

2. Activate Thermal Block setup:

• In the Energy Model Review dialog, select a Thermal Block from the list to which you want to add a zone.

3. Assign zones to a Thermal Block:

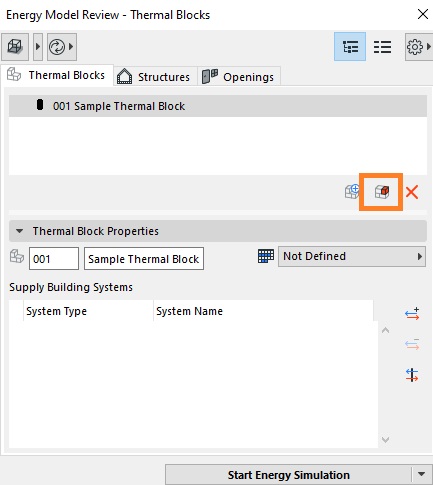

• In the Thermal Block Settings panel, choose Add Zone or drag zones from the list to the thermal block.
• You can add multiple zones to one thermal block, which Archicad will treat as a single entity for energy evaluation purposes.

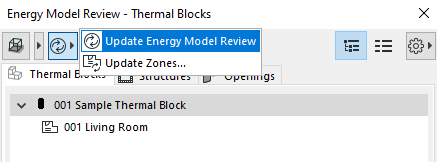

After assigning zones, update Energy Model Review.

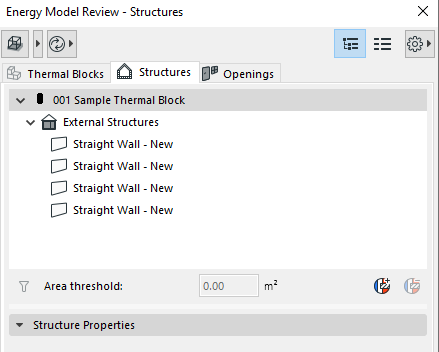

Select the Structure Tab to see the newly added structures.
