Issue description

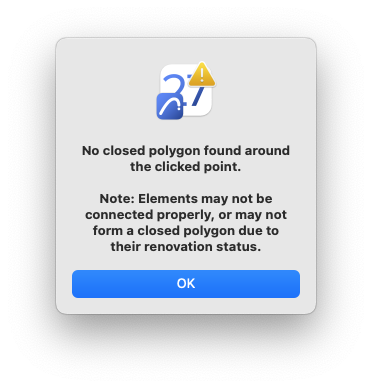

When attempting to place Zones in my project, one room comes back with a message stating, “No closed polygon found around the clicked point.” The Zone cannot be placed automatically.
Solution
This issue generally arises when the Zone tool cannot detect a fully enclosed area. There are instances when the room is seemingly closed by walls but their reference lines are not connected resulting in an incomplete polygon.

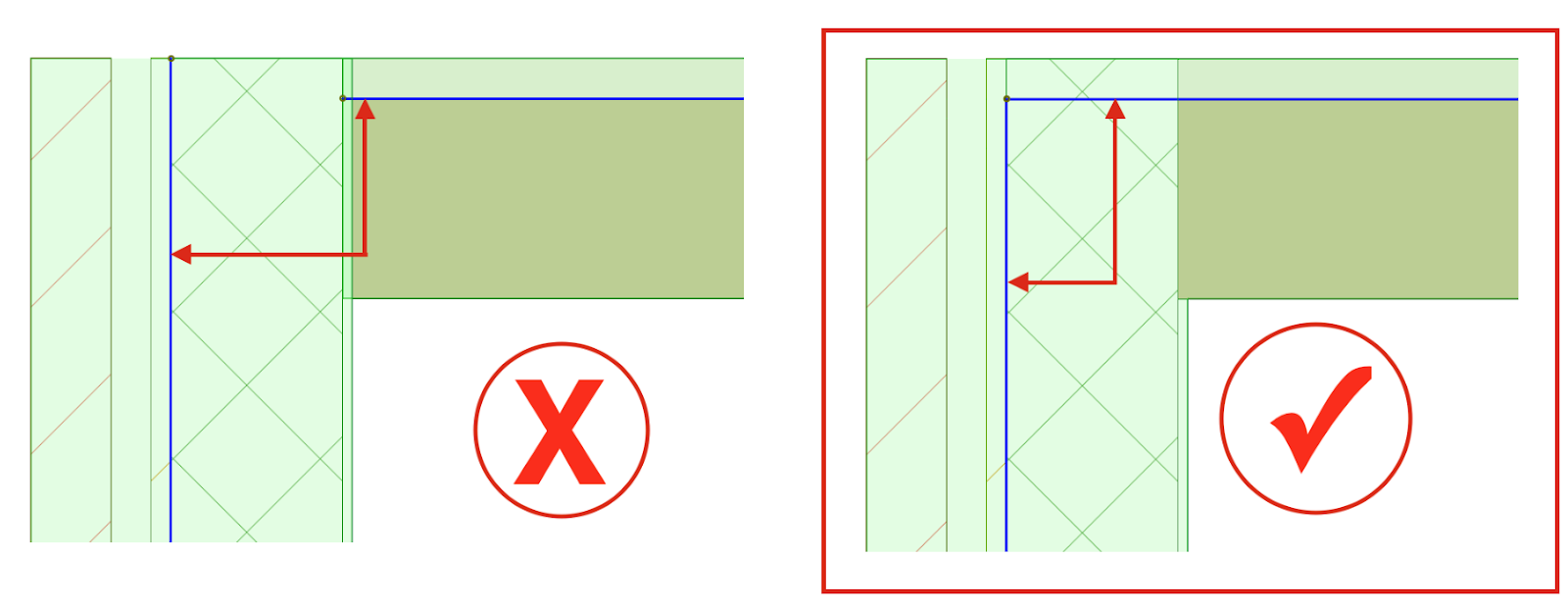

- Check Wall Connections: Ensure that wall reference lines are intersecting properly to form a closed perimeter.
- Confirm Renovation Status: Make sure the walls' renovation status is set to "Existing" or "New."
TIP: for additional details on wall reference lines, see Archicad's Help Center: Wall Reference Line.
