Issue Description

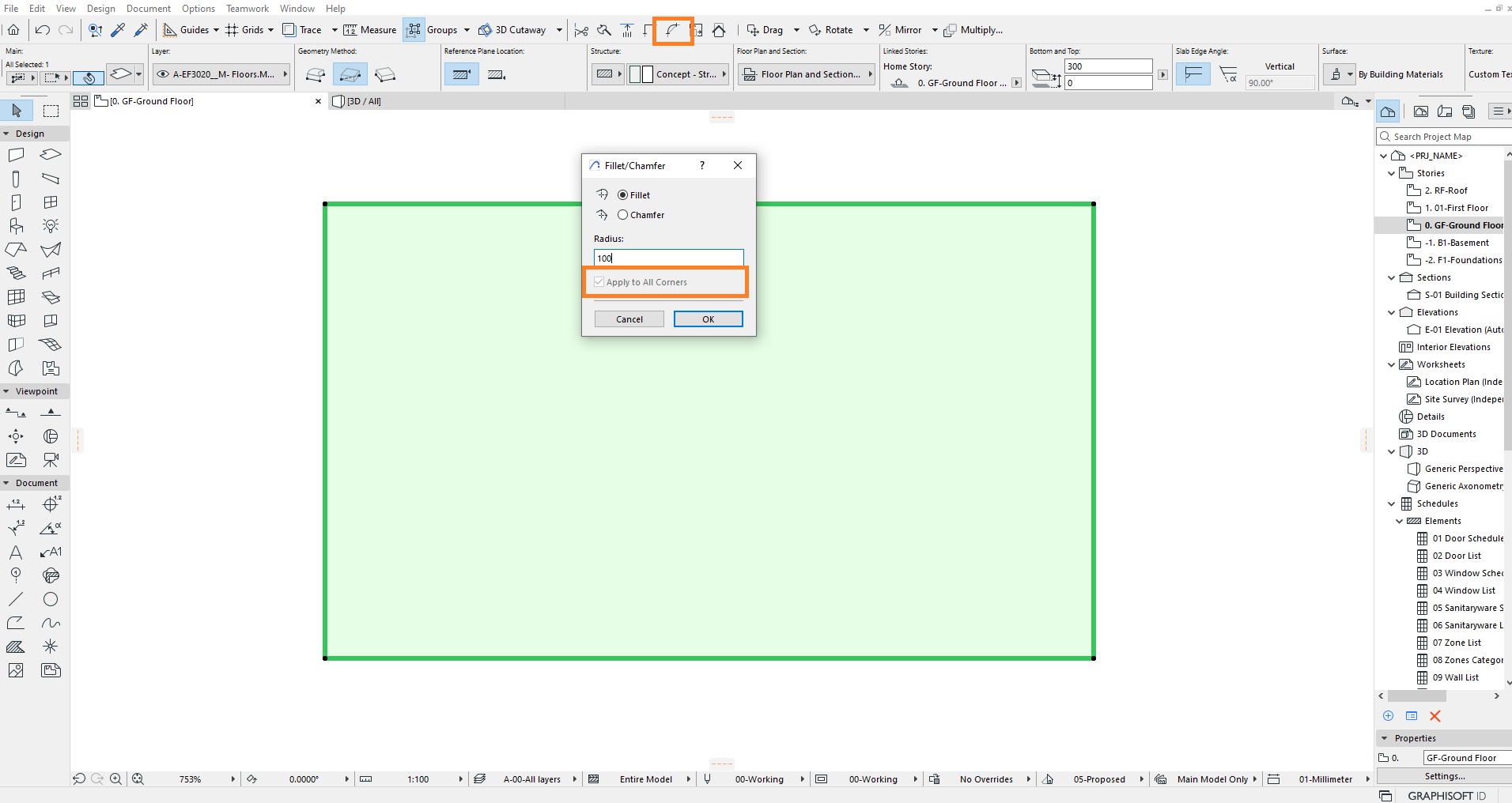

When I select the slab and then use the Fillet/Chamfer tool, the 'Apply to all corners' option appears grayed out, and I am unable to deselect it.
Solution
To fillet a single corner of a slab you need to,
- Select the Slab: Click on the slab you want to modify to make it active.

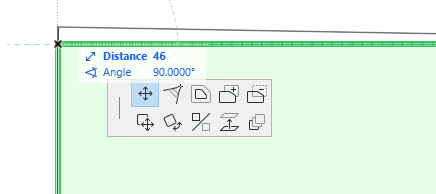

- Edit the Corner: Hover and left hand select the corner node you want to fillet. The pet palette appears.
- Choose the Fillet Option: From the pet palette, select the Fillet/Chamfer tool.
- Set the Fillet Radius: Enter the desired radius in the Fillet Radius field that appears.

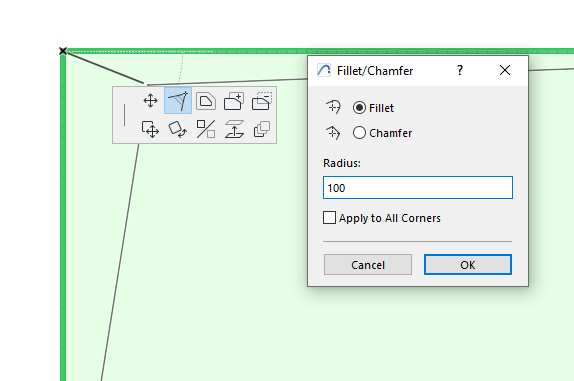

- Uncheck the 'Apply to All Corners'
- Apply the Fillet: Click to confirm, and the fillet will be applied only to that corner.
This will round off just the selected corner without affecting the others.
