How to show all walls, cut or uncut with the same fill pattern.

Issue description

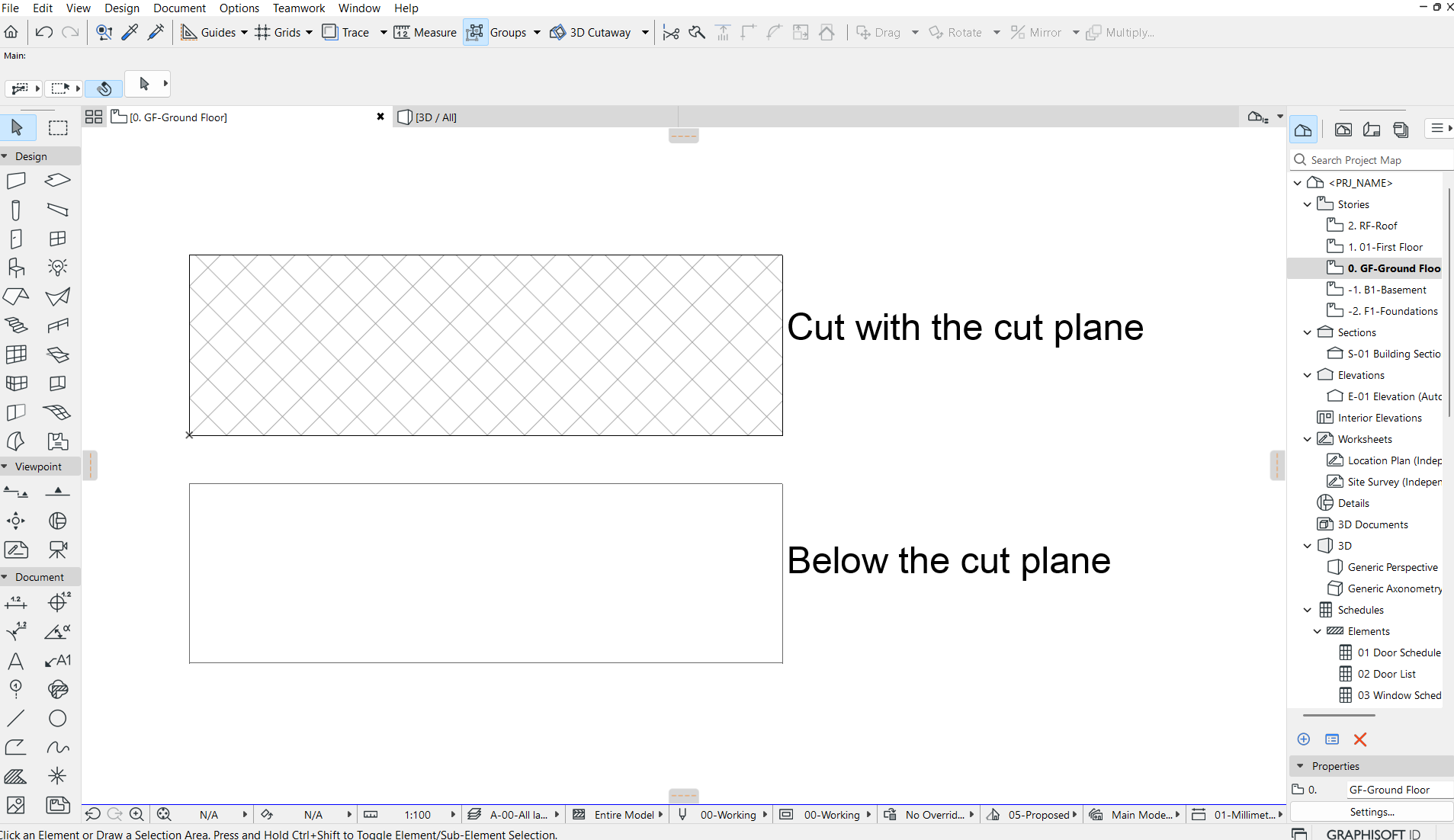

Walls that are uncut by the cut plane, such as foundation walls, do not show a cover fill or color in the floor plan.

Solution

You can display a cover fill on uncut walls by applying a Graphic Override. Follow these steps:

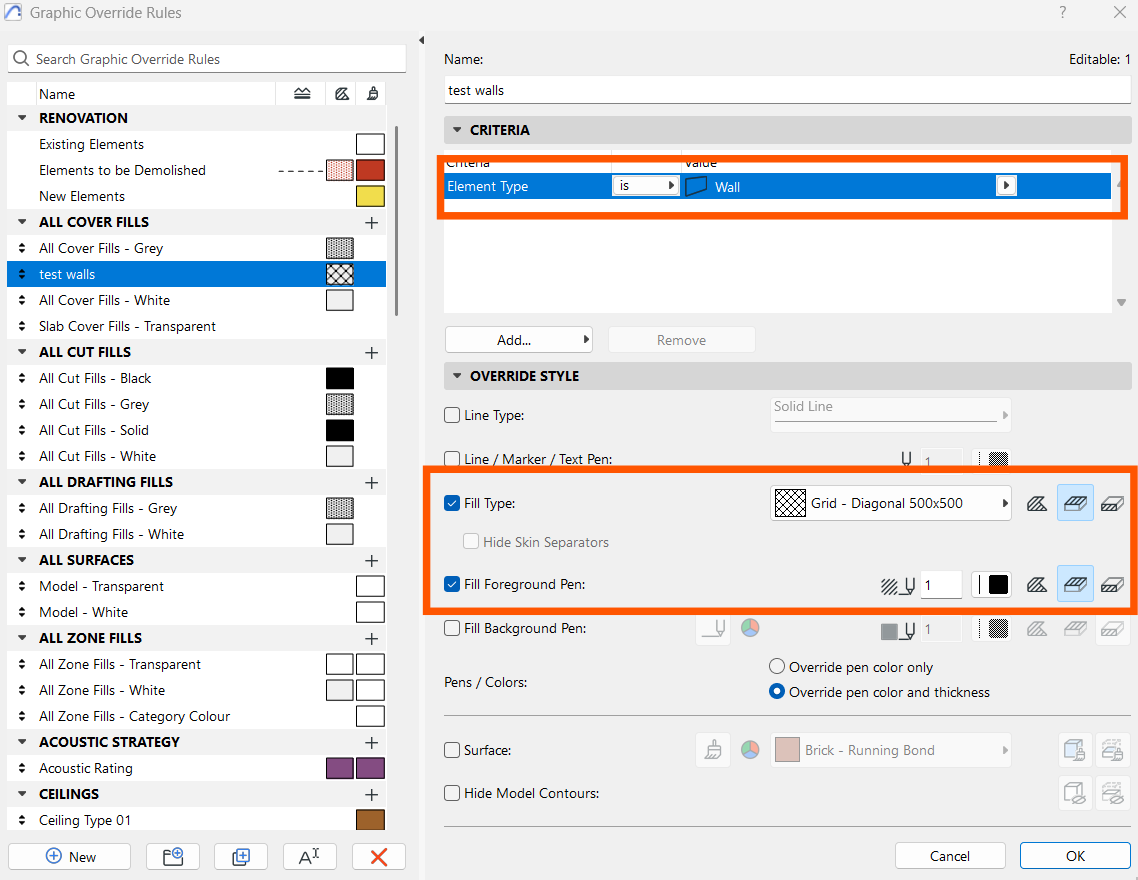

1. Go to Documentation > Graphic Overrides > Graphic Override Rules…
2. Create a new rule and set the Criteria so it applies to walls only.
3. Under Override Style, enable Fill Type and choose the fill you want. Make sure the override targets the Cover Fill.
4. Still under Override Style, enable the Fill Foreground Pen and select the pen color you want. Again, apply this override to the Cover Fill only.


5. Apply the Graphic Override to your view or view settings.

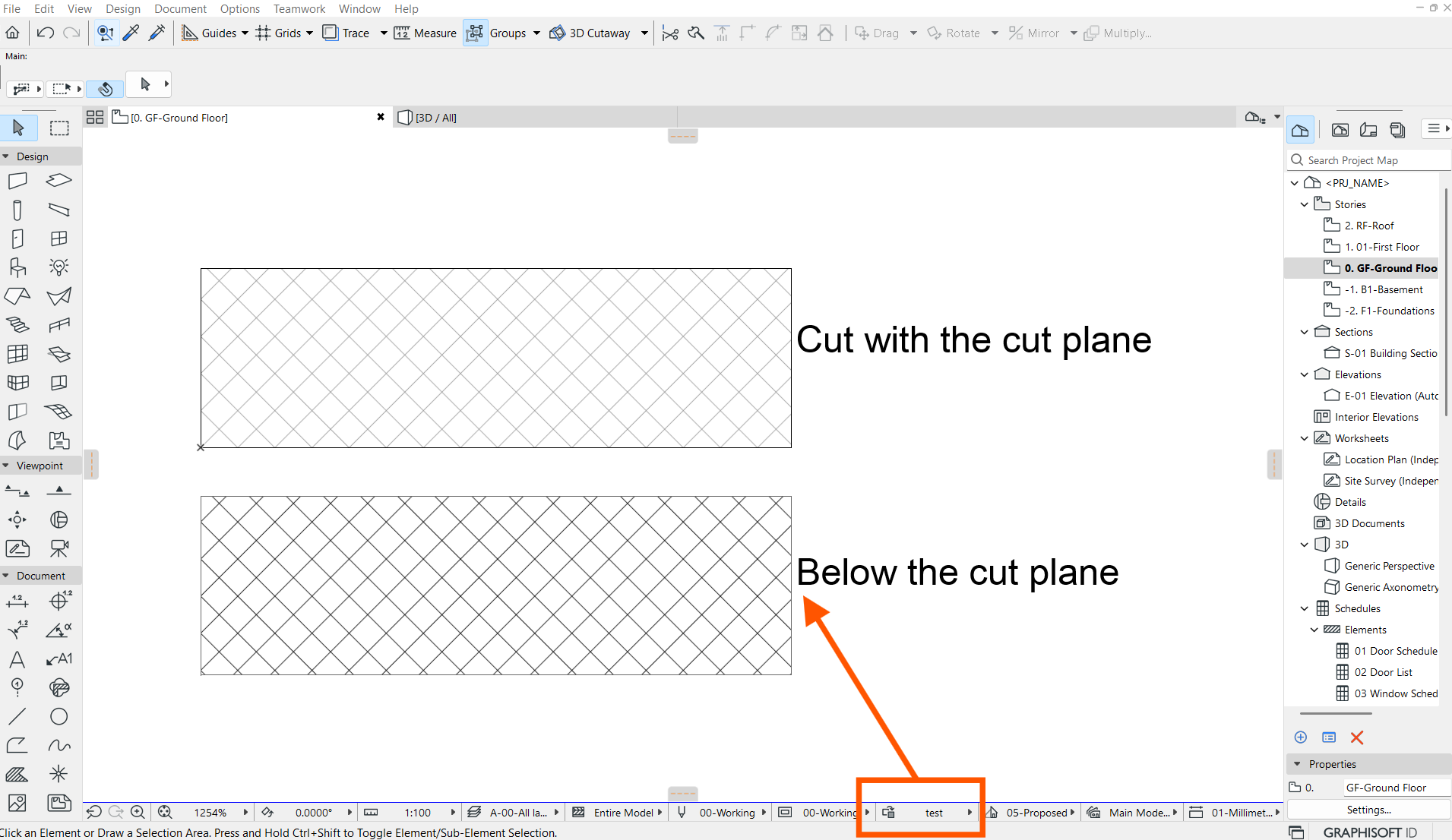

6. After applying such settings, your elements should look as shown below.
