Issue Description

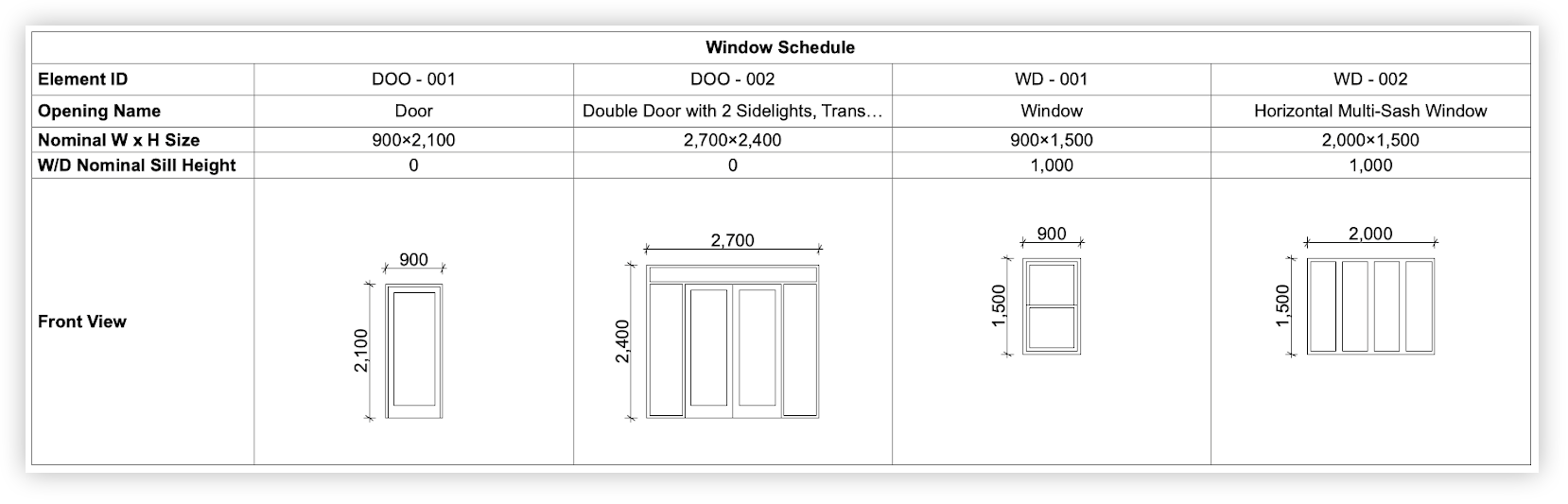

The total glazed area for doors and windows should be included in the schedule. How do I add this parameter and total the value?
Solution

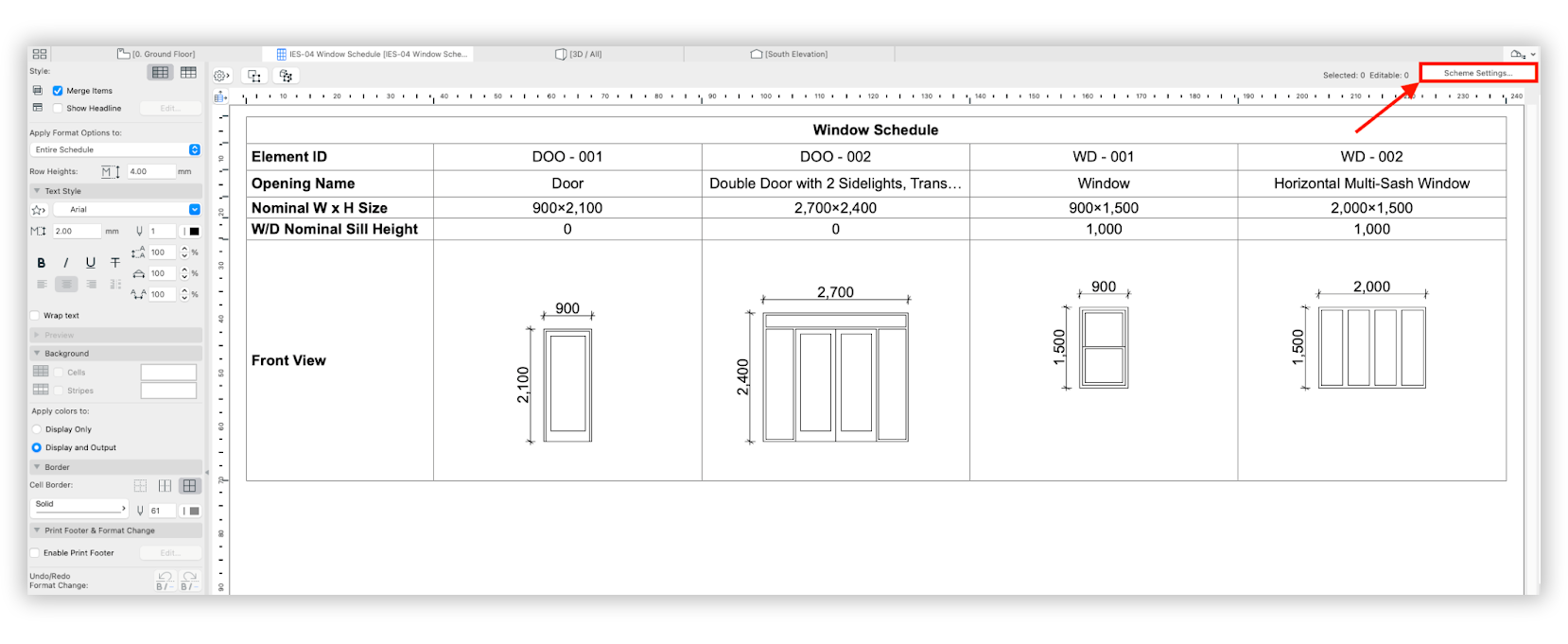

1: In the Doors and Window Schedule, go to Scheme Settings.

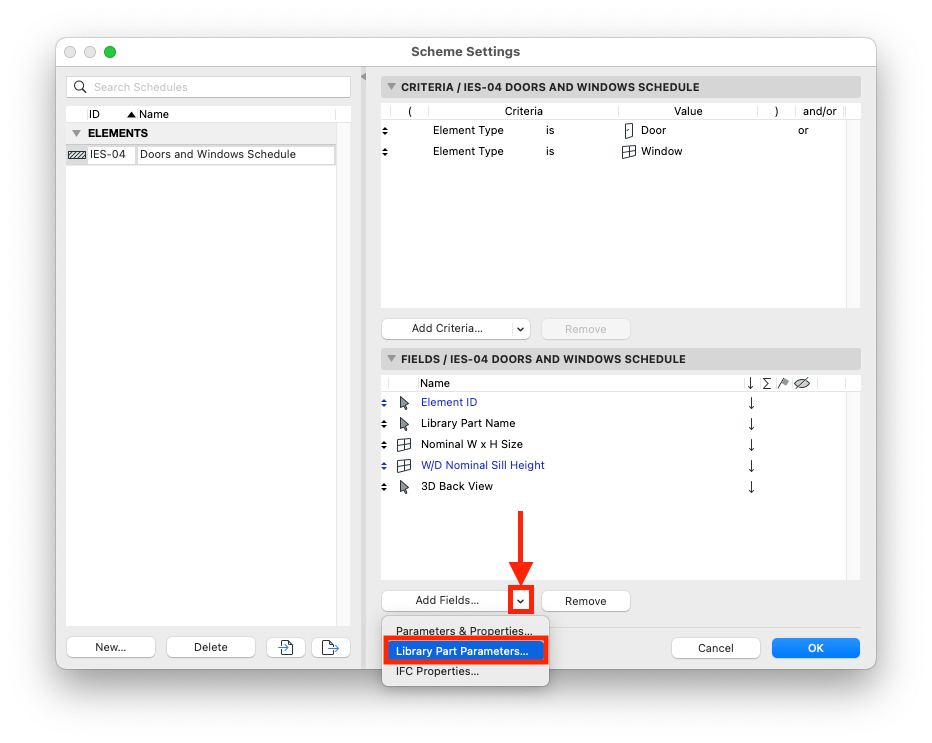

2: In the Scheme Settings dialog, proceed to the Fields section. Here, you will find an Add Fields button accompanied by a dropdown arrow. Click on this dropdown arrow then select Library Part Parameters.

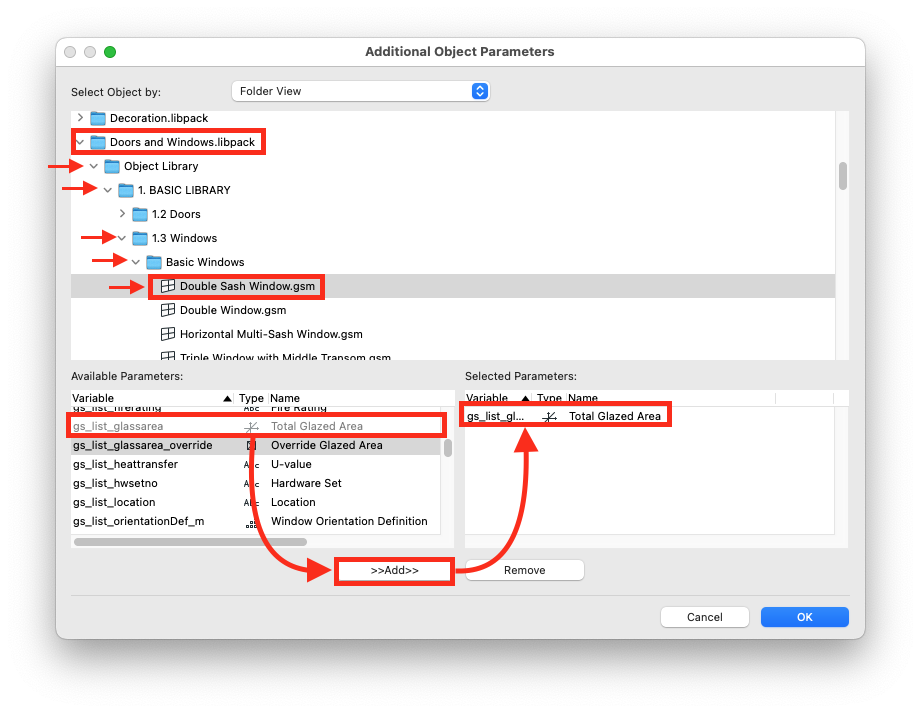

3: Inside Additional Object Parameters,
-
- Locate an object of either Door or Window to view it’s available associated parameter.
- Once you have selected the object, a list of available parameters will be displayed. Look for the variable labeled “gs_list_glassarea”, which is associated with the name “Total Glazed Area.”

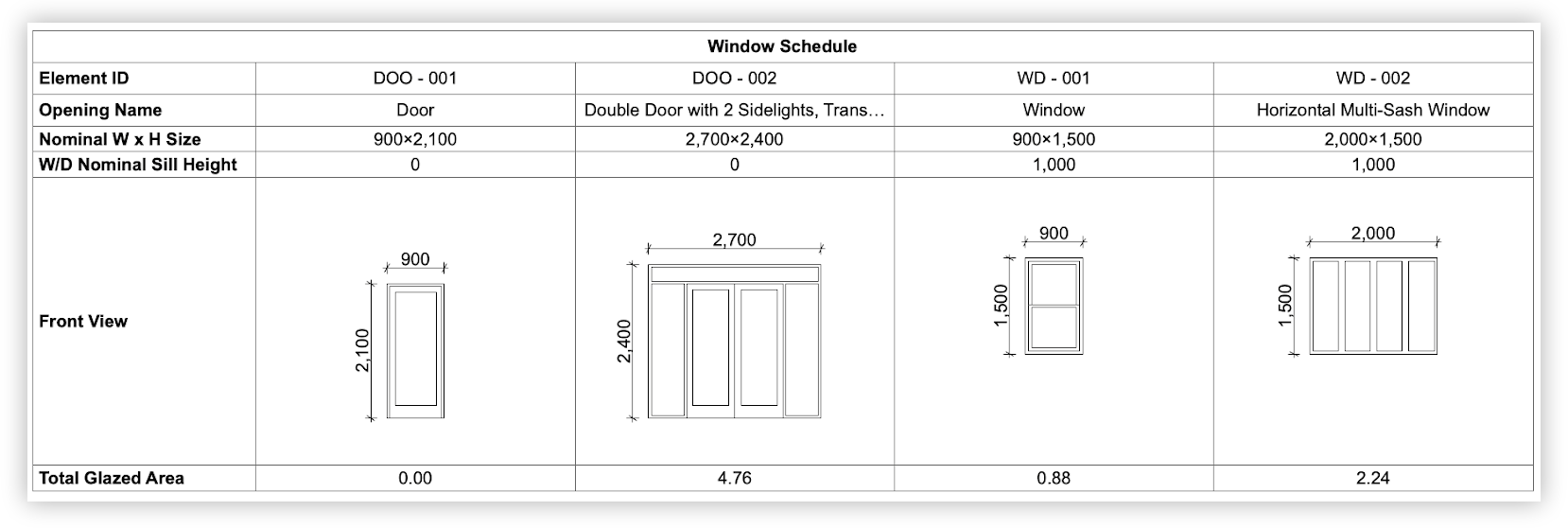

- Select the Total Glazed Area parameter and click the Add button to include it in your schedule. Click OK to confirm and exit the dialog.
