Issue Description
A beam running beneath a ceiling slab cannot be displayed with dashed contour lines in the floor plan and only appears with solid lines.
Solution
1. Check Model View Options

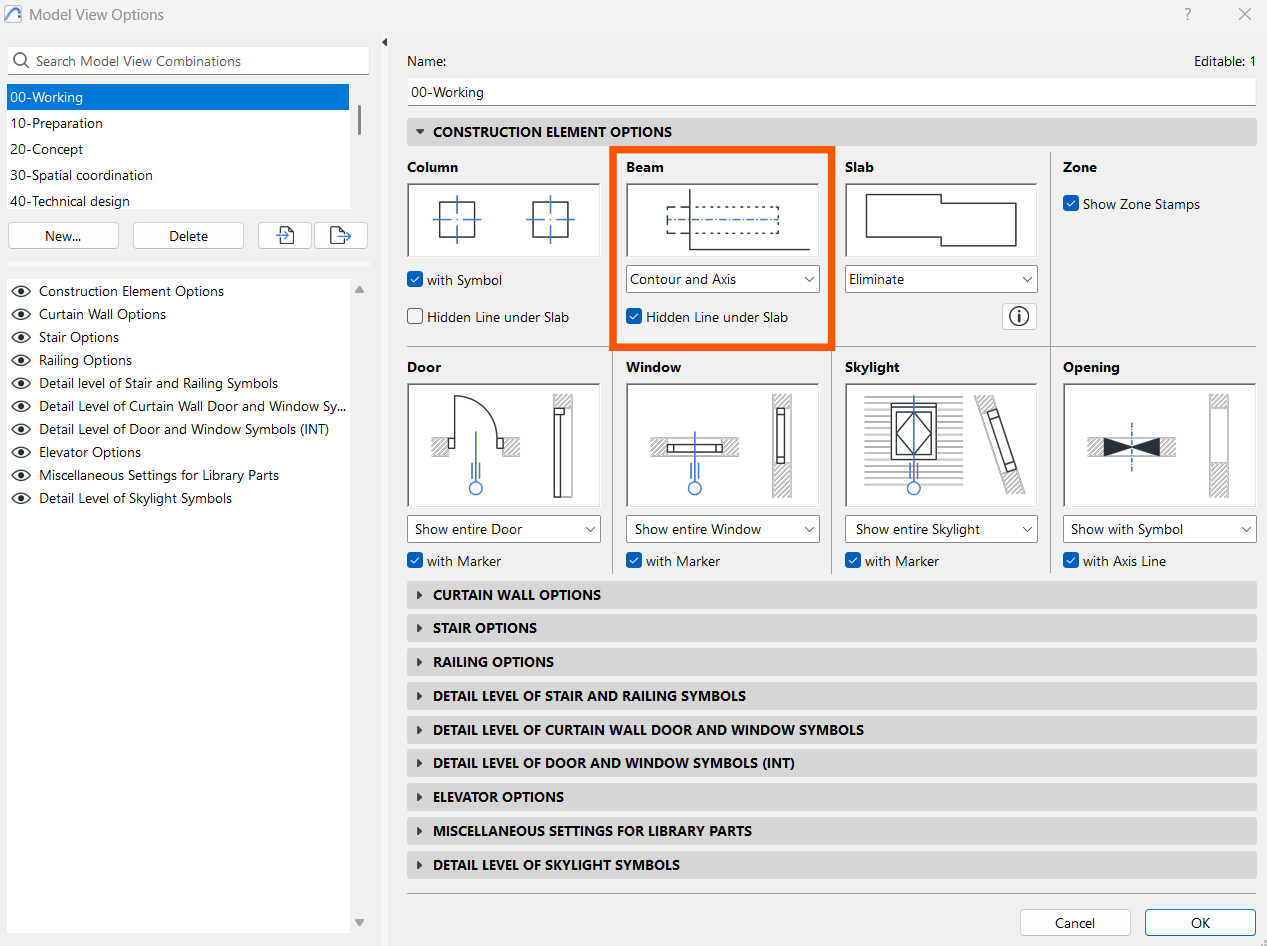

Documentation > Model View > Model View XY > Construction Element Options
-
For beams, "Contour and Axis" or "Contour Only" must be selected.
-
The option "Hidden Line Under Slab" must also be enabled.
2. Check Beam Settings

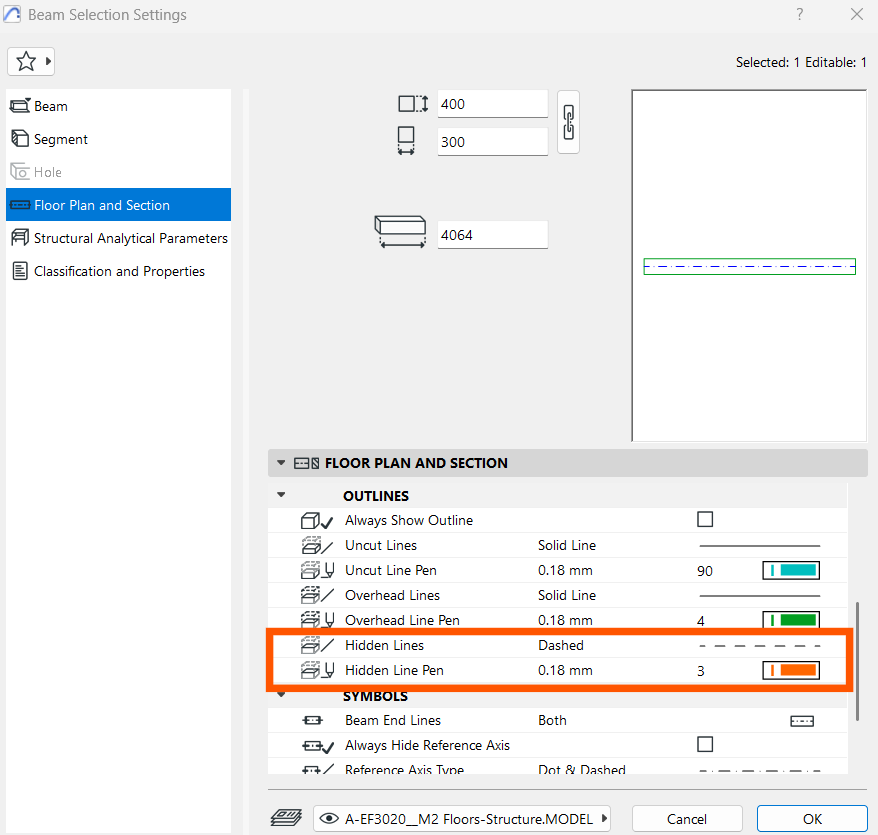

Beam Selection Settings > Floor Plan and Section.
-
The desired line type for hidden lines must be set.
