Issue Description

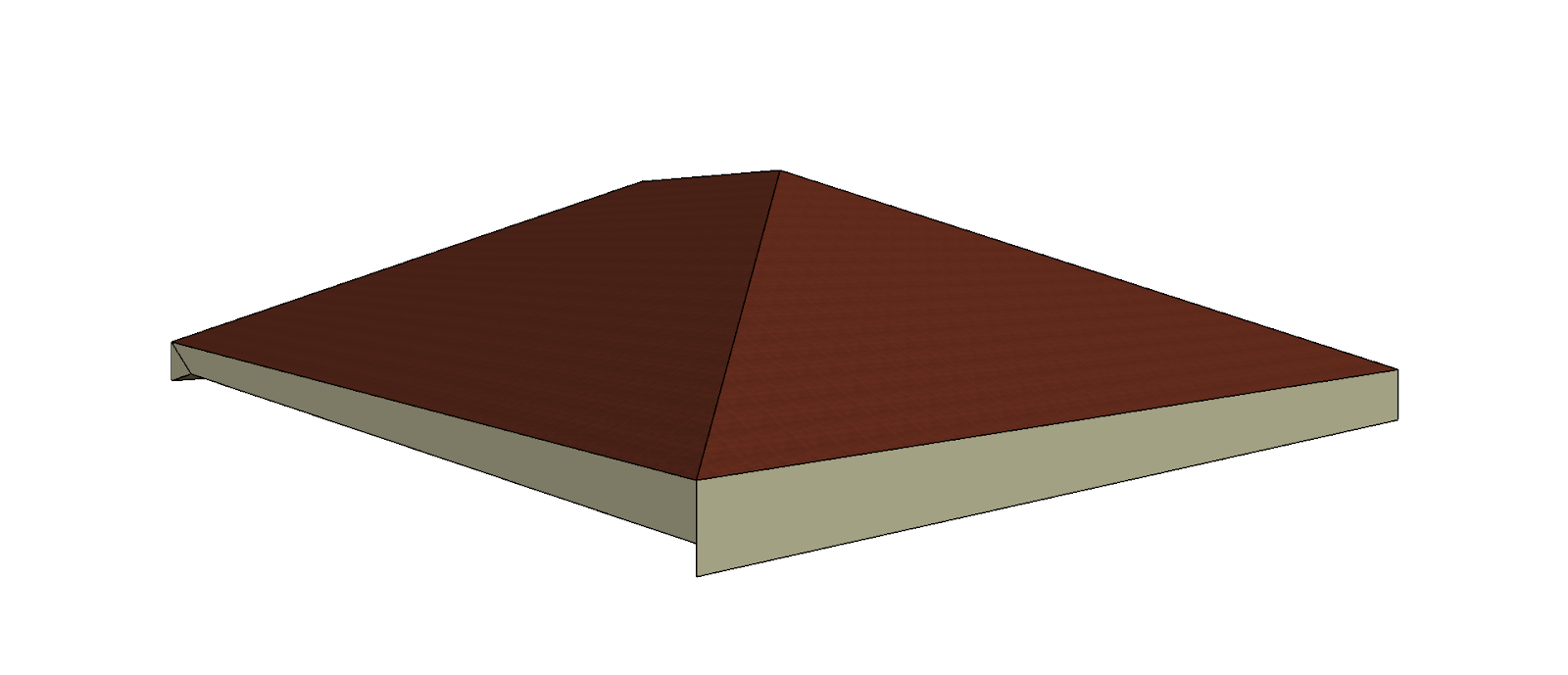

In a current project, roof edges are not adapting to changes made in the Roof Settings. After modifying an edge, it seems locked and does not reset as expected. How can roof edges be reset to align with the desired settings?
Solution
To reset roof edges, follow these steps:
- Select the roof in your project and open the Roof Selection Settings.
-

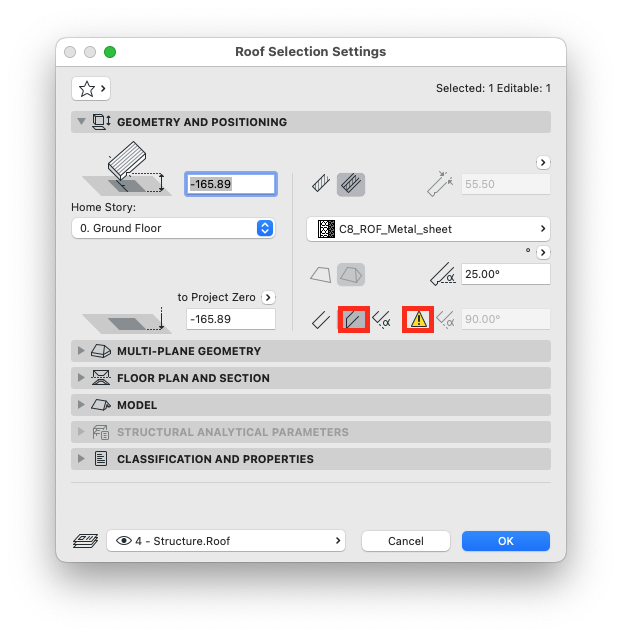

In the Edge Settings panel, look for the yellow exclamation mark (!), indicating a modified edge.
-

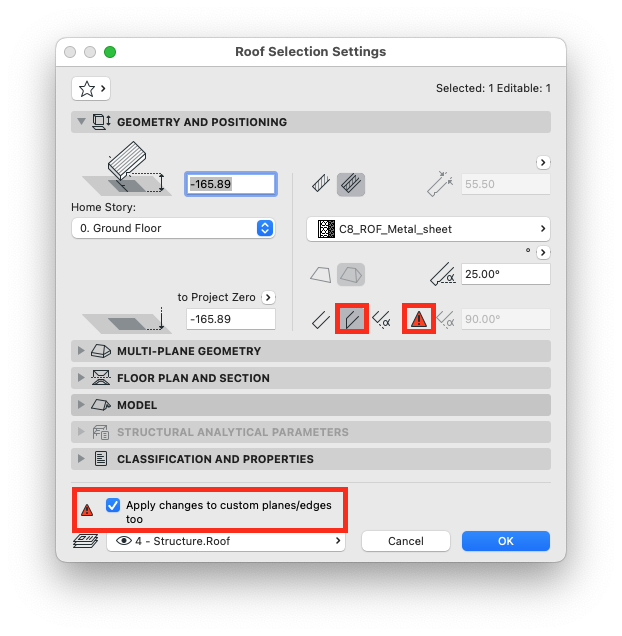

Change the edge setting from Perpendicular to Vertical, then switch it back to Perpendicular. The exclamation mark will change to red, confirming the adjustment. Make sure the note below the Settings reads: "Apply changes to custom planes/edges too".
-

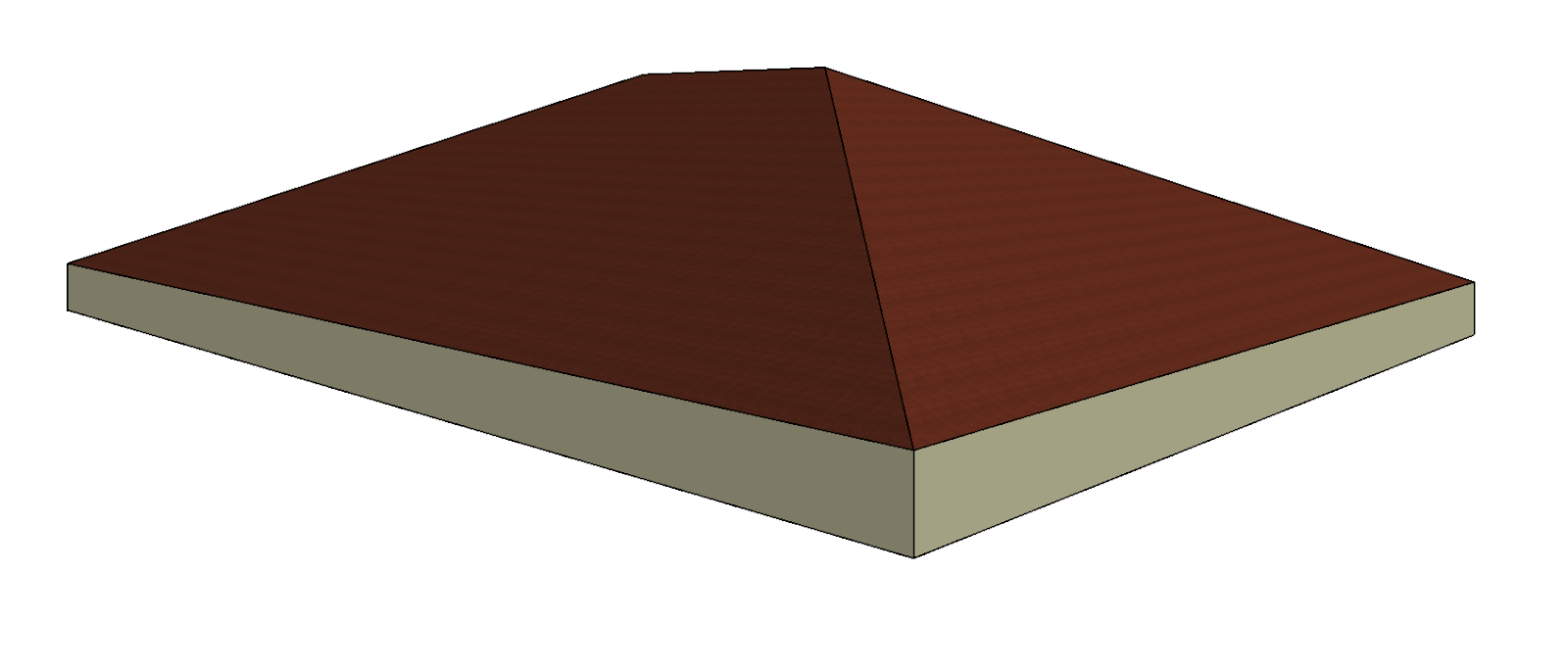

Click OK to apply the changes, and the roof edges will reset accordingly.
