How to remove the line between two slabs at the same level

Issue description

I have two leveled slabs with similar finishes, but they were built separately for scheduling purposes. I want to show a no-line transition between them. Is there a way to do this in Archicad?

Solution

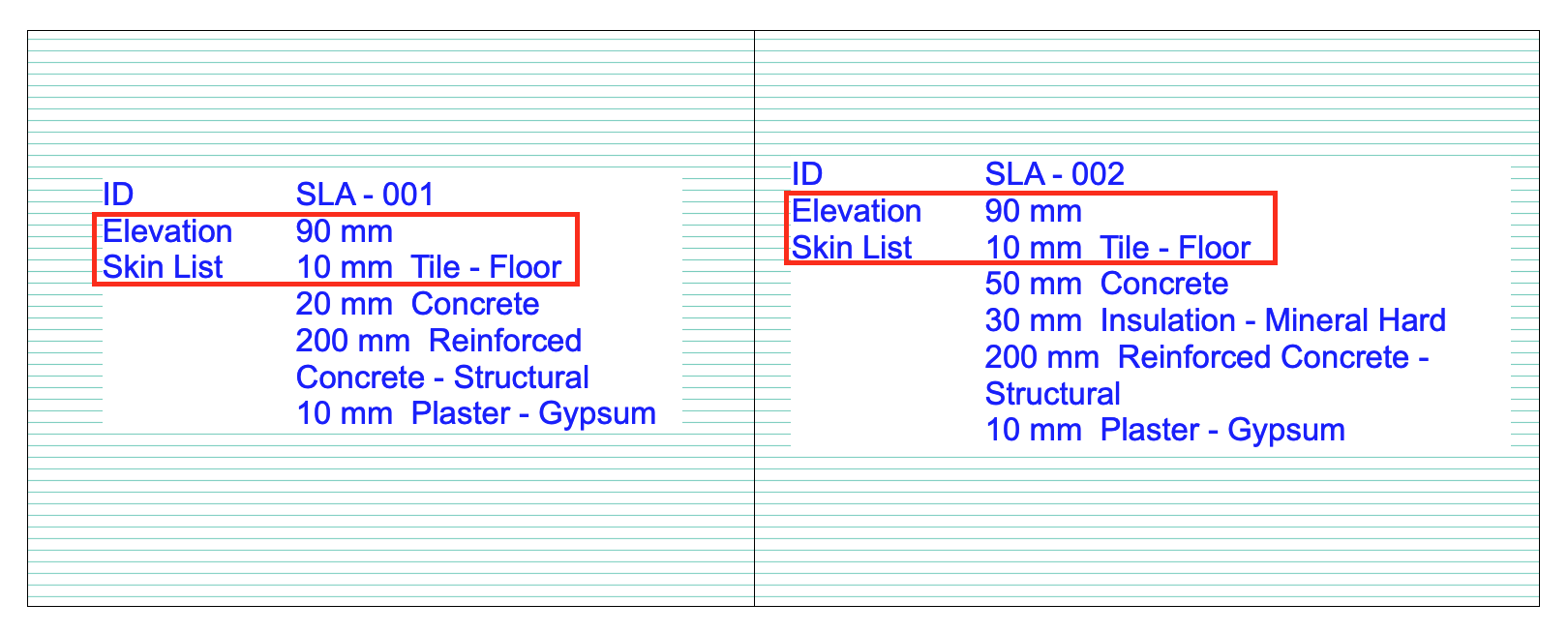

For adjoining slabs with the same top surface, top elevation, and cover fills, the slab transition line can be turned off in the Model View Options.

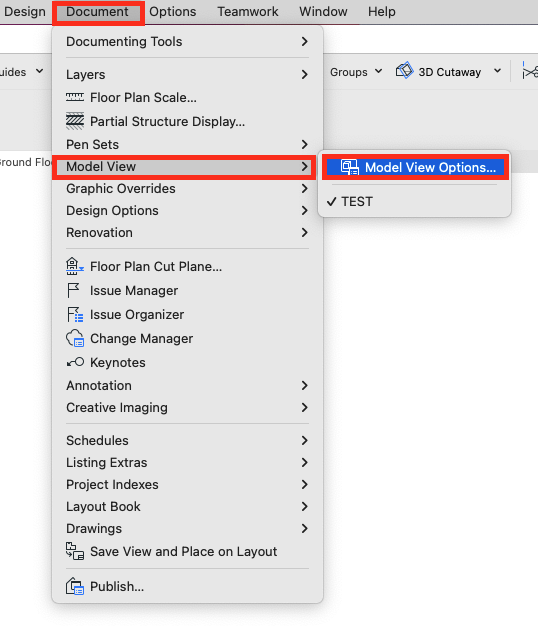

1. In the Floor Plan View, go to Model View Options (Document > Model View > Model View Options).


2. Under the Construction Element Options tab, select “Eliminate” in the Slab field.

3. Click OK to apply changes.
