Graphic overrides do not show colors

Issue description

I have applied a graphic override to my model to highlight the fire rating of the doors. However, the colors are being overwritten by the glass rule, preventing the fire rating colors from displaying correctly.

Solution

The issue you're encountering likely happens because multiple graphical override rules are being applied to the same elements, with the glass rule taking priority over the fire rating rule. In Archicad, graphic override rules are applied in the order they are listed, meaning the rules at the top will have the highest priority.

To resolve this, you can apply one of the following methods:

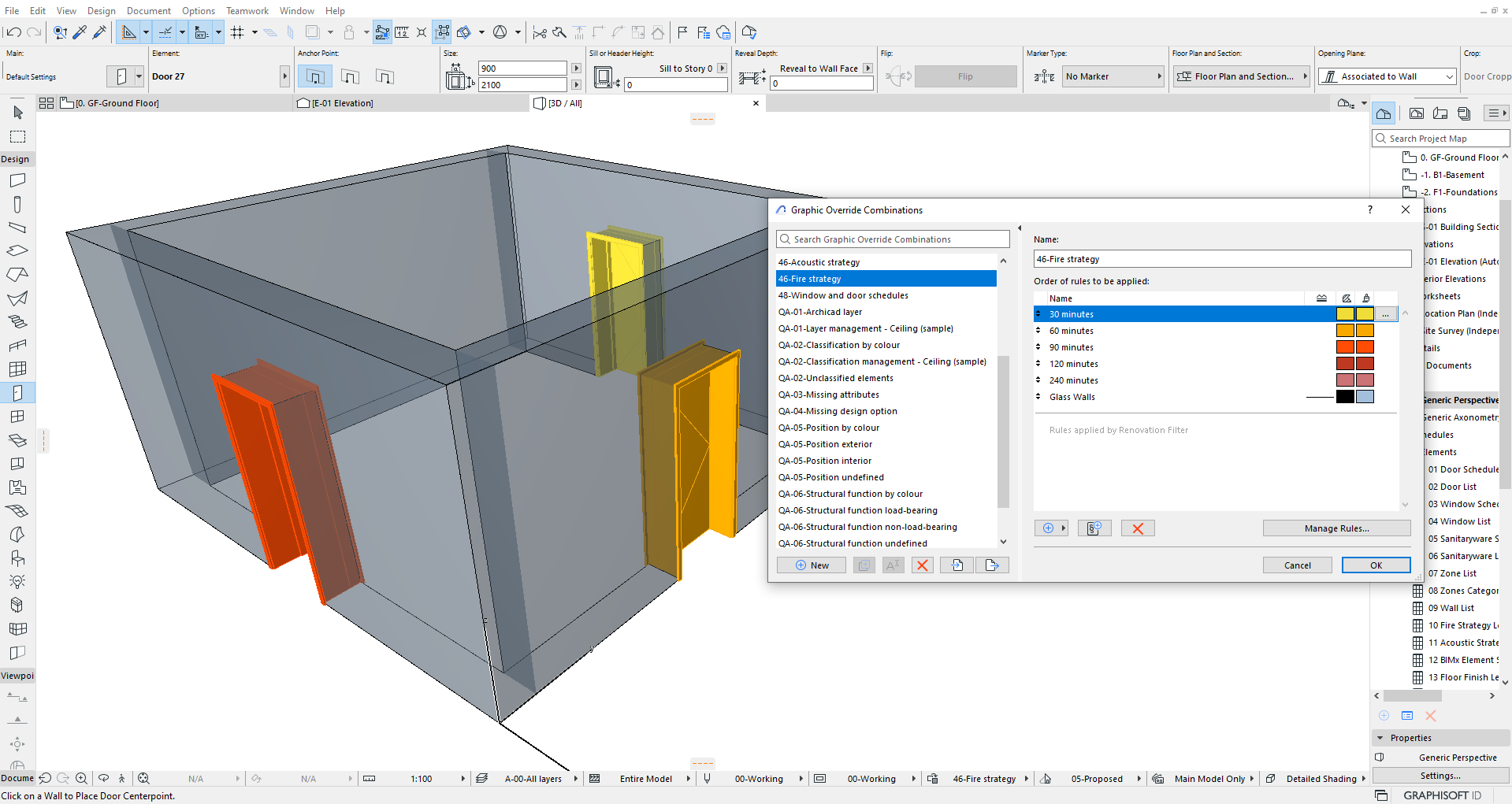

• Check the priority order of the overrides – Ensure that the fire rating rules are listed before the glass rule so they take precedence.

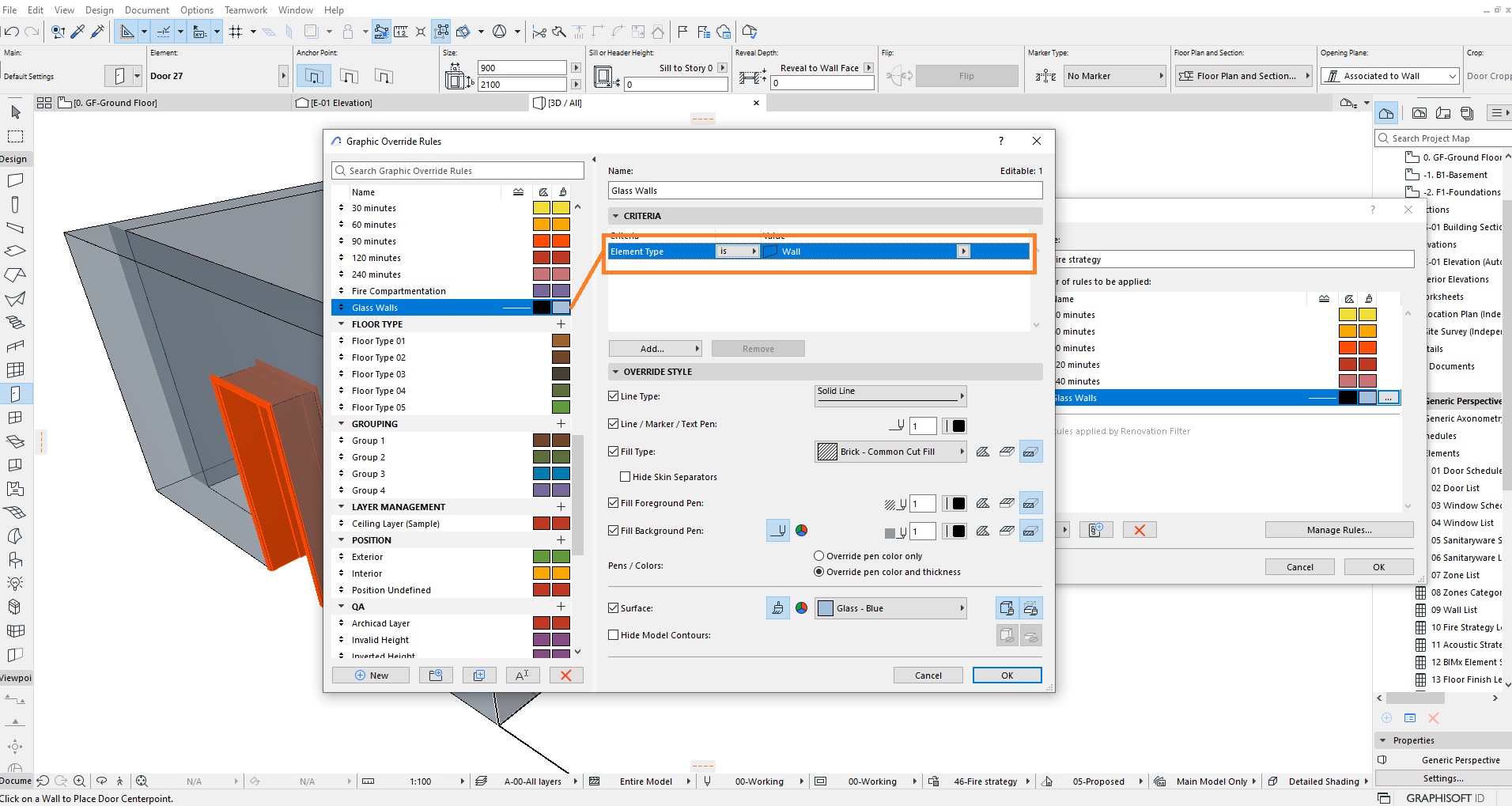

• Modify the element criteria of the glass rule – Adjust the conditions of the Glass rule so it doesn’t apply to the doors or other elements you wish to highlight with the fire rating rule.
