Issue Description

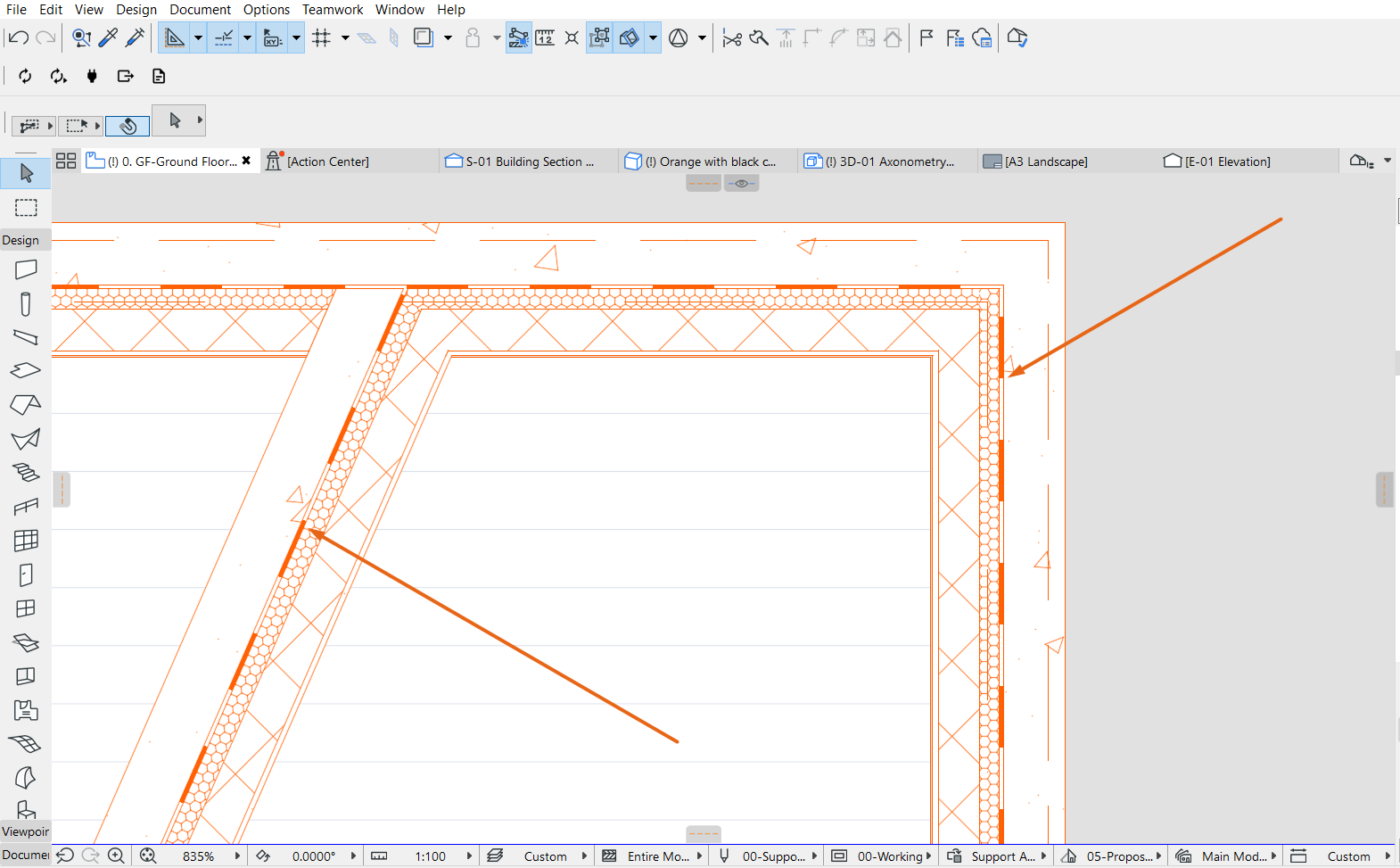

You notice that the cut fills of composites or complex profiles are not displaying correctly on plan views in Archicad. Common examples of this are when the waterproofing membrane disappears (becomes all black or all white), or the diagonal masonry fill becomes distorted, in walls that are not perpendicular to the viewpoint's X-axis.
Solution
To resolve this issue, follow these steps:
- Go to Options > Element Attributes... > Building Materials...
- Locate the material you would like to adjust and expand the Structure and Appearance tab.

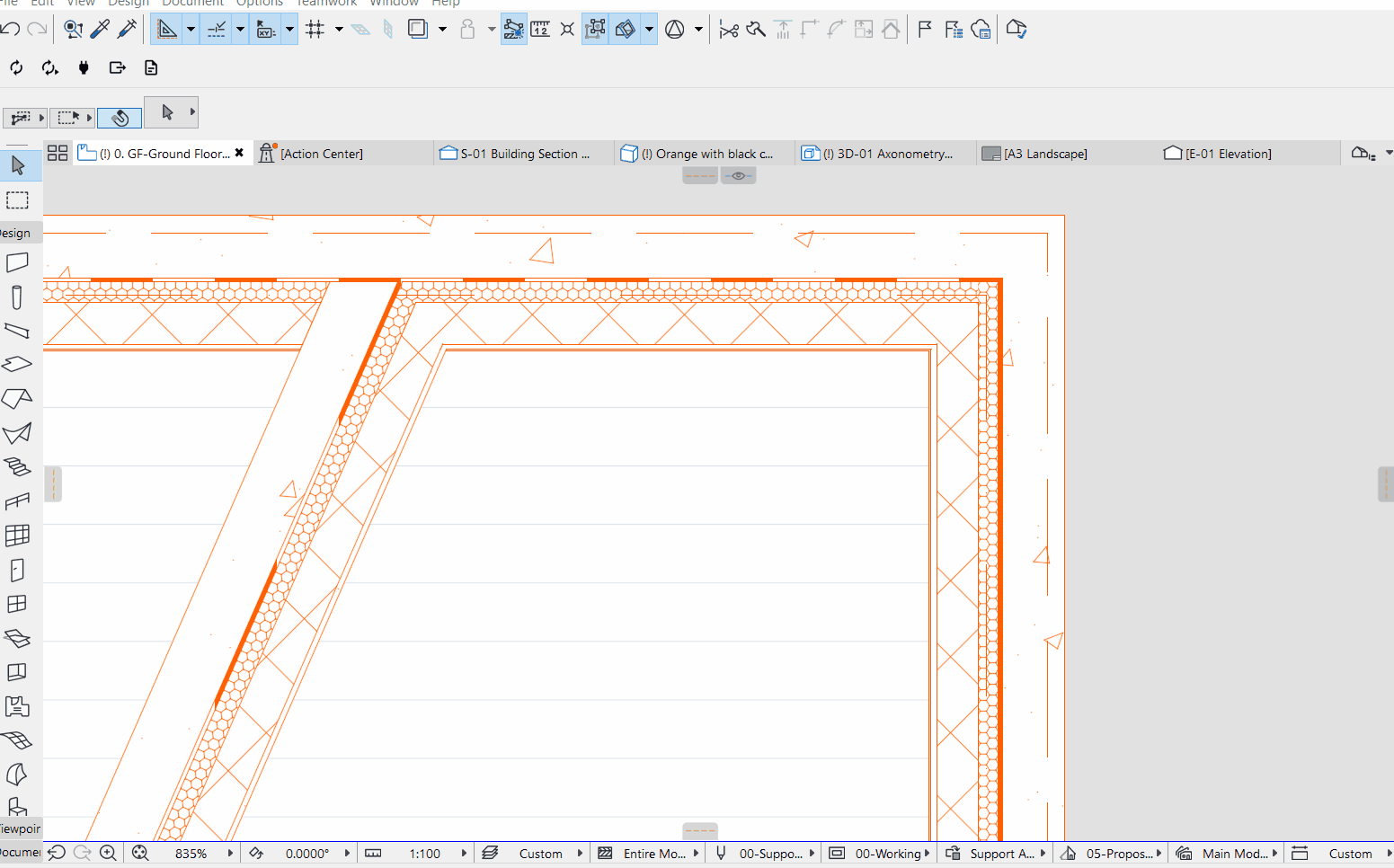

- Next to Fill Orientation choose the option Element Origin.
- Click OK.
This adjustment ensures that the cut fills display correctly regardless of the wall orientation, the issue should be resolved, and the cut fills should display properly on plans and sections.
