Issue Description

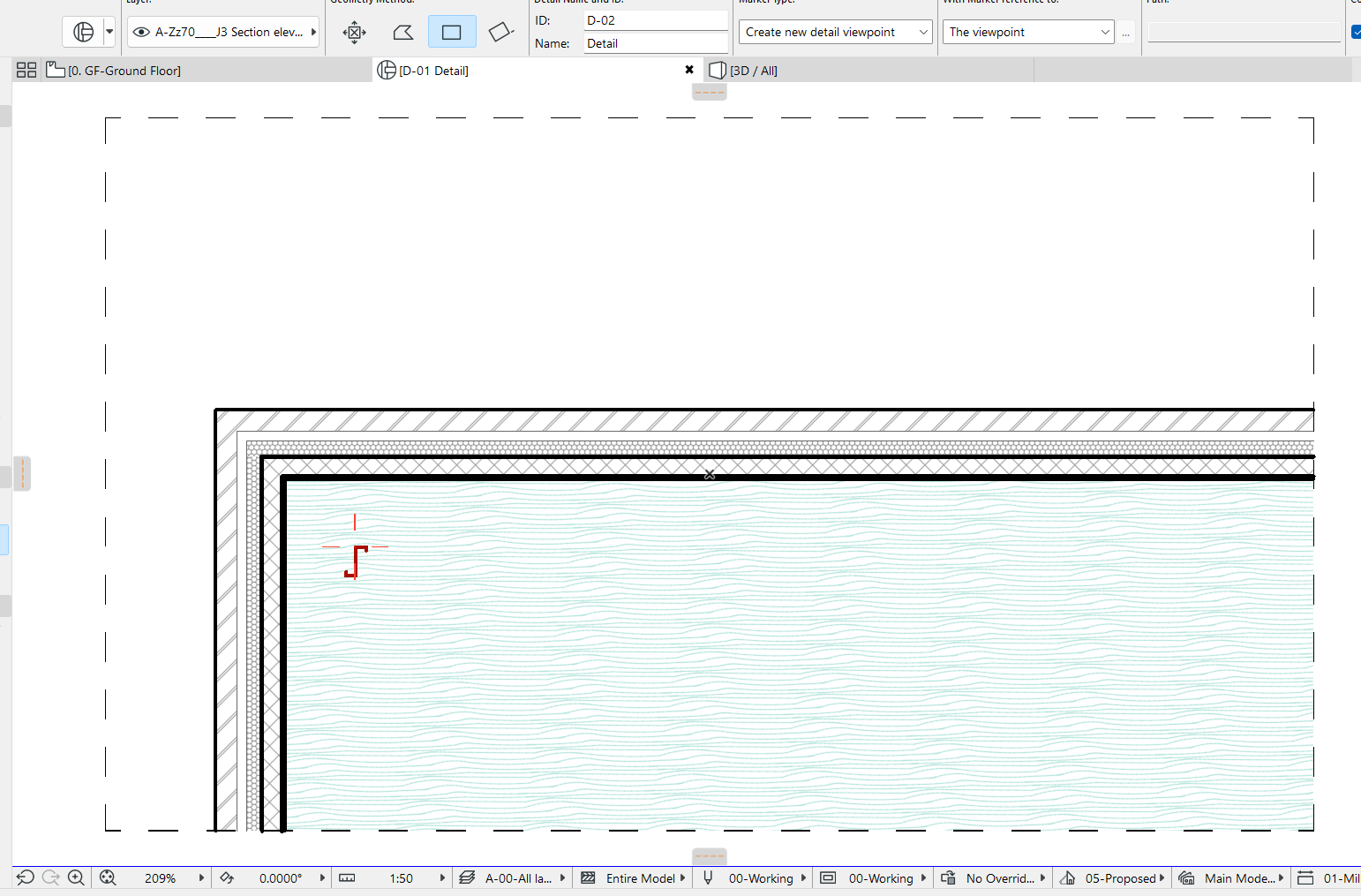

When details or worksheets are created, not all 2D elements are displayed in the generated views. Texts, labels, and dimensions are missing.
Solution

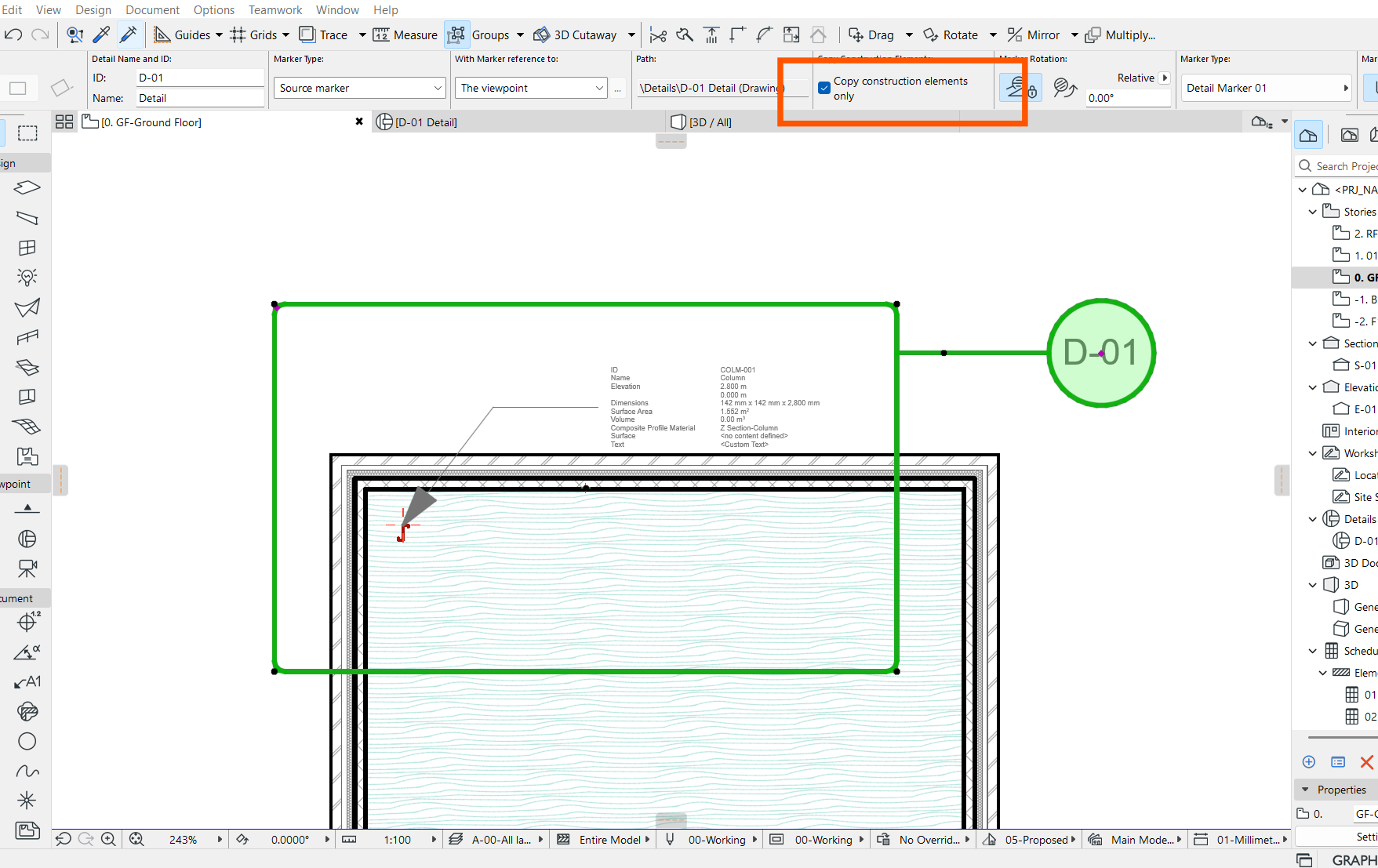

When opening the settings of the detail or worksheet using Ctrl+T (Windows) / Cmd+T (Mac), the option Copy Construction Elements Only under the General tab may be enabled. This setting transfers only construction elements (e.g., walls, windows, columns, lines) but excludes annotations and dimensions.
To resolve this:
1: Disable the Copy Construction Elements Only option and confirm with OK.
2: Right-click on the affected detail or worksheet in the Navigator.
3: Select Rebuild from Source View in the context menu to transfer labels and texts.
