Issue Description
I need to generate a specific schedule for the Stair Tread Finishes in order to extract its surface area. This information will be essential for future estimates and calculations. Is there a way to achieve this?
Solution
To schedule a Stair Tread in Archicad:

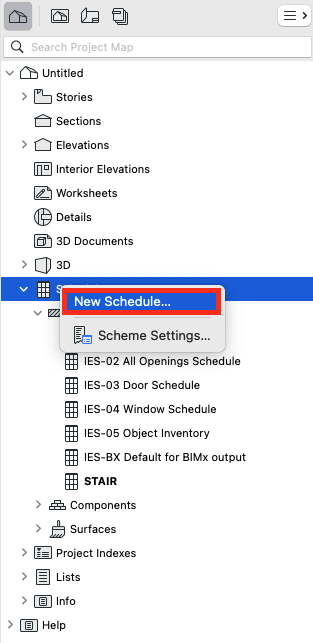

- Create a New Schedule. In the Project map, right-click on the Schedules then select New Schedule. Name the Schedule and select OK.

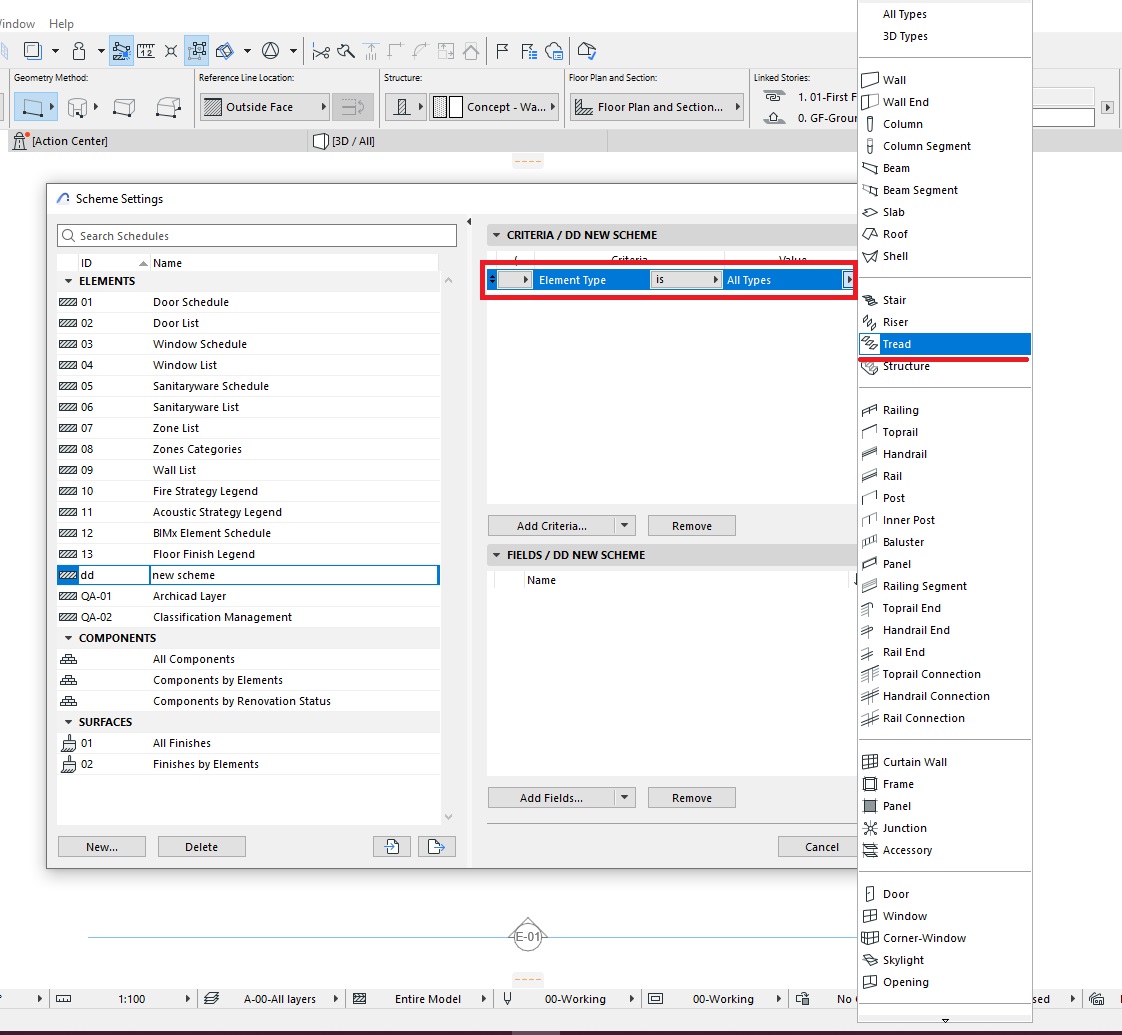

- In the Schedule Scheme Settings, Under the Criteria, select “Element Type” is “Tread”

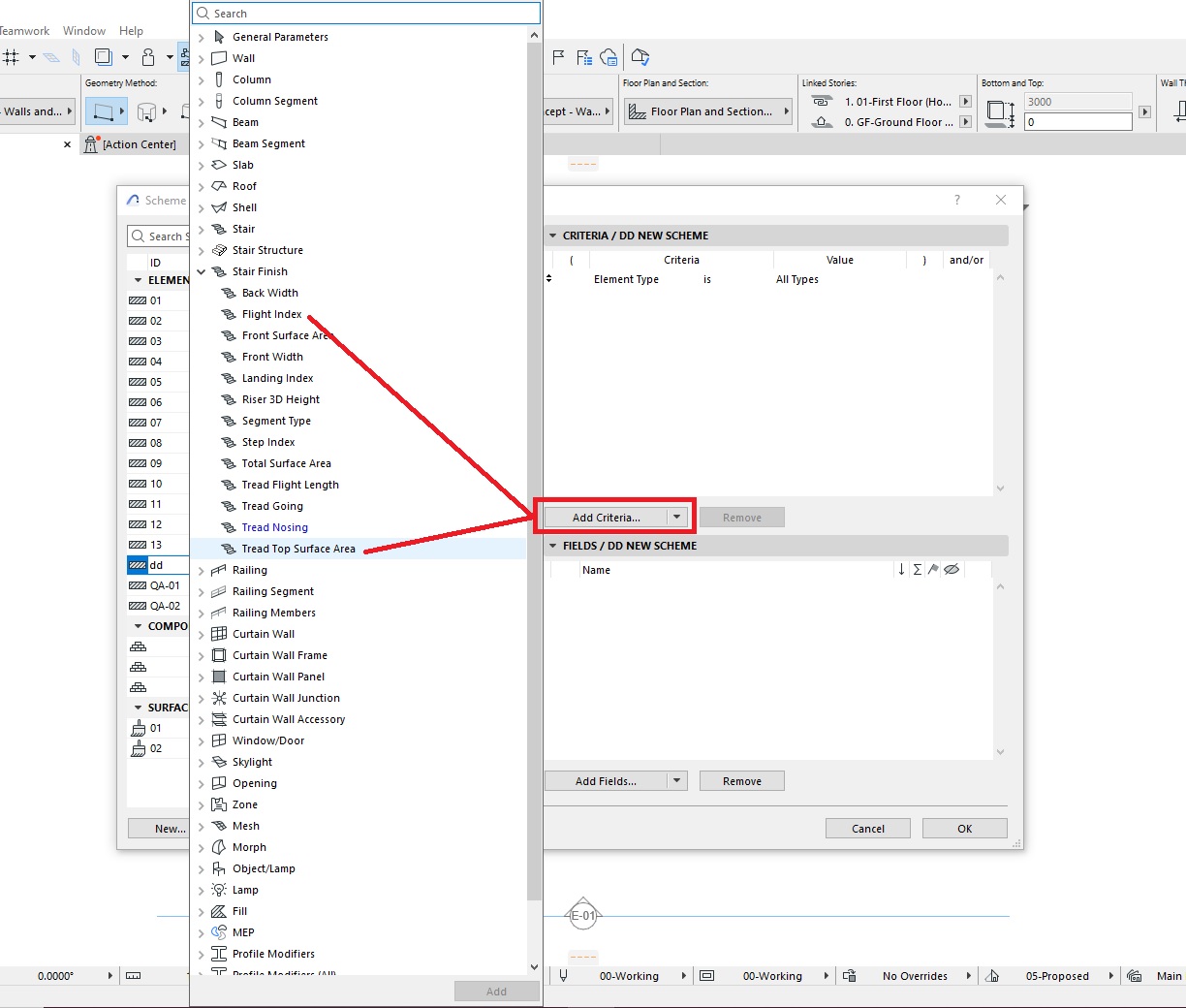

- Under the Fields tab, select “Stair Index” and “Tread Top Surface Area”.

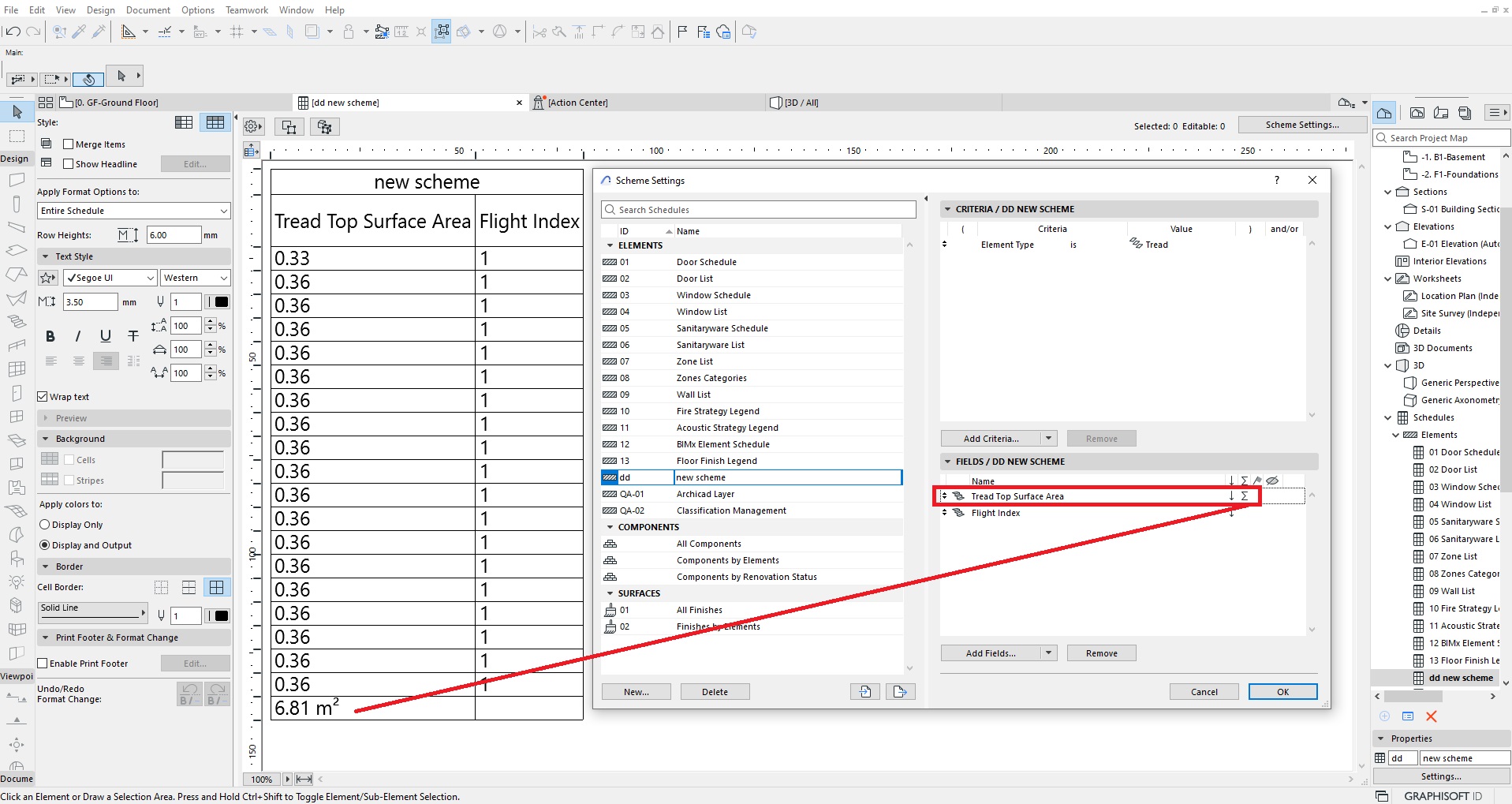

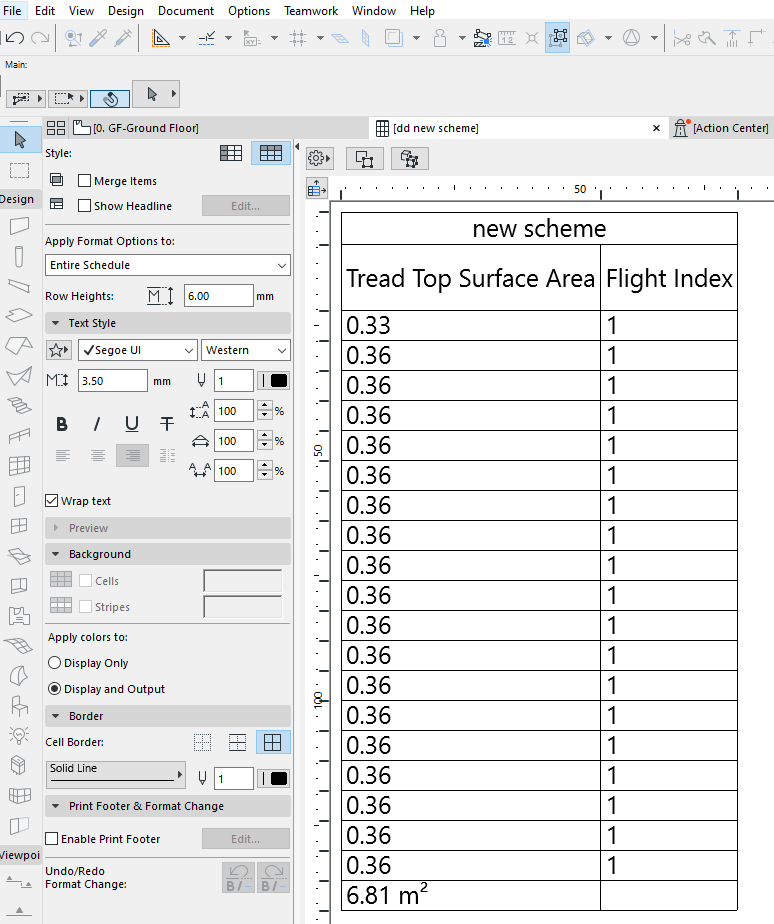

- Select OK and open the newly created Schedule from the Navigator Panel.
If you would like to add the total to the surface area column then go back into the Schemes Settings and select the Total symbol to the right of the field name.
