Issue Description
Multiple elements are selected and need to be grouped, but the Group command under Edit > Group > Group is not available or cannot be applied.
Solution
If you're unable to group elements in Archicad, there could be a few reasons causing this issue.
1. Check the Active Project View:
-
- The Group function can be used in most project views, like the Floor Plan, 3D Window, Worksheet, and Detail Views, but it cannot be used in Sections and Elevations.
- Make sure you are in a supported view.
2. Ensure Layers Are Unlocked:
-
-
- Elements can only be grouped if their layers are unlocked.

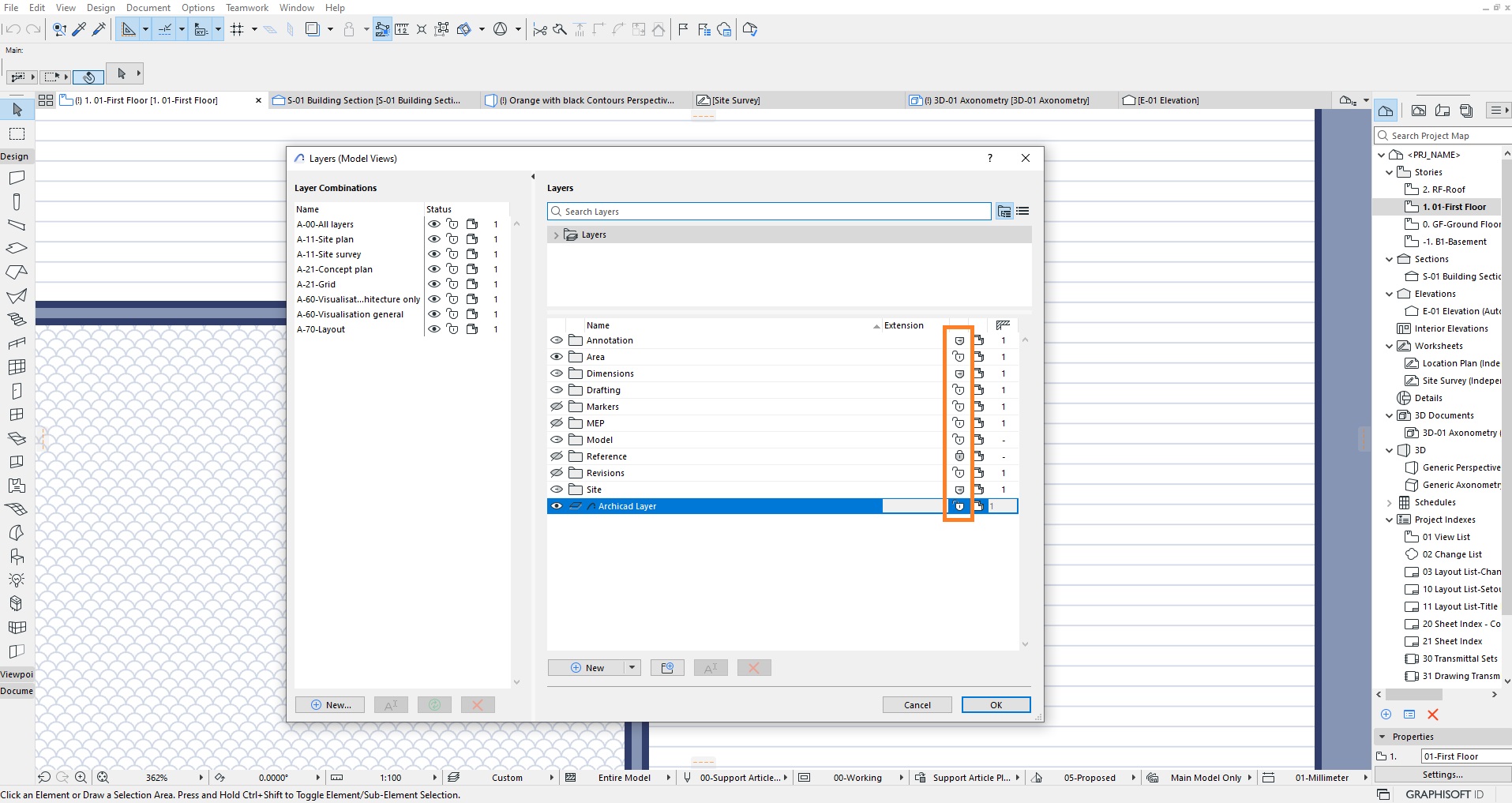

- Go to Document > Layers > Layer Settings and ensure that the layers containing the elements you want to group are not locked or protected.
-
-
- Locked elements cannot be grouped.

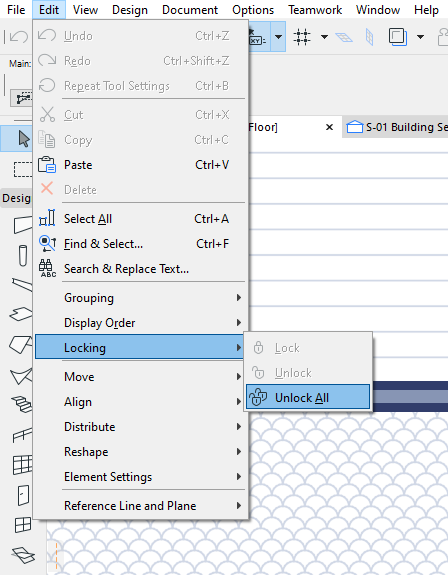

- Go to Edit > Locking > Unlock All or Unlock Selected Elements to ensure the elements are not locked.
4. Check Grouping Settings:
-
- Make sure Auto Group is enabled.
- Go to Edit > Grouping > Auto Group
5. Check if Elements are Editable:
-
- If you're working with a Teamwork Project, ensure that you have permission to edit the elements and they are not reserved by another user.
If the Issue Persists…
Check out more content on the Support Site, Archicad Help center, or the Graphisoft Learn Portal. You can also contact Technical Support for further assistance.
