Issue Description

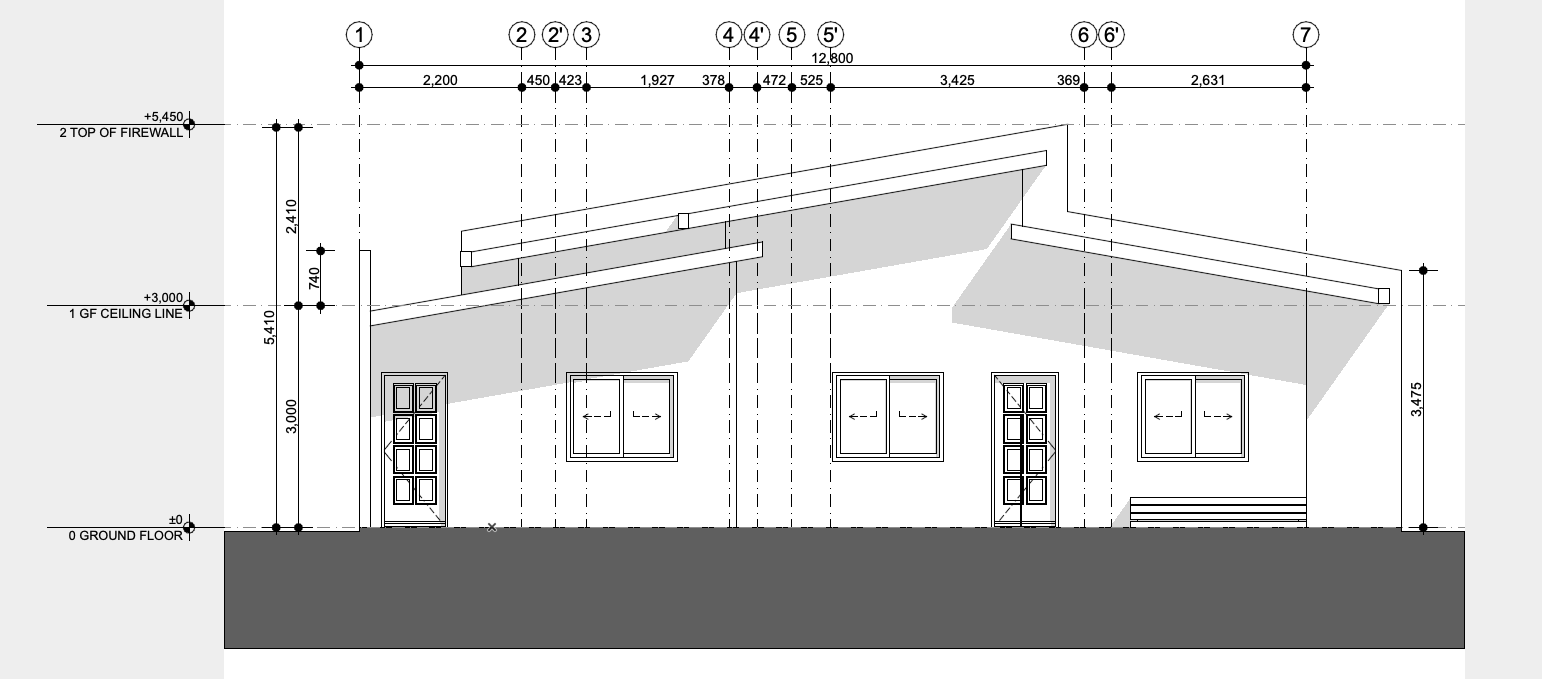

I'm working on a project that contains two grid systems, and the elevations are showing each but I wanted to hide some grid elements that are not needed in the current view. How can I show specific Grid Elements on Elevation drawings?
Solution
You can show specific Grid Elements on Elevation drawings by modifying it at the Elevation Settings.

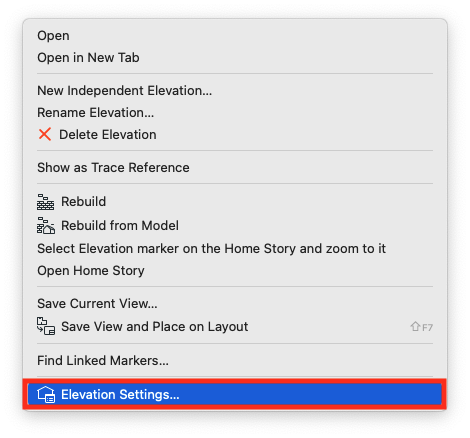

- Go to Project Map, select the Elevation Drawing then go to Elevation Settings.
- At the Elevation Selection Settings, under the Grid Tool Tab:
- Make sure that the “Show Grid Elements” box is checked.
- Under Show Grid Elements by Name, select “Selected” then choose from the Specific Grid Elements to be shown in the elevation. Click OK.
