Issue Description
I have created a complex profile of my wall using the profile manager. I have separate building material for the bottom part which is concrete, while dry wall on the top. Is there a way to change the surface of the concrete part on one side only?
Solution
You can change the surface finish of the specific edge of your Complex profile through the Custom Edge Settings.
- Go to the Profile Manager and select the Complex Profile you wish to edit.
- Select the edge of the Fill that you want to edit. A pet palette will appear then select “Custom Edge Settings”

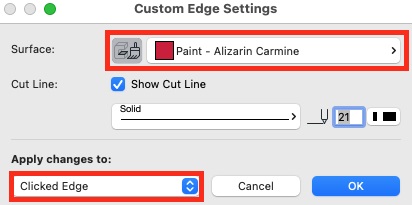

- Inside Custom Edge Settings, select the Surface you want and specify the Apply changes to “Clicked Edge” only. Click OK then Save your custom profile to update. This will remove the outline of the fill on the selected edge.
