Issue Description
I’d like to design my doors with the appropriate casing types, but the tool currently only offers a rectangular option.
Solution
To design doors with bespoke casing in ArchiCAD, you can follow these steps to create custom profiles for door casings:

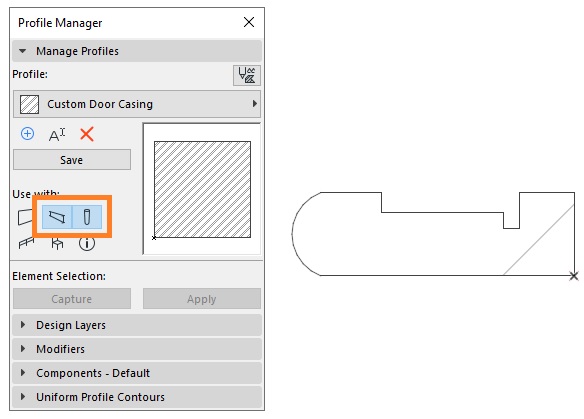

1. Create a Custom Profile:
- Go to Design > Complex Profiles > Profile Manager.
- In the Profile Manager, click New to create a new profile for your door casing.
- Make the profile usable for both columns and beams
- Name your profile- Custom Door Casing.
- Use the Column and Beam tool to design your desired casing shape.

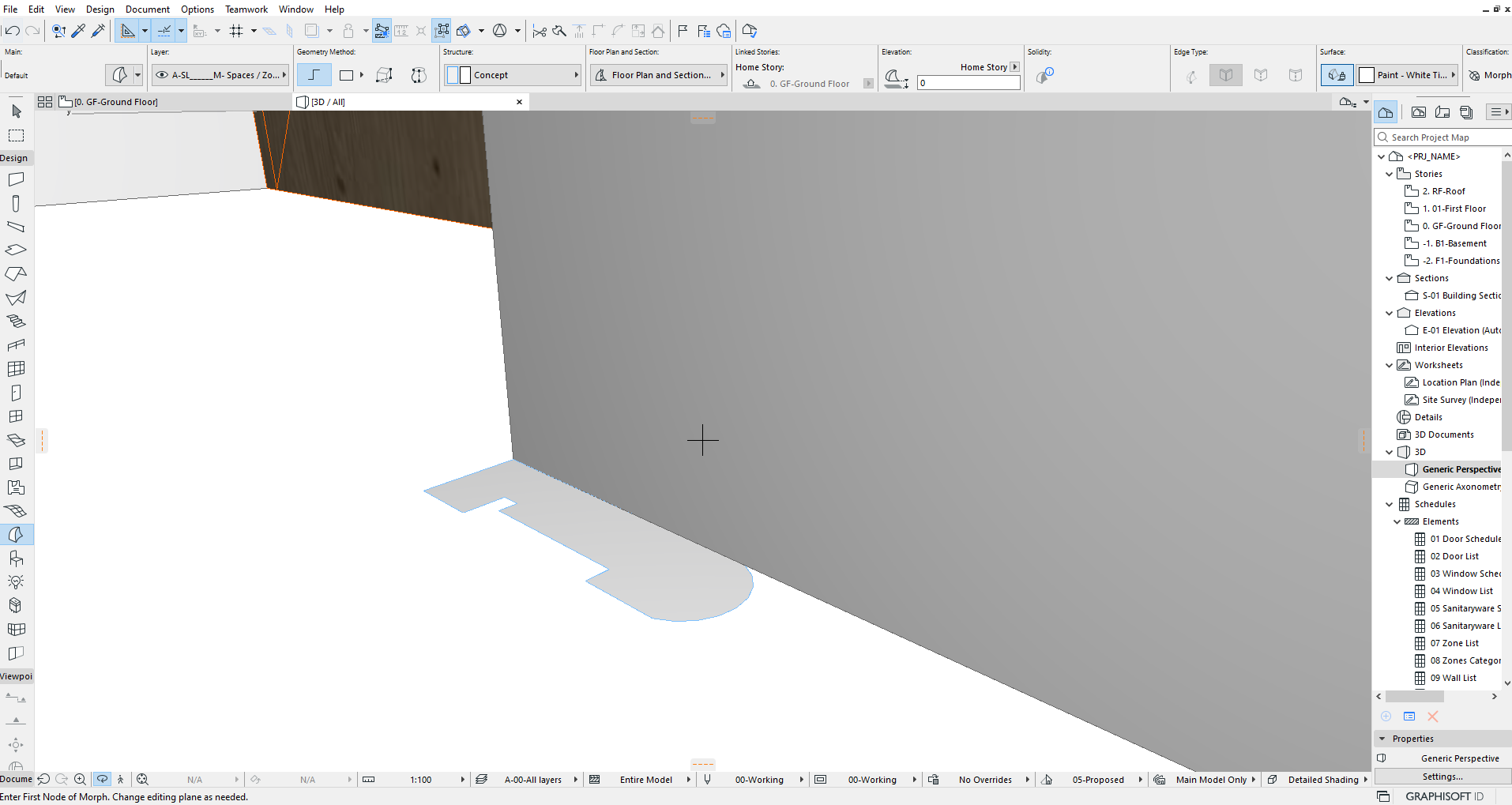

2. Create a Morph

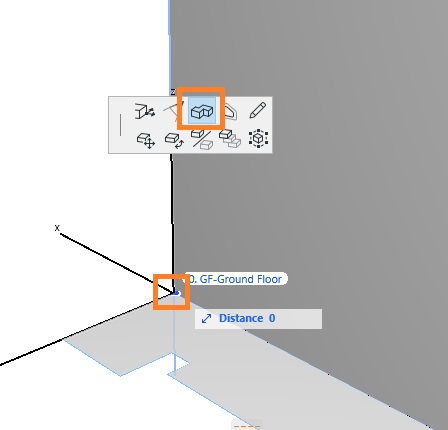

- Select the morph from the back corner and select Tube from the Pet Palette

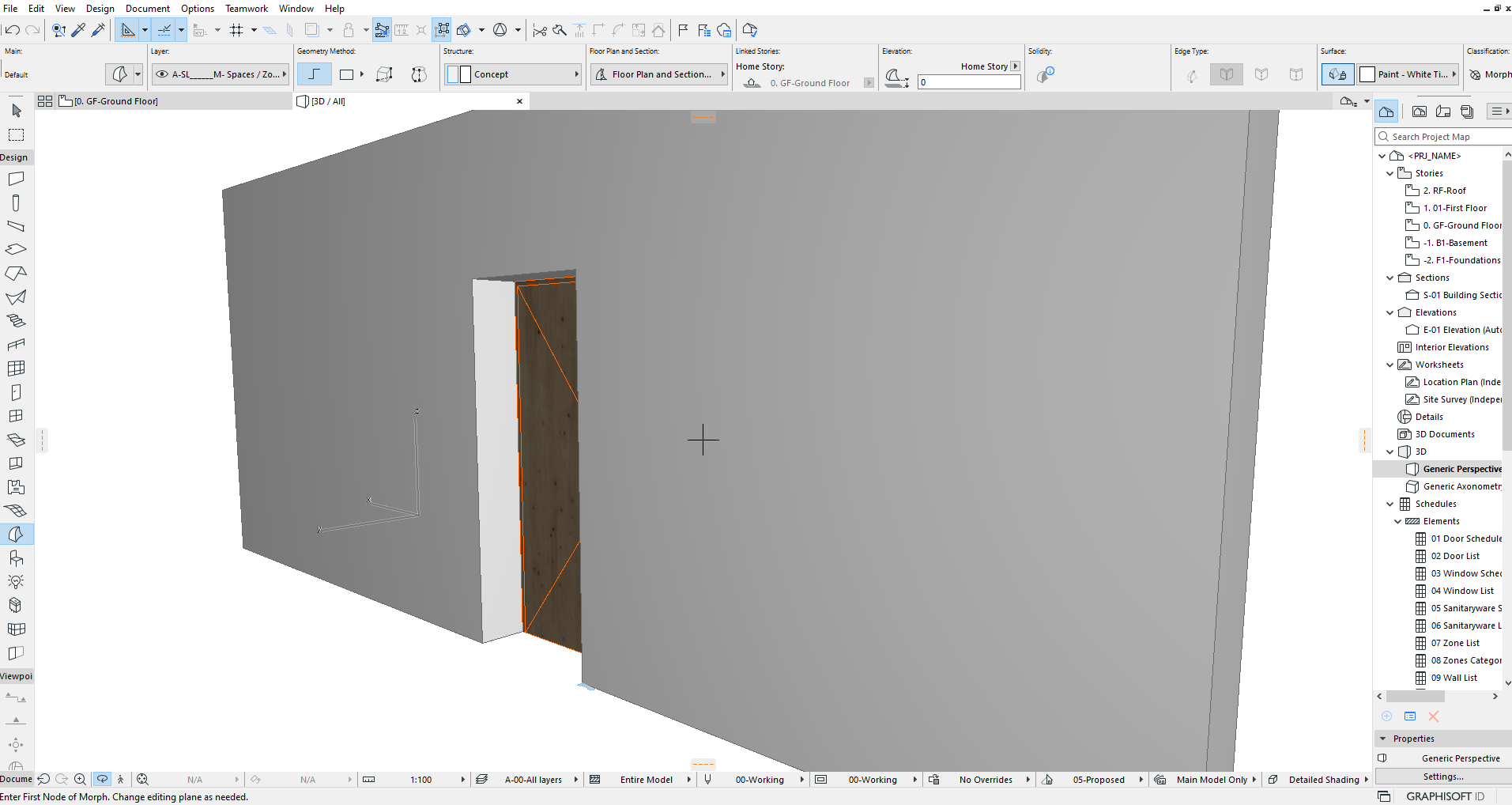

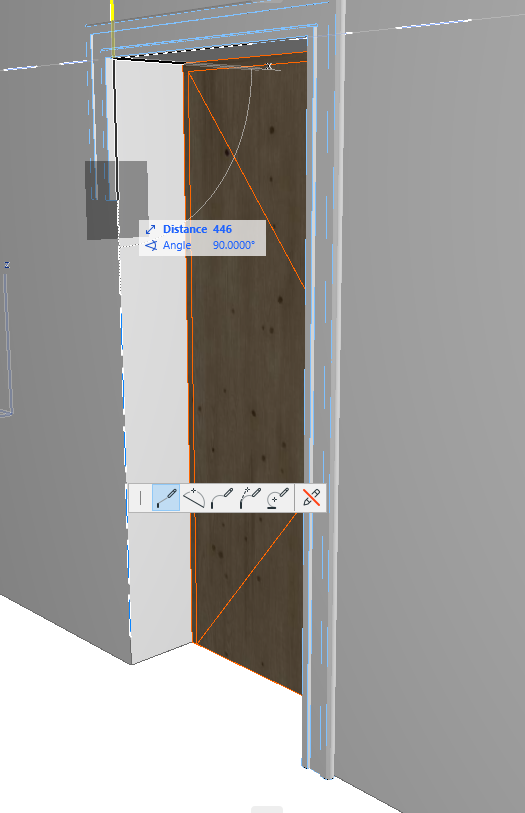

- Tube the morph around the opening of the Door.
TIP: For more features of the Morph Tool
