Issue Description
Slanted axes are not displayed in the view representation of elevations and/or sections.
Solution
1. Check the Position of the View

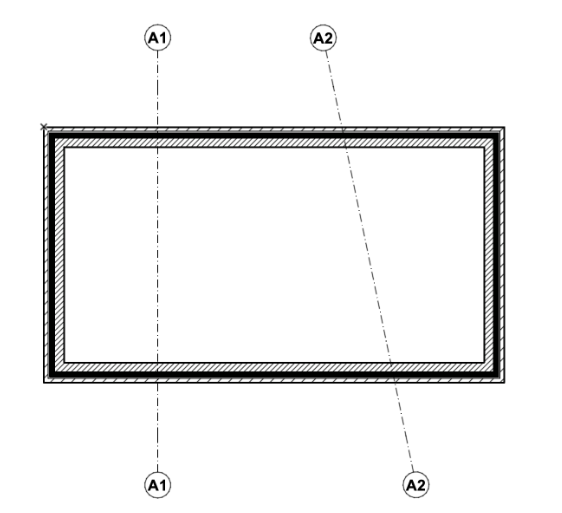

Ensure that the view line or the view marker intersects the slanted grid elements. If it does not, these elements cannot be captured in the view representation.
2. Check the View or Section Settings

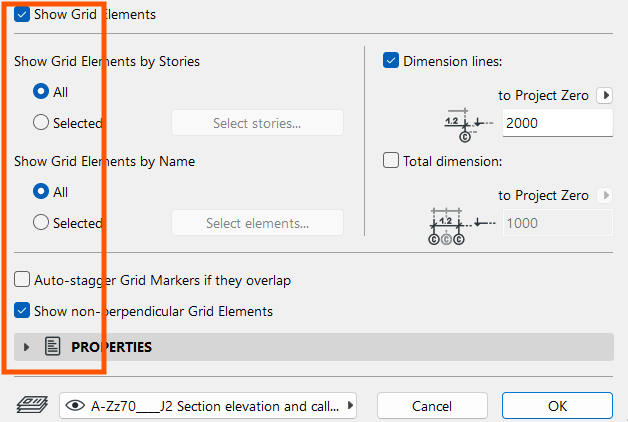

Open the Section / Elevation Settings.
Ensure the following options are configured correctly:
- Display Grid Elements: This option must be enabled.
- Show Grid Elements by Stories: Set this to All.
- Show Grid Elements by Names: Set this to All, if you want all grid elements placed in the floor plan to appear in the view.
- Display Non-Vertical Grid Elements: This option must be enabled.
