Description

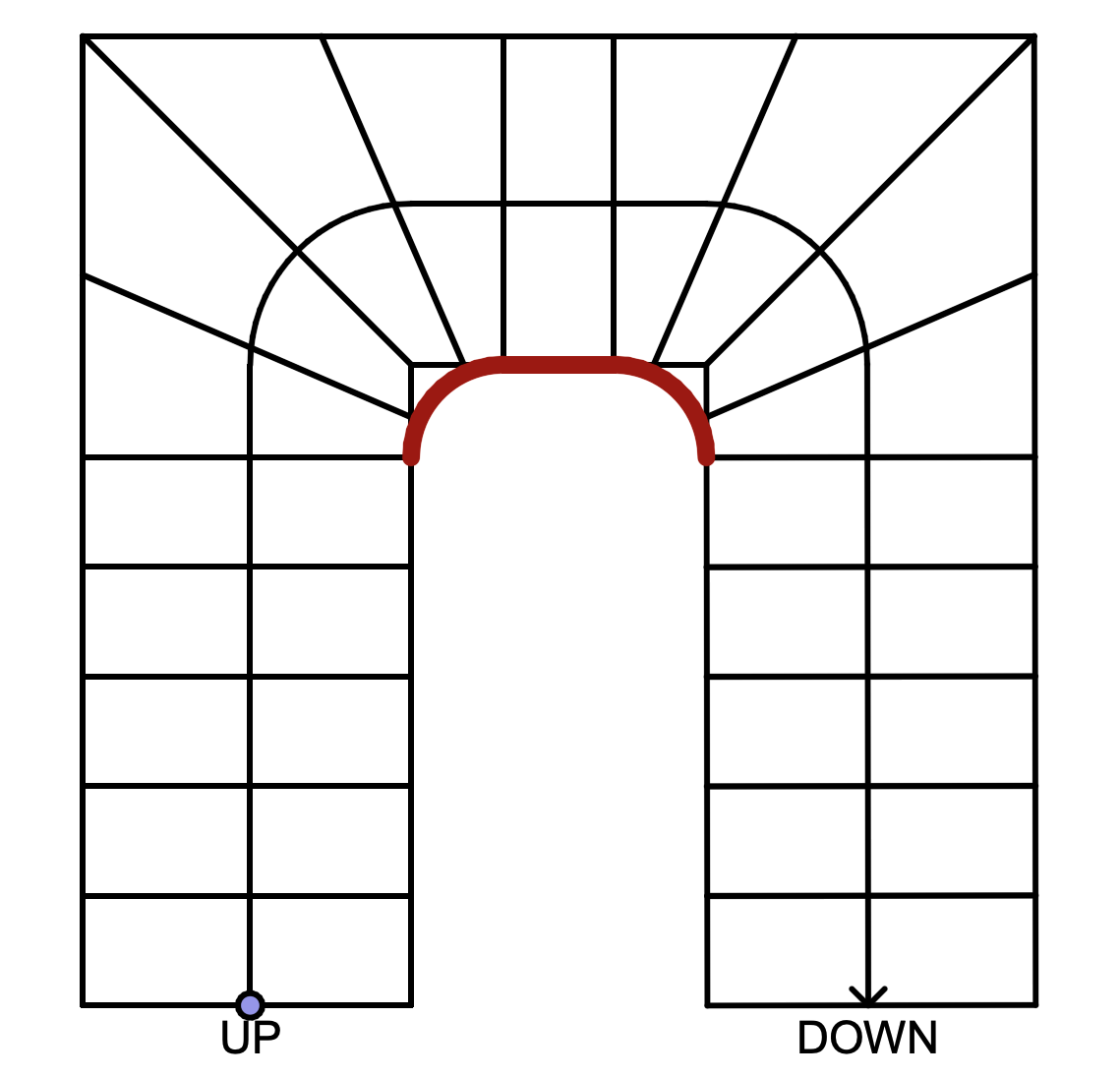

I would like to adjust the inner part of my U-shaped staircase boundary to be rounded. Whenever I try to fillet it, both the inner and outer part are adjusted. Is there a way to only adjust the inner part?
Solution:
- Select the Stair using the Boundary selection. You can toggle between the two types of selection Boundary Selection and Baseline Selection, by tapping TAB while hovering over the edge of the stair with your cursor.

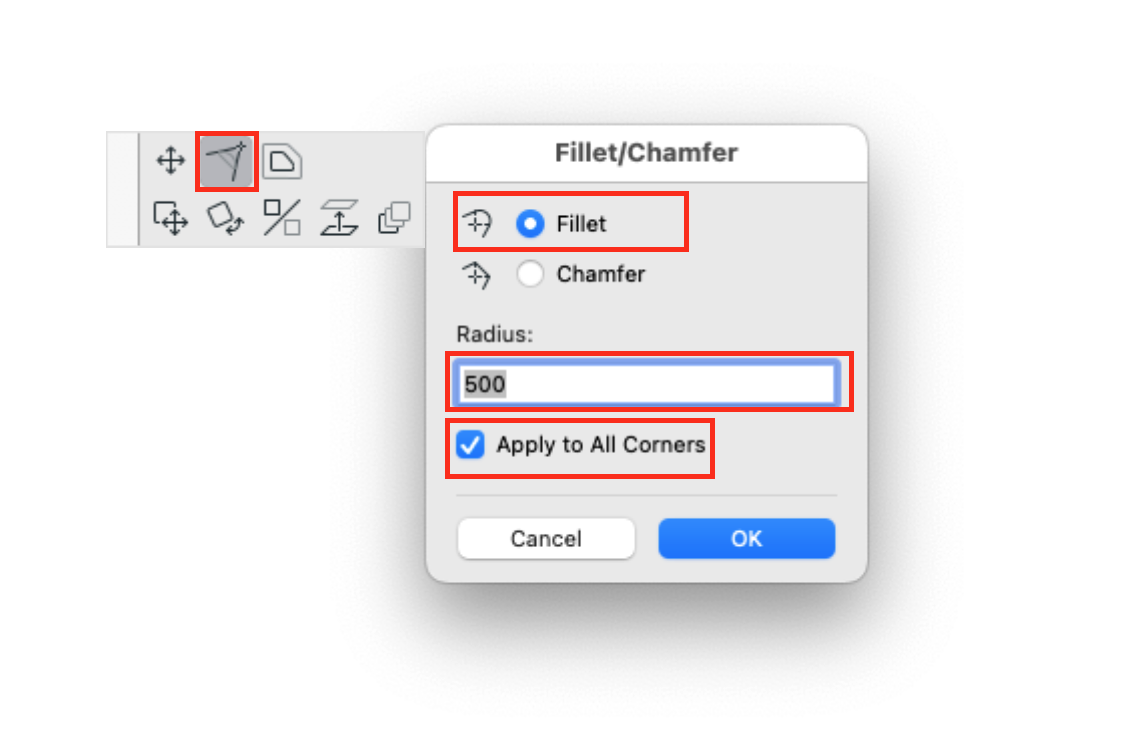

- With the Boundary selected, select one of the inner nodes. Then from the pet palette, select Fillet and Chamfer. Select Fillet in the options and specify the Radius. In this example, it is good to check Apply to All Corners as it affects all nodes along the same edge.
