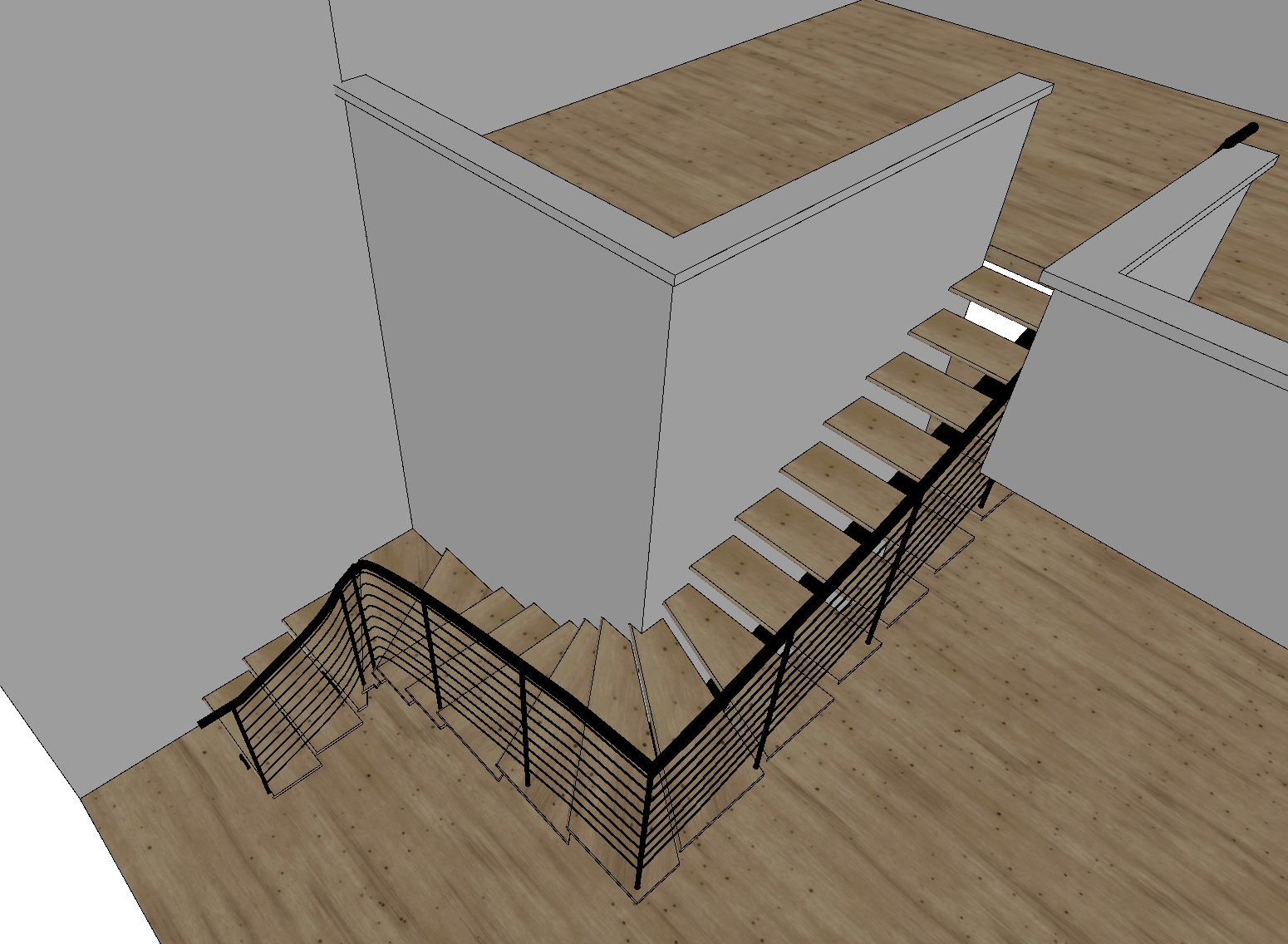

How can I create a stair with two winders turning in opposite directions?

Description

I’m trying to create a stair that contains winders at the turning sections instead of landing. How can I achieve this?

Solution

Landings can be turned into Winders on turning sections by changing the turning type from Landing to Winder.

1. Click the Stair Tool in the Toolbox.

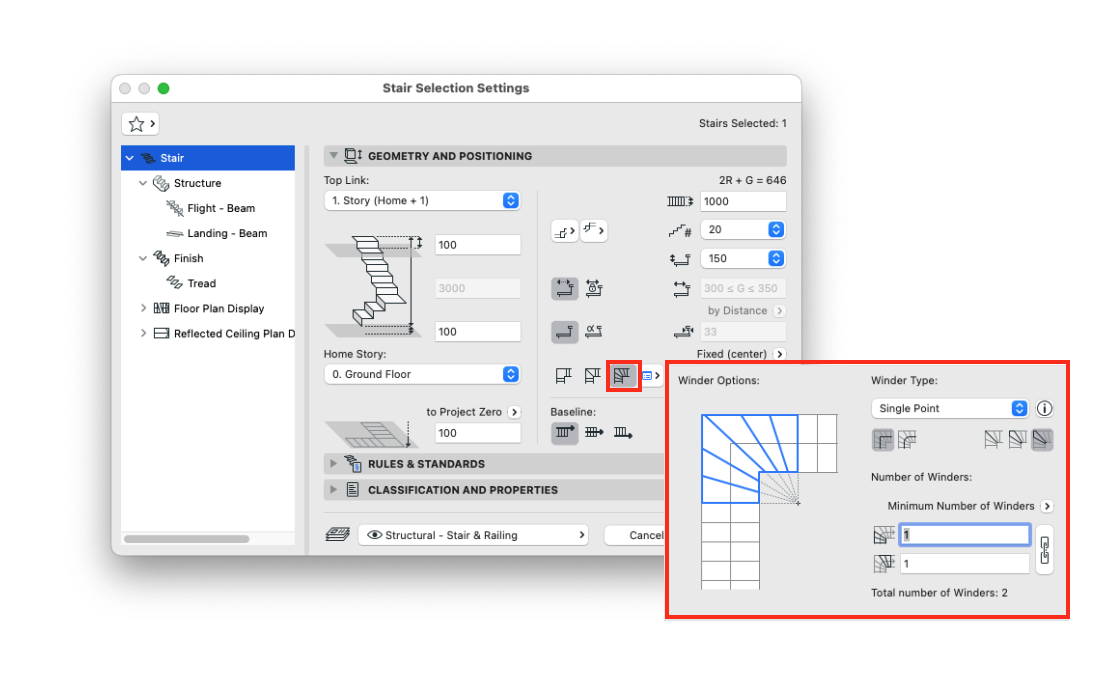

2. Open the Stair Selection Settings.
3. Go to Stair section, and under the Geometry and Positioning tab select Winder with Equal Goings.

4. In the landing type section, choose your preferred winder configuration and adjust parameters as necessary for your design.



5. More precise winder options are available when you click on the Turning Type Options icon. Try to change the parameters as needed for your stair design.

TIP: For further guidance on using the Stair tool.
