Description

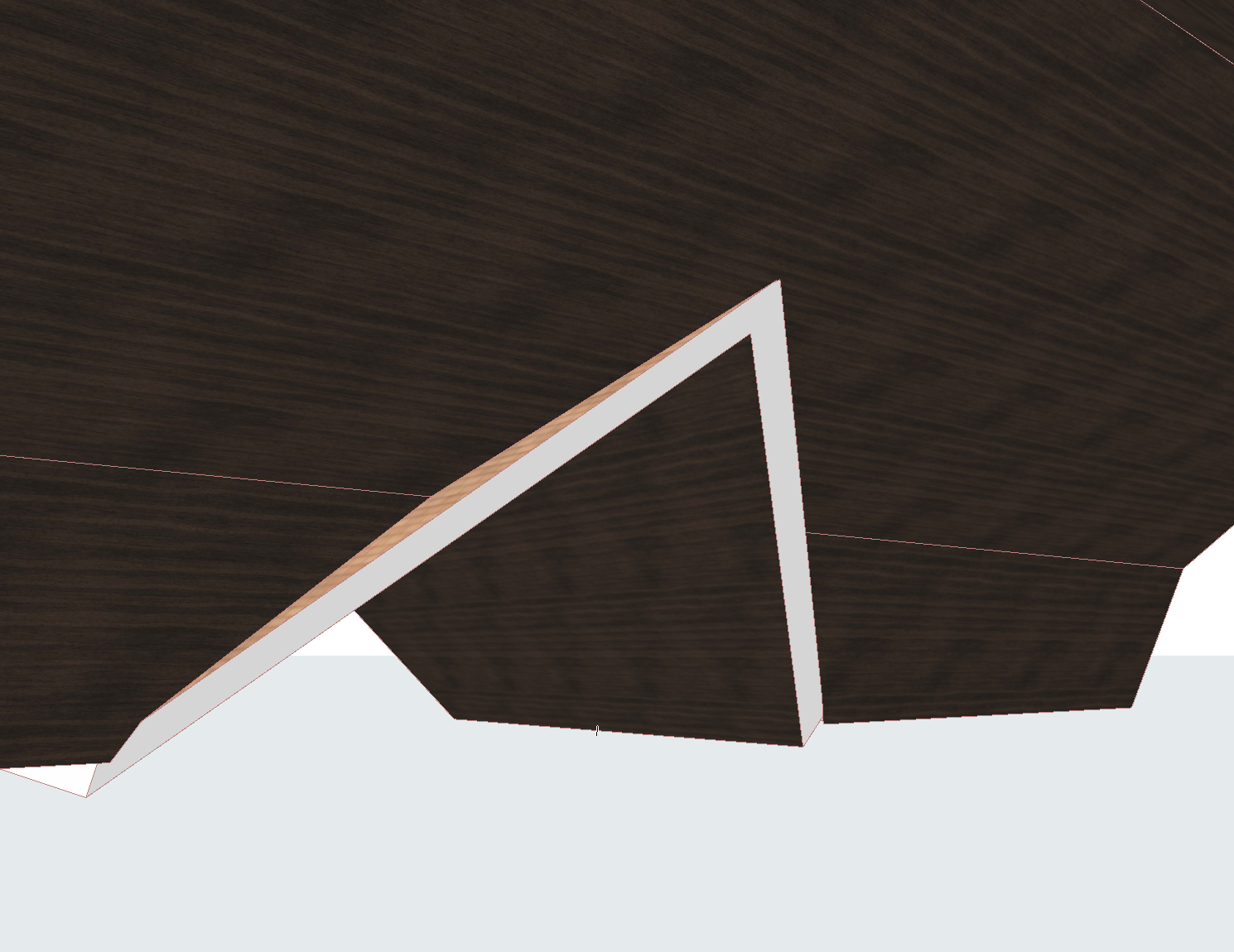

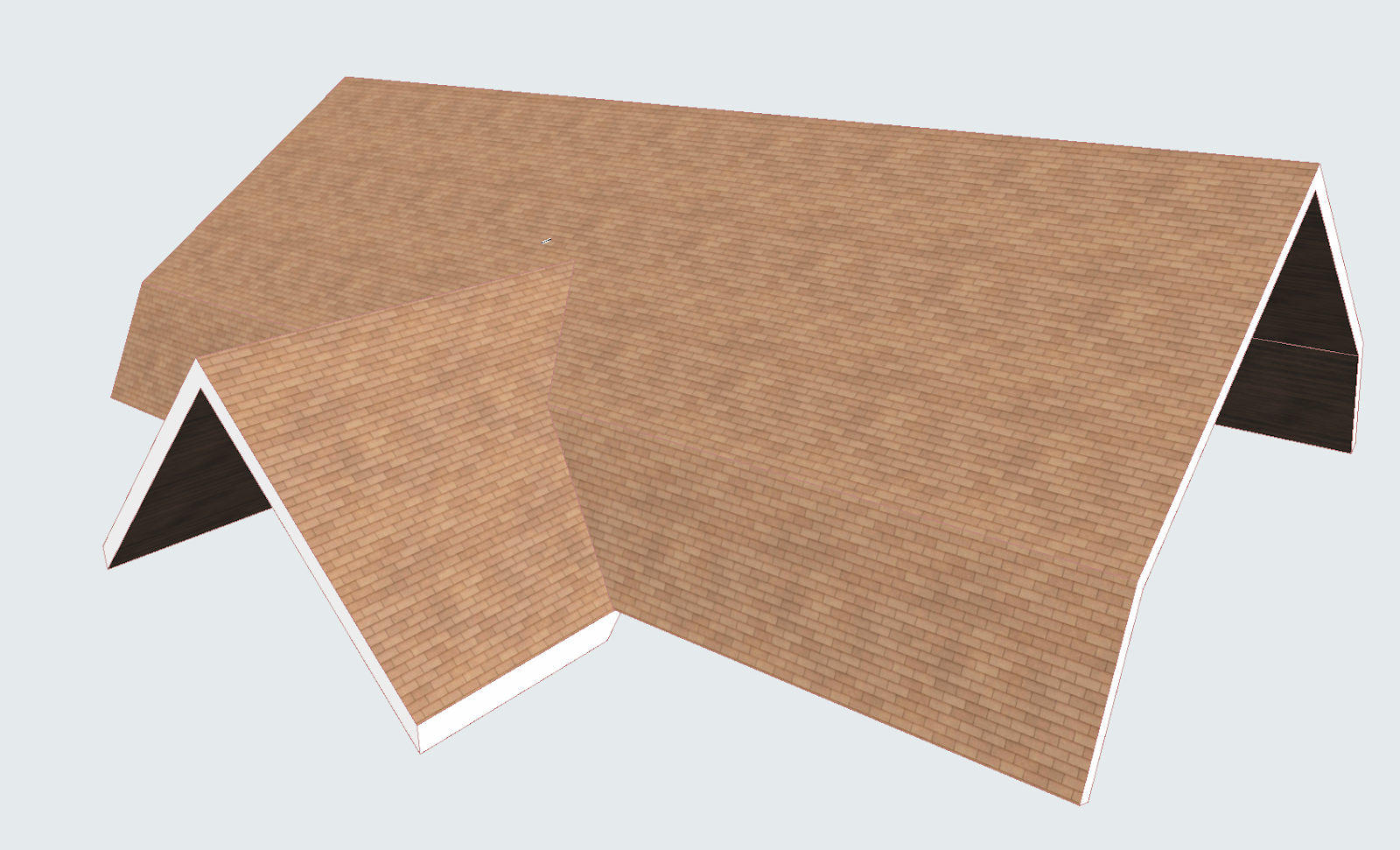

I am trying to join a dormer roof to the main roofing system, but I can’t seem to connect them properly as it looks incorrect on the inside but it’s fine outside.
Solution
- Create the roofs as separate entities, and place them in the correct position on the plan.

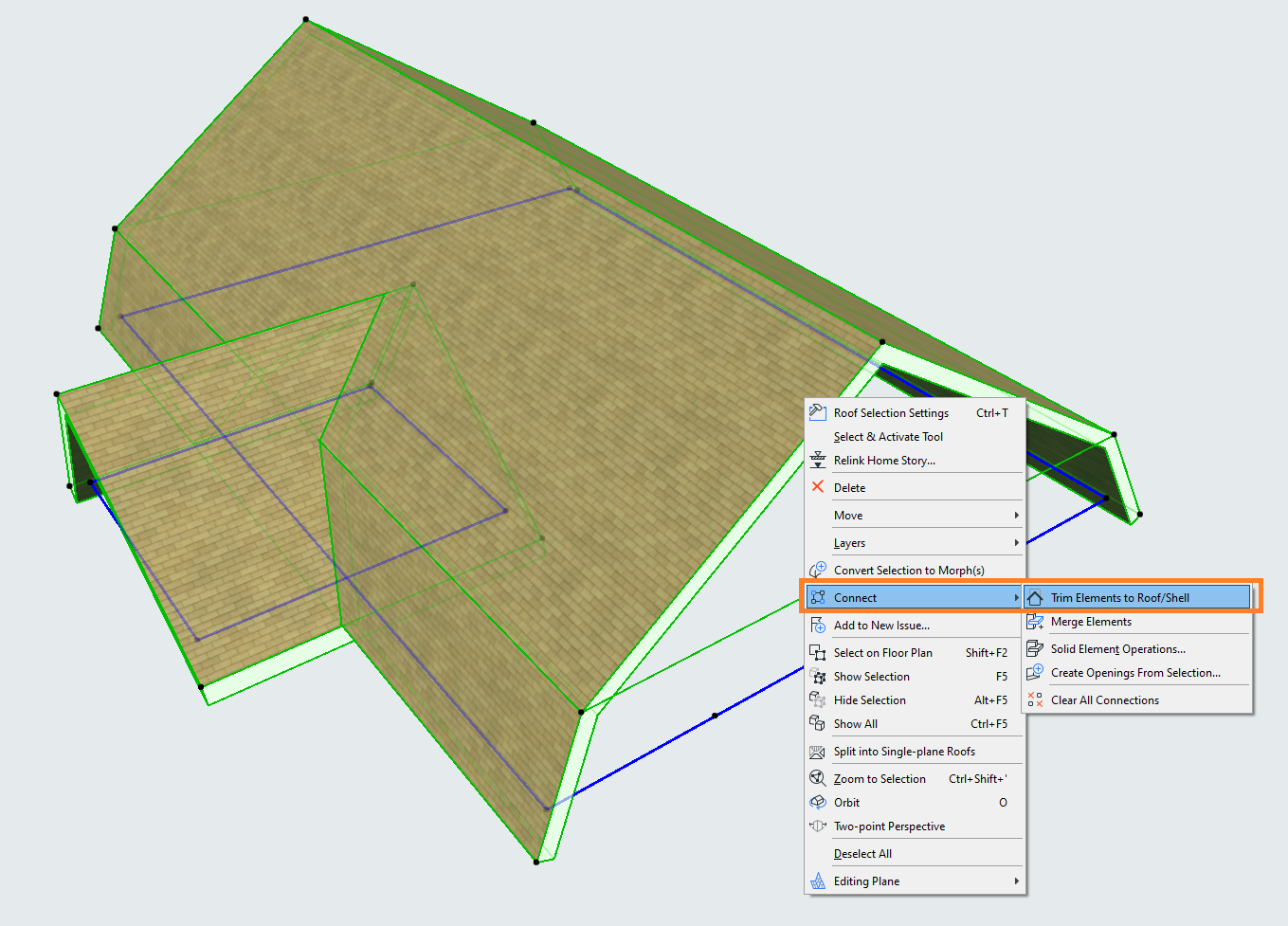

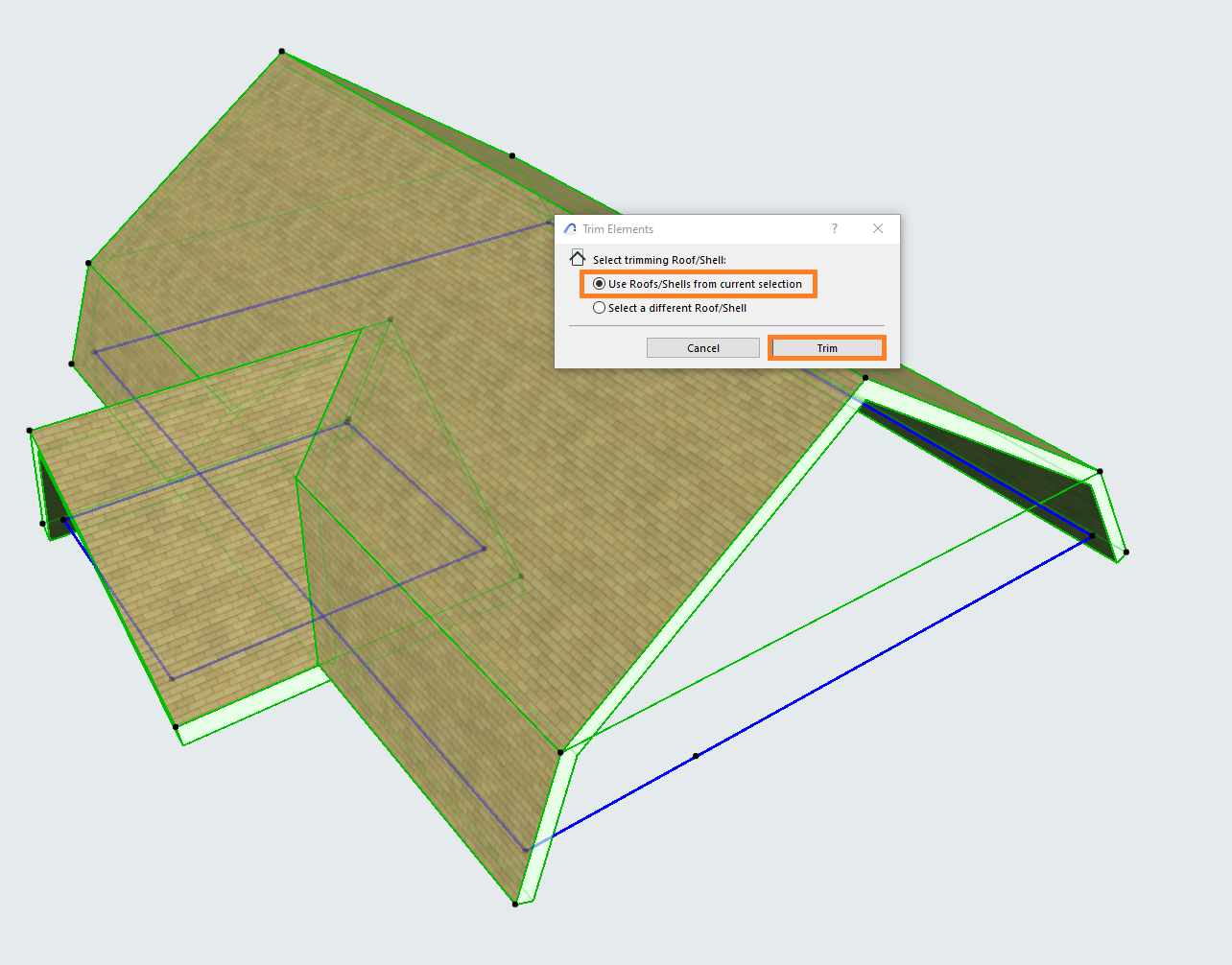

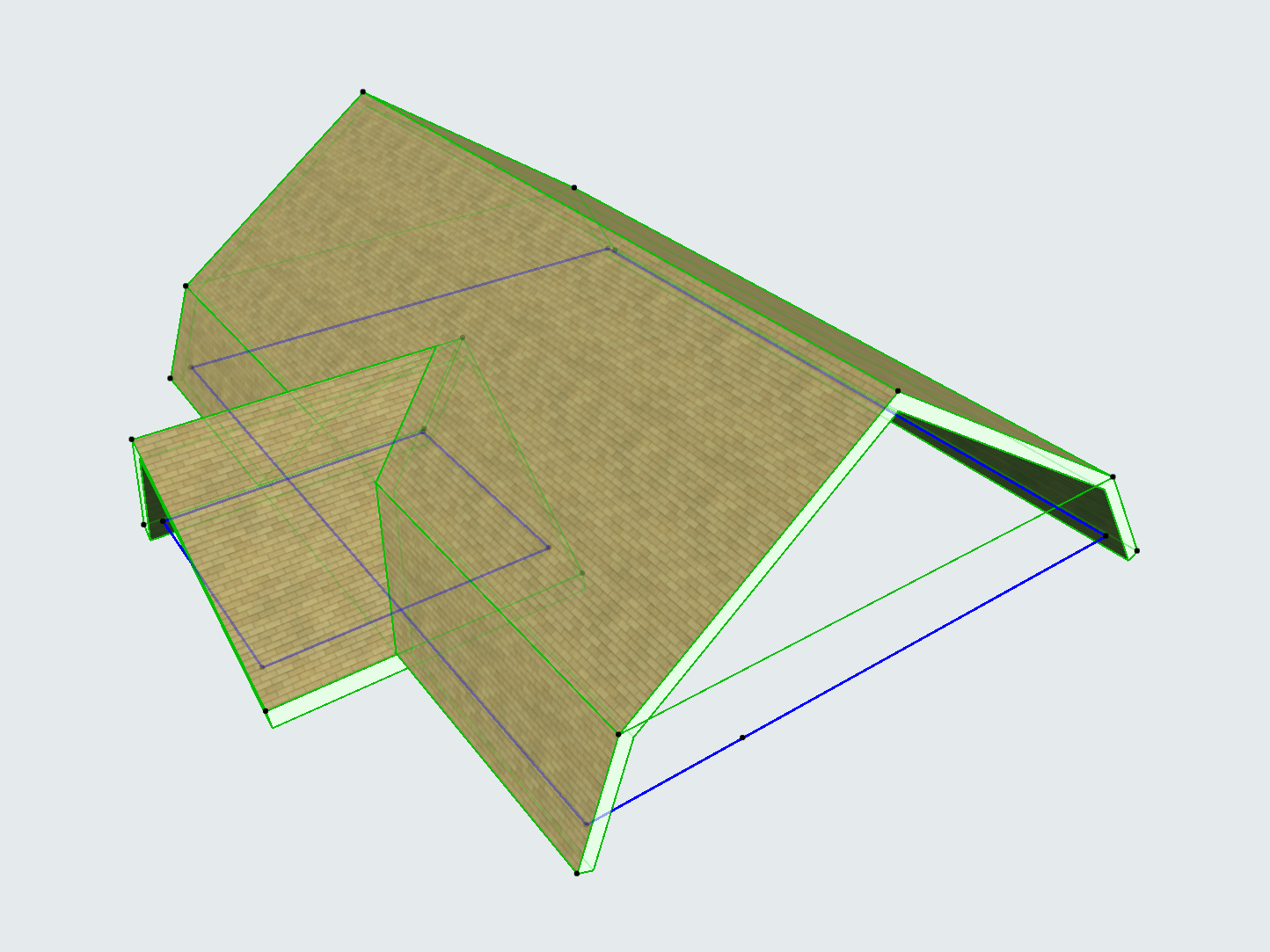

- Select both roof systems and right-click and select Connect > Trim elements to Roof/Shell. A prompt will pop-up in the process. Click Use Roofs/Shells from current selection then click Trim to close.
