Description
I want to dimension both the bottom and the top level of a slab, with one marker. Using the gravity tool, I can only choose either the top or the bottom, so I need to place two markers.
Solution
There are a few options to achieve the desired result
-

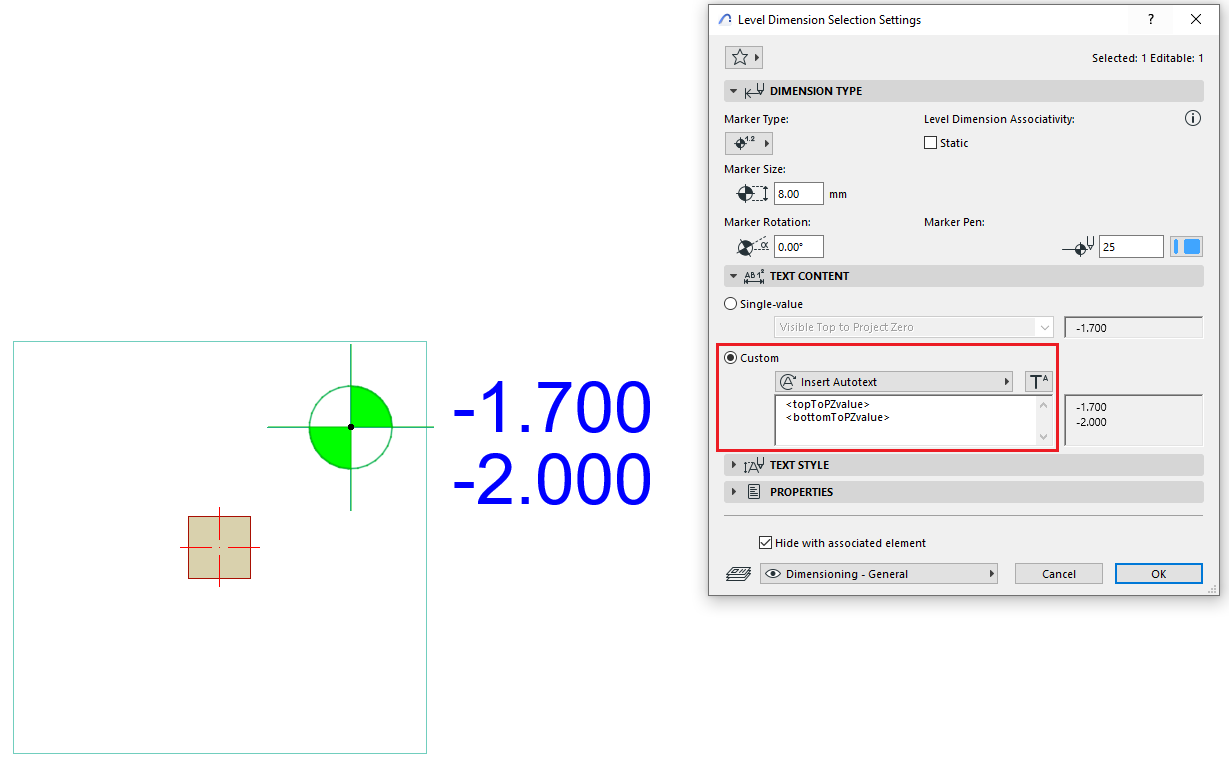

Custom/Autotext Level Dimension Tool
- Allows you to snap it to an object or element, displaying the level you input in the autotext. You can insert multiple autotext entries as required by your project.
- From a single Level Dimension Tool, open its Level Dimension Selection Settings then on the Text Content, insert a Custom value from the available selection inside.
-

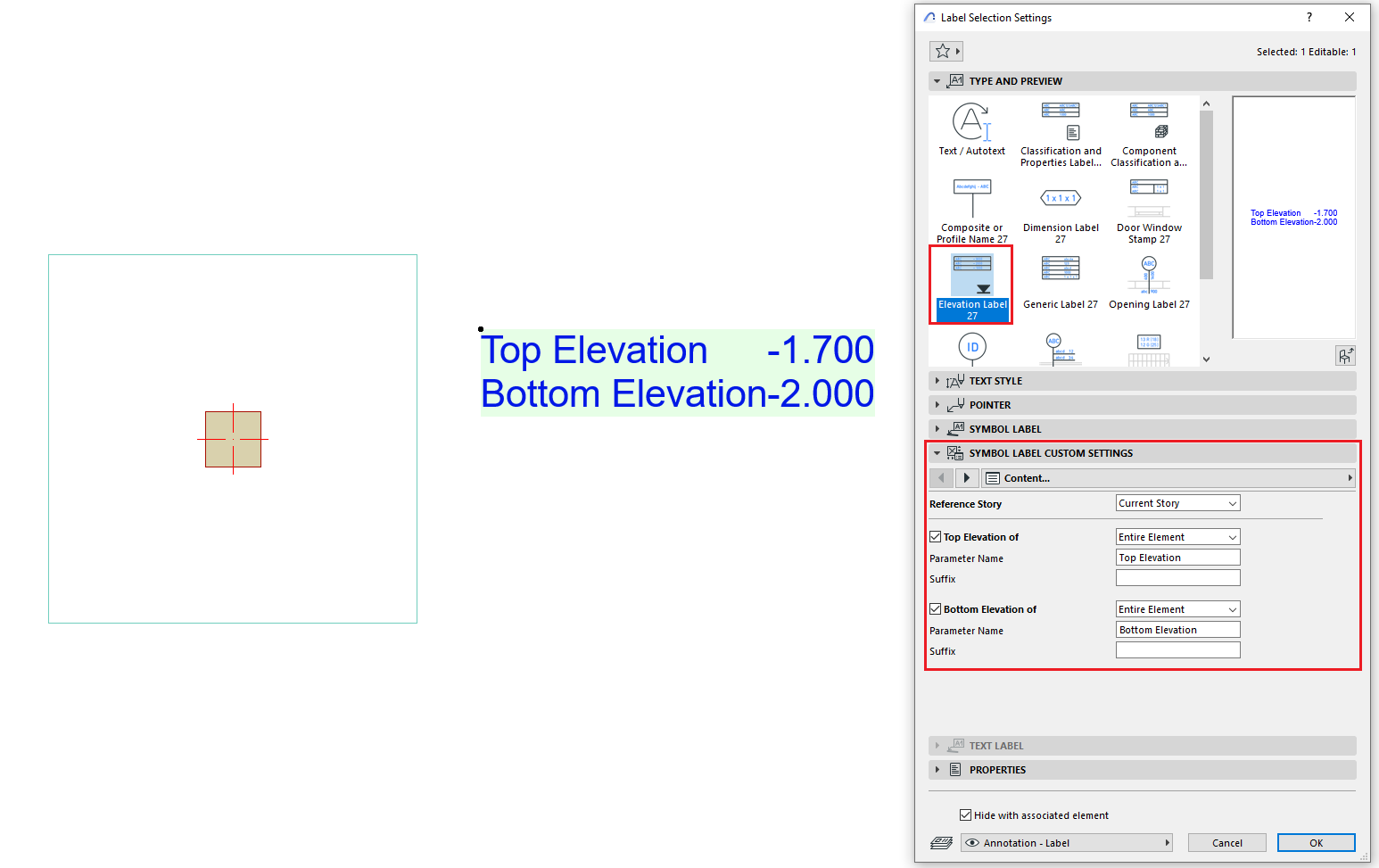

Symbol Label Tool
- Offers both default and customizable auto-text features. It provides a broader range of options and templates for customization compared to the Level Dimension tool.
- Click the Label Tool in the Toolbox then under the Label Default Settings tab, select Elevation Label 27 then click OK to close.
- You can also edit the Content information in the Symbol Label Custom Settings.
TIP: For additional information regarding the Label Tool Settings, please refer to this article Label Tool Settings (graphisoft.com)
