Description
I am working on a split-level residential house in Archicad. I need my Grid Elements to be displayed only on the Ground Floor and Roof Story. Is there a way to control which levels they appear?
Solution
You can control which Story a Grid Element will be displayed in the Grid Element Selection Settings.
- Select the Grid element you want to modify. Go to Grid Element Selection Settings.

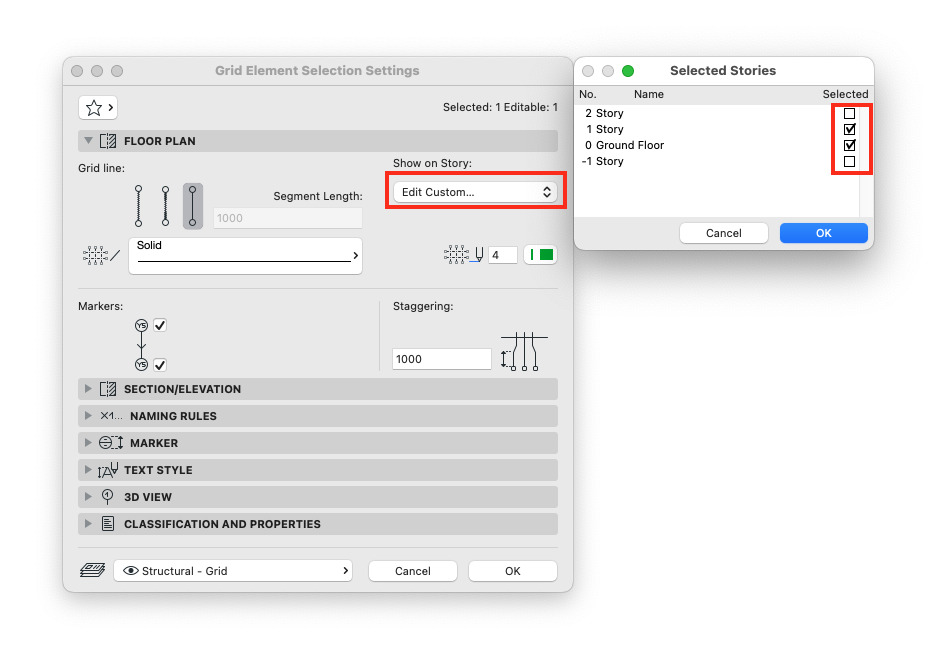

- On the Floor Plan tab, go to “Show on Story”. Modify the value based on your requirements. Click OK when finished.
By following these steps, you can effectively manage the visibility of Grid Elements across different levels in your Archicad project. This approach not only enhances the readability of your plans but also ensures that key structural details are highlighted where they matter most.
