Description
You have a split-level residential house modelled in Archicad. During documentation, you realize that one of the section markers should be displayed only on the Ground Floor. Is there a way to control which levels this section marker appears on?
Solution
You can control which Story a Section marker will be shown on the Section Settings.

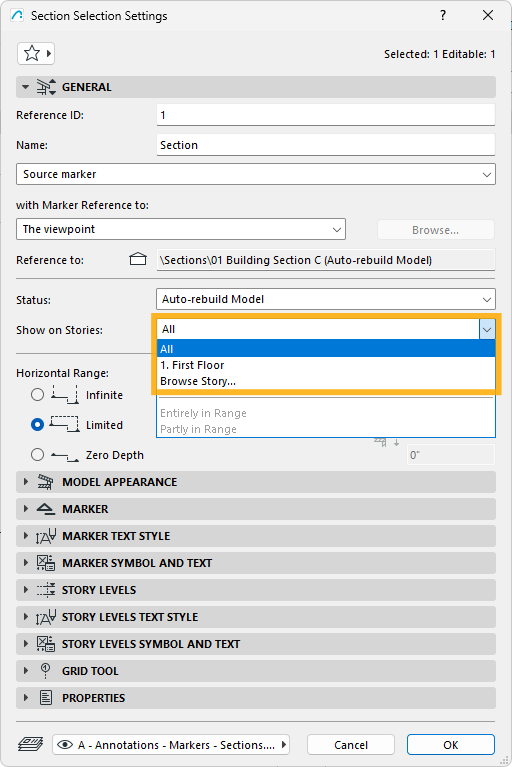

- Select the Section marker and go to Section Selection Settings. In the General tab, change the Show on Stories data. If the Vertical Range is Infinite the only available options are All or one story.

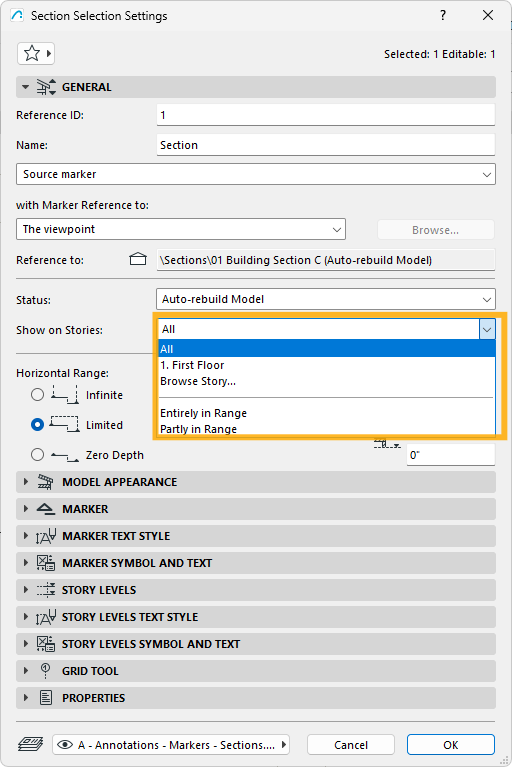

- If you set the Vertical Range to Limited, additional options become available: Entirely in Range and Partly in Range. These options allow the section marker to automatically appear on the floors within the defined vertical range.
