Description
I created a Section on a multi-story building project but I want it to display on only one floor. How can I adjust the vertical range of my section?
Solution

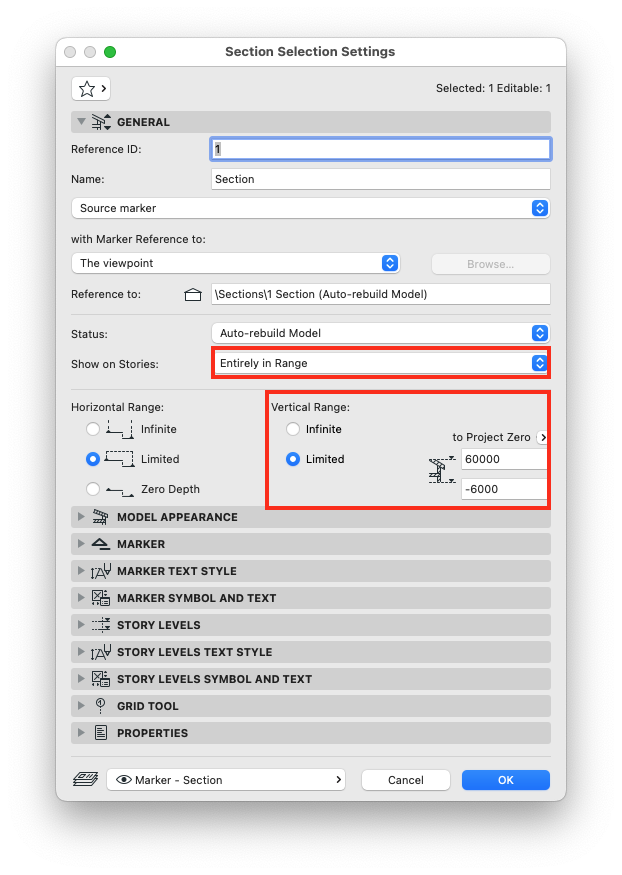

You can limit the vertical range of your Section in the Section Selection Settings. Under the General tab > Vertical Range, change the Infinite to Limited. Change the values of the height of the section plane by inputting the values here.

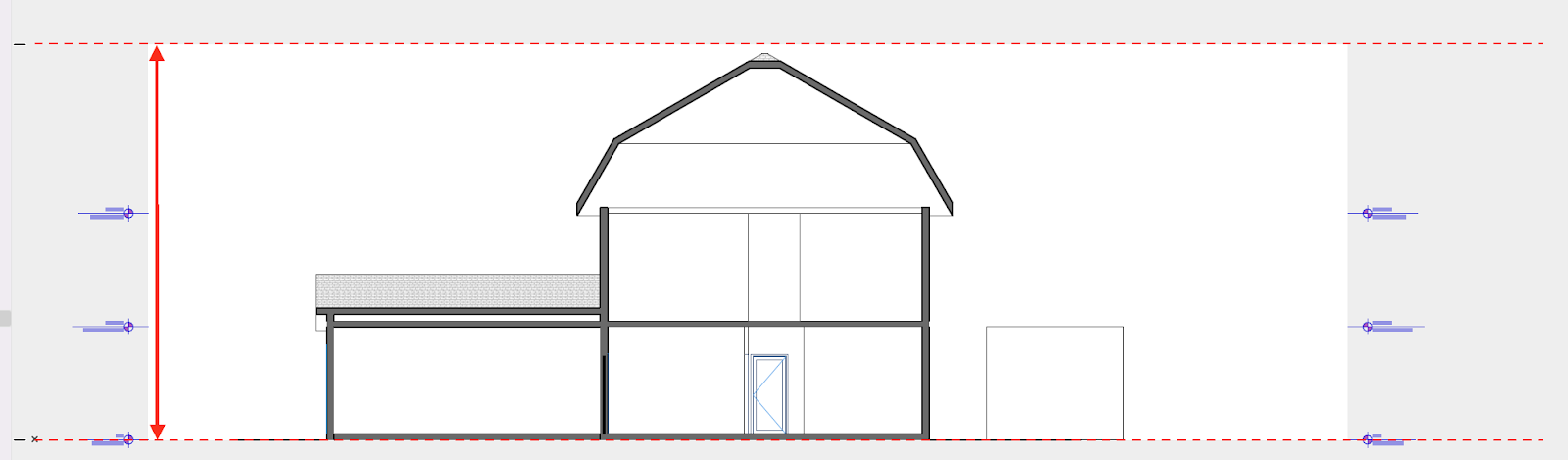

You can also manually adjust the height of the section plane once it is set to Limited. This is by opening the Section drawing then dragging the horizontal lines on the preferred vertical range, as shown in the image below.
