Turned skin does not show in 3D

Issue Description

I have enabled a turned plaster closure for a door. Why does the plaster skin appear in 2D but not in 3D views in Archicad?

Solution

Archicad gives you the option to show or not show this turned skin in 3D. To find the setting:

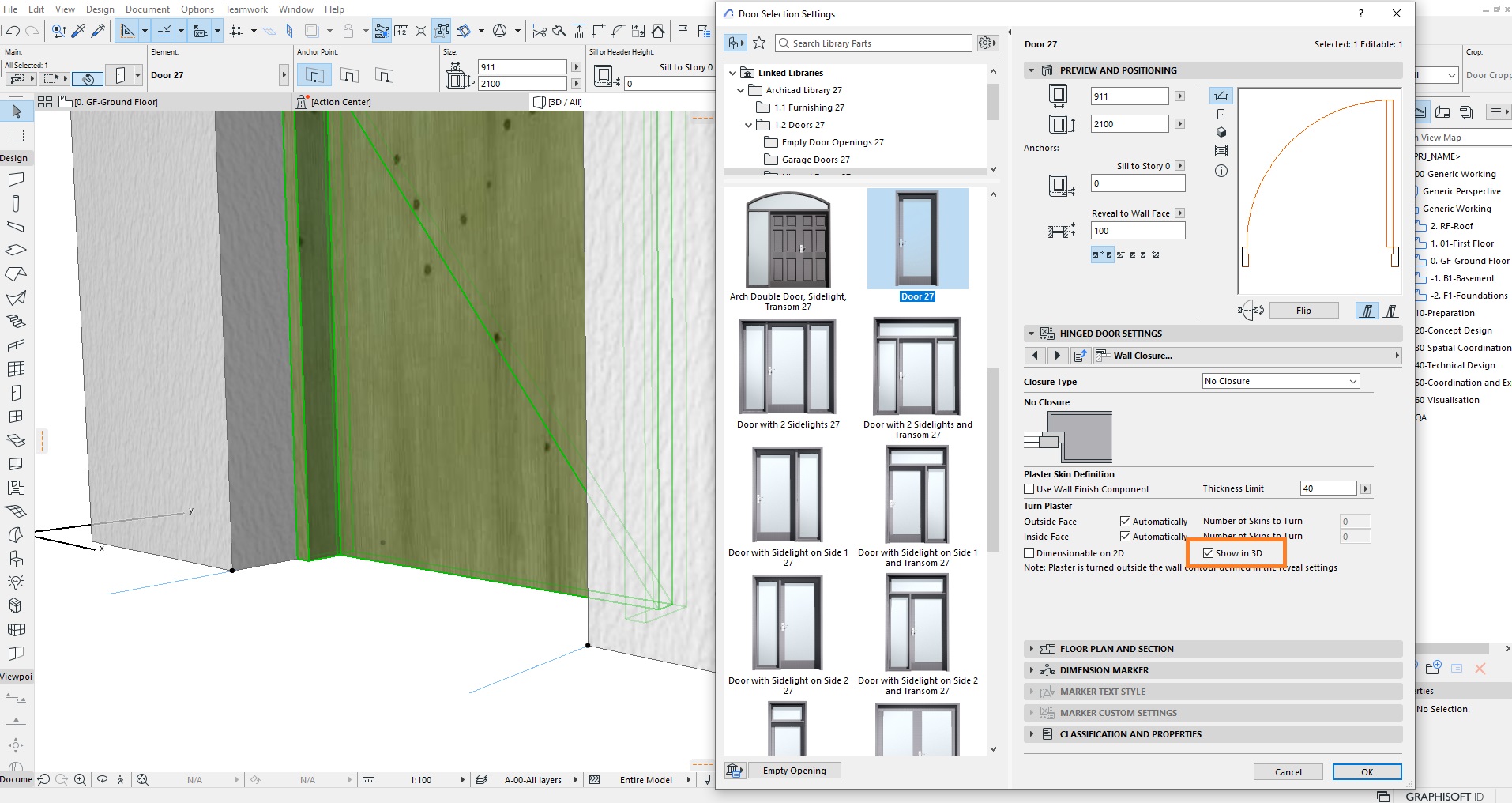

1. Select the door and open its selection settings dialog.
2. Go to the Wall Closures section.
3. Under Turn Plaster check the box labeled Show in 3D (or similar).
4. Click OK to confirm changes, then check your 3D window to verify the result.

Use the blue lines in the example below to compare the result when the setting is active vs inactive.

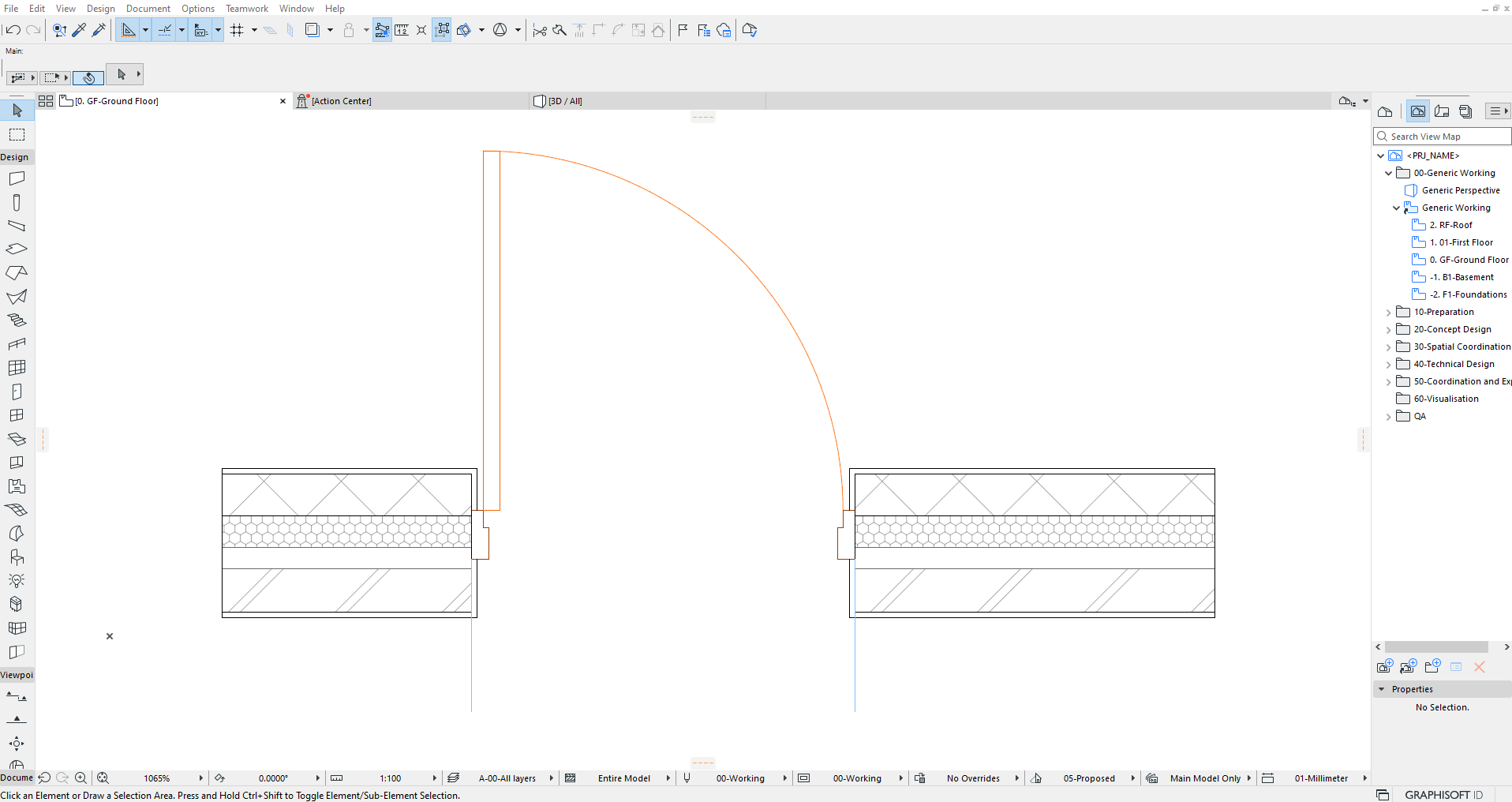

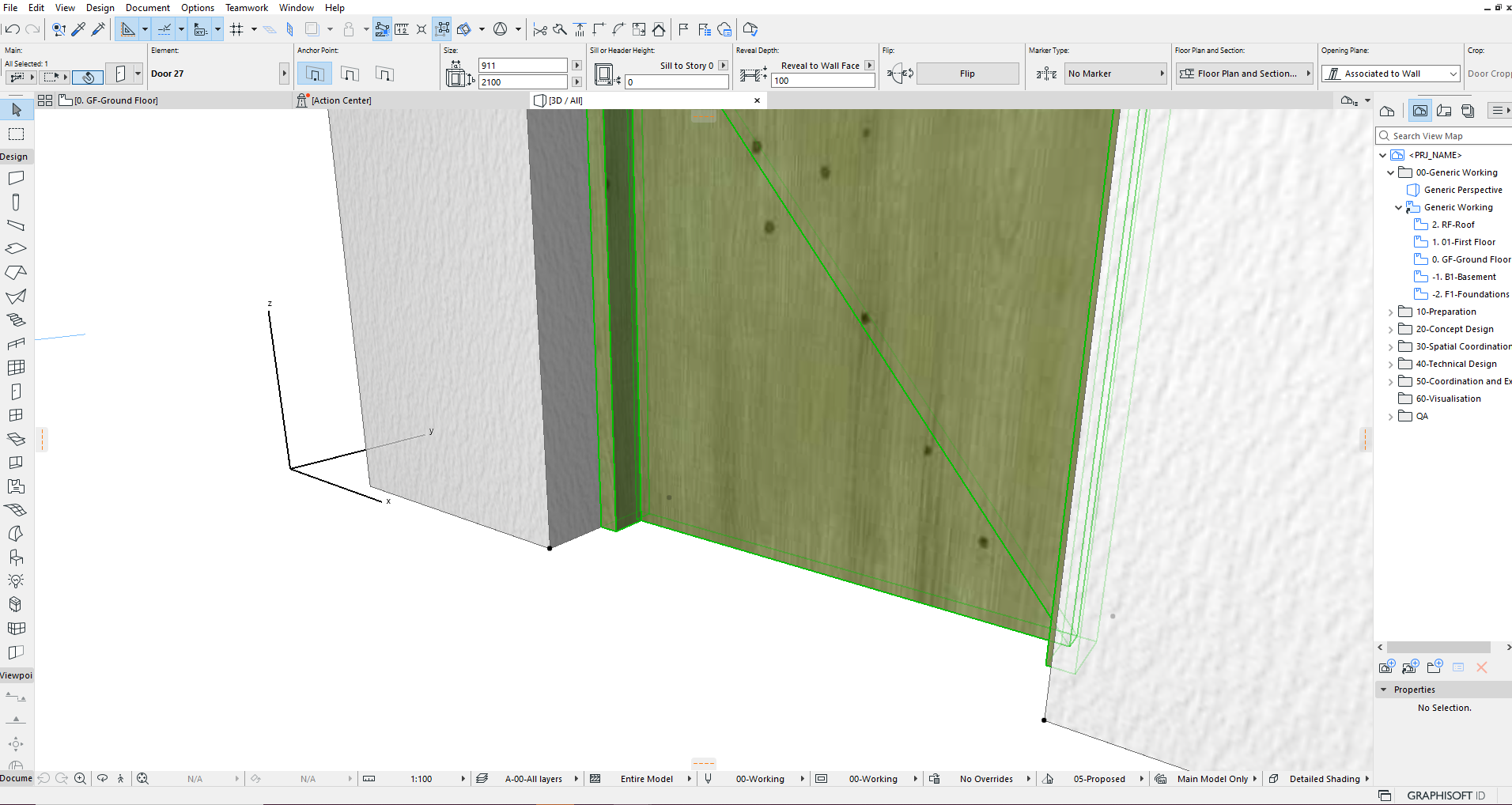

Inactive in 3D:

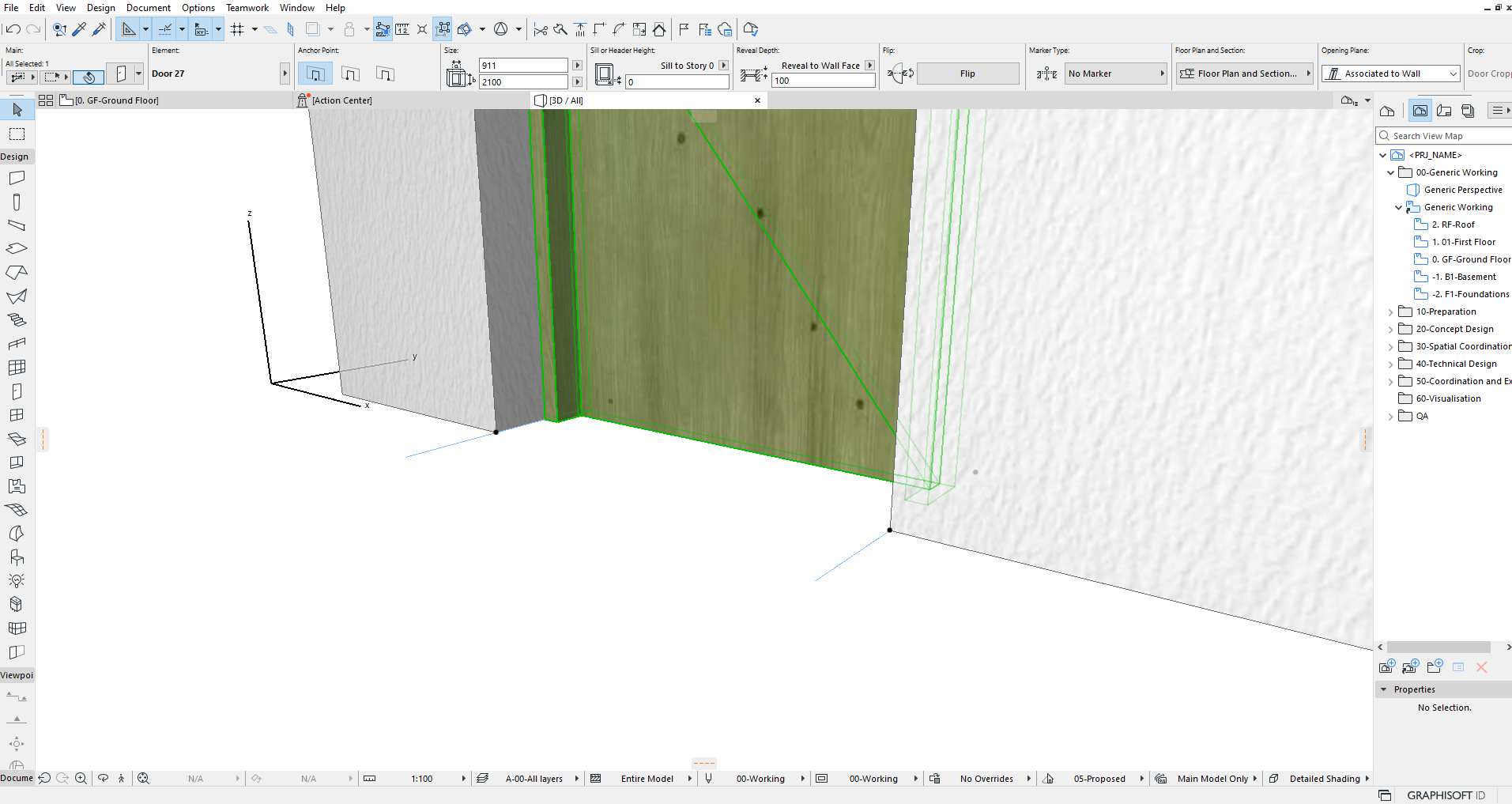

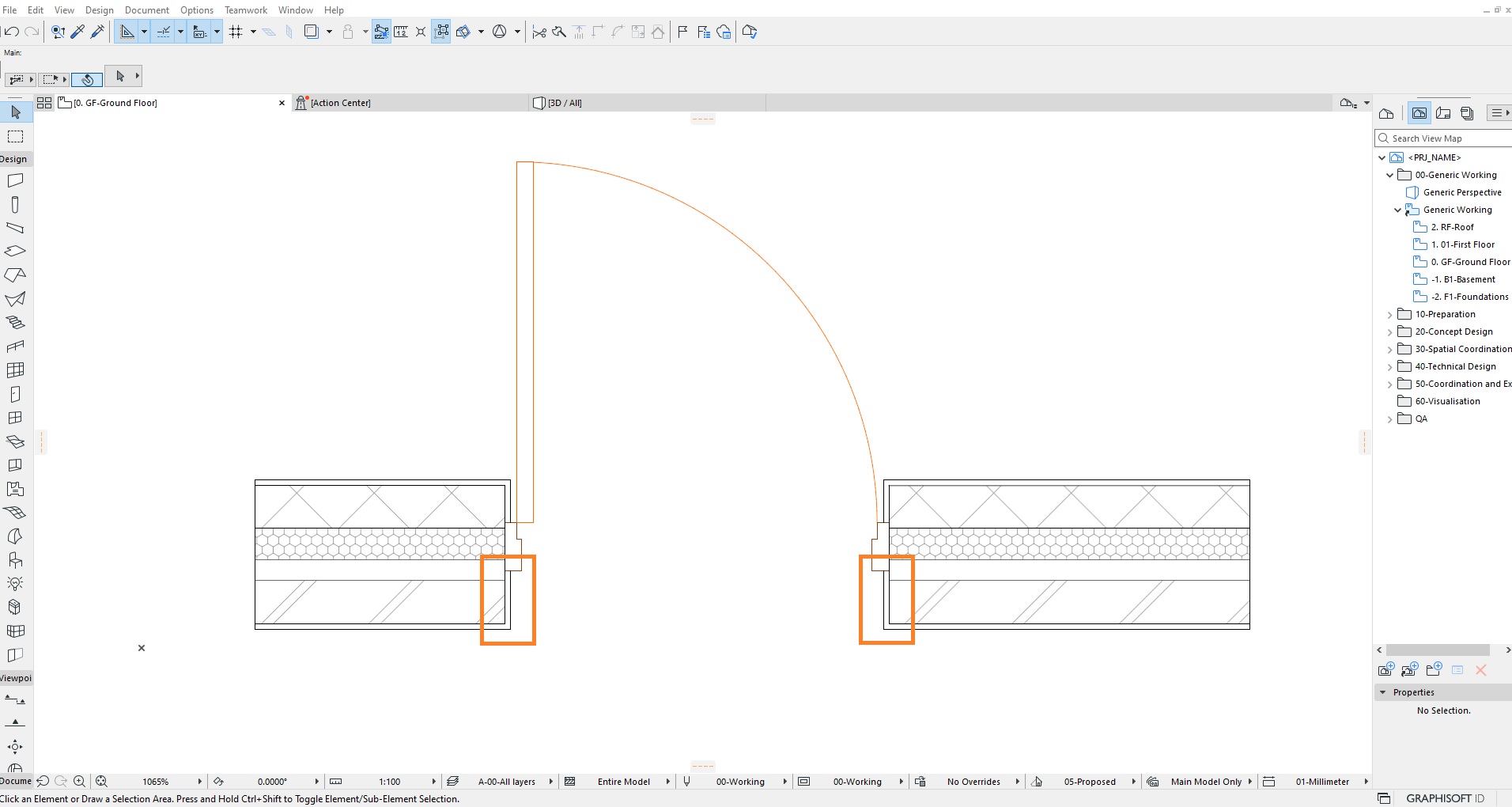

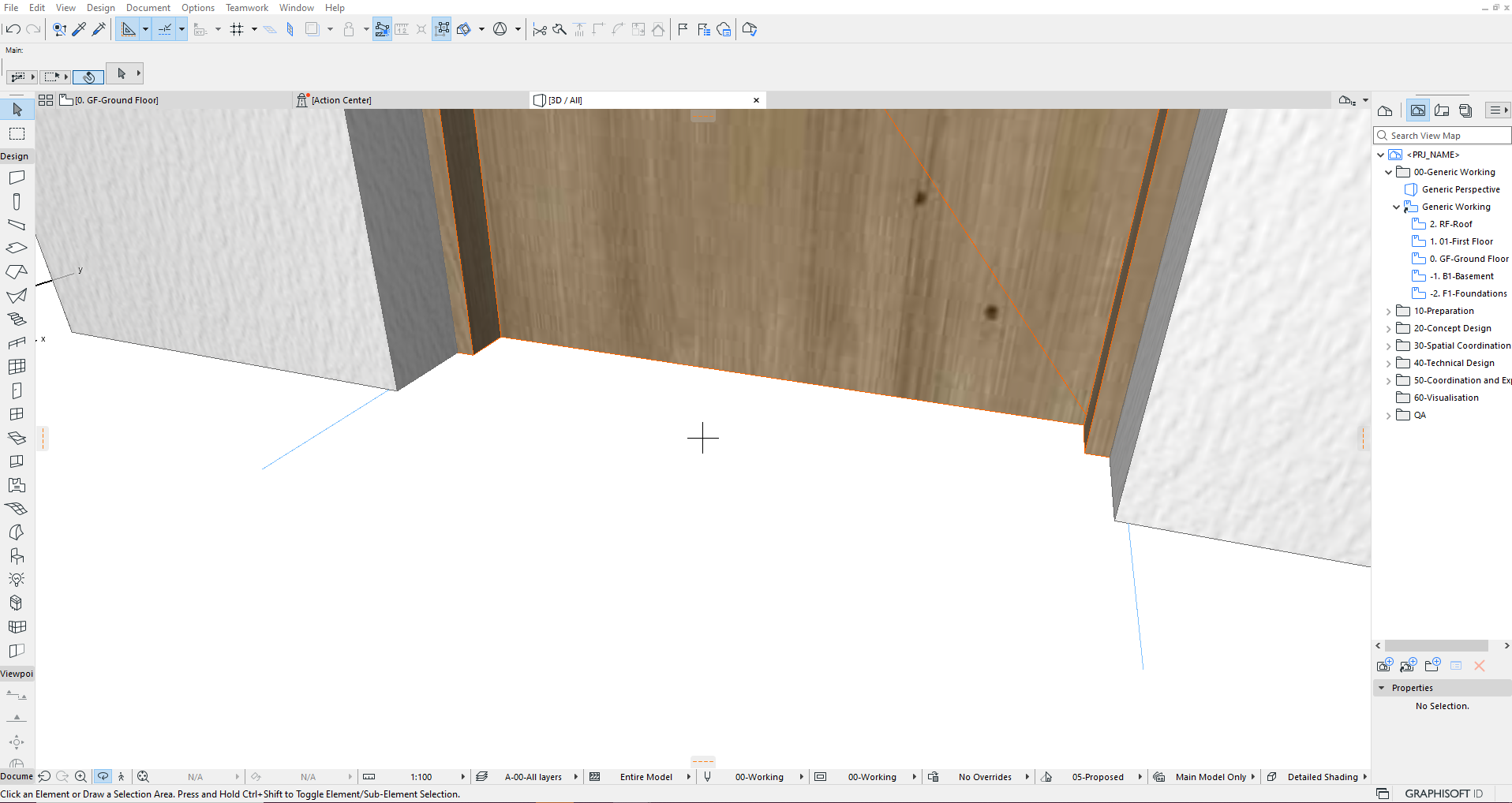

Visible in 3D:

TIP:  For further information on wall closures
